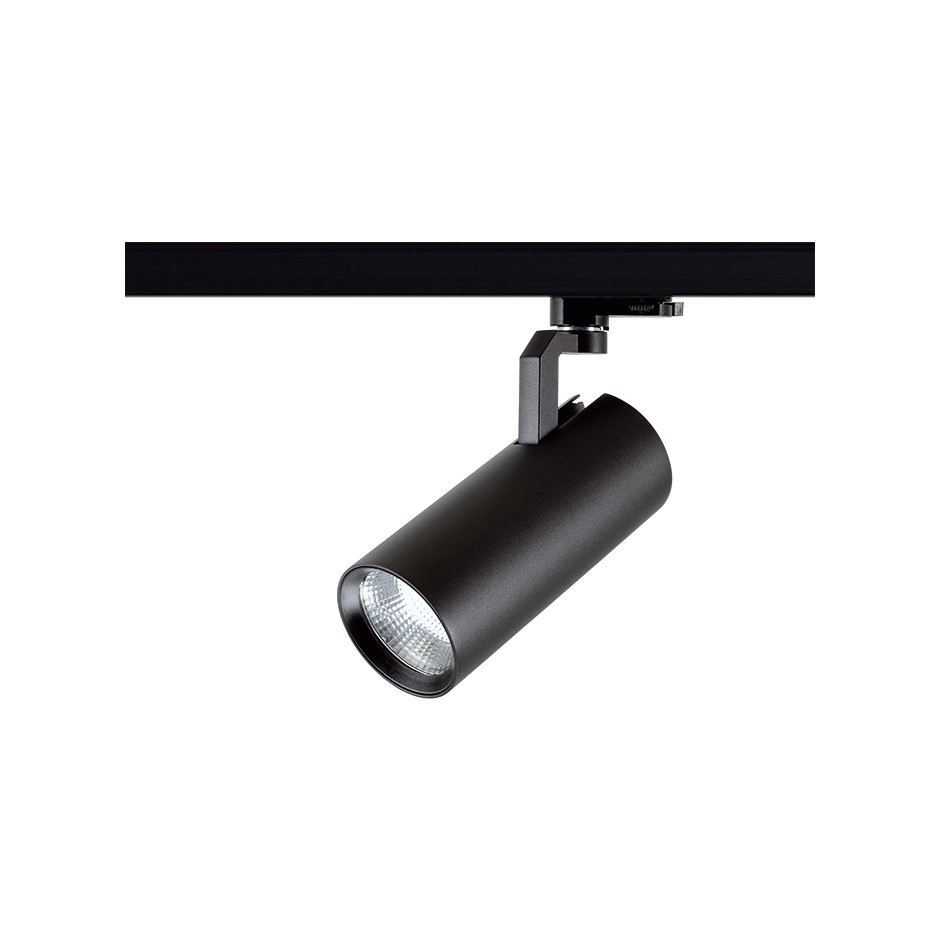

Spotlighttor 740.00 rail 4000K SWL Black CR90 perspective view

Ref
74000038-994

Spotlight 740.00 Rail 4000K SWL Black CR90

Price/Unit
Price on request
Discontinued
Packaging quantity
1 Unit

Available downloads

Technical specifications
74000038-994-datasheet-en.pdf
Do you need advice?
Outstanding Features
Series
Simon 740
Model
Spotlights
Range
740
Series Compatibility

Simon 740

<p class=>Spotlight 640.00 Rail WW Wide Flood White perspective view</p>
Ref
64000030-483
Spotlight 640.00 Rail WW Wide Flood White
<p class=>Spotlight 640.10 Flush mount WW CRI92 Wide Flood Black perspective view</p>
Ref
64010038-493
Spotlight 640.10 Flush mount WW CRI92 Wide Flood Black
Product Information
Support
Basic information

  • Lighting Description

    THIS VERSION IS ONLY AVAILABLE UPON REQUEST, PLEASE CONTACT OUR COMMERCIAL DELEGATES FOR DEADLINES INFORMATION . SIMON 740 projector, cylindrical with a diameter of 84mm. For installation on a three-phase rail, with LED technology formed by high-power LEDs with a 60 � angle Super Wide Flood optics, Body made of aluminum and painted in textured white. Electronic equipment incorporated in the luminaire, with ON-OFF control. Available lumens: 2620 lm / 3000K and 2670 lm / 4000K. With a total luminaire consumption of 30 W (actual system efficiency up to 89 lm / W). CRI> 80. Mains voltage 220-240 VAC. Luminous maintenance L70> 30,000 h at 25�C. Luminaire dimensions: � = 84mm; height = 181mm. IP20. Weight of the luminaire 1.0 Kg. Photobiological Safety: Exempt group. CE marked.

  • Model

    Spotlights

  • Range

    740

  • Application

    Accent lighting , General lighting

Technical information

  • IP Rating

    IP20

Lighting Information

  • CRI

    80

  • Colour temperature (k)

    4000 K

  • Colour type

    Neutral

  • L70 (ºC)

    30.000 h a 25�C

  • Light beam aperture angle (ºC)

    60º

  • Lighting efficiency (lm/w)

    76 lm/W

  • Lúmenes (lm)

    2280 lm

  • Optics

    Super Wide Flood

  • Photobiological classification

    Exempt category

  • Power (W)

    30 W

  • Service life

    30.000 h

Installation and maintenance

  • Installation type

    Rail

Logistics Information

  • Product net weight

    0KGM

  • Product gross weight

    0KGM

  • Packaging quantity

    1

  • Packaging height

    0MMT

  • Packaging width

    0MMT

  • Packaging length

    0MMT

  • Packaging volume

    0MMQ

  • Packaging net weight

    0KGM

  • Packaging gross weight

    0KGM

  • Packaging EAN

    8421053264348
