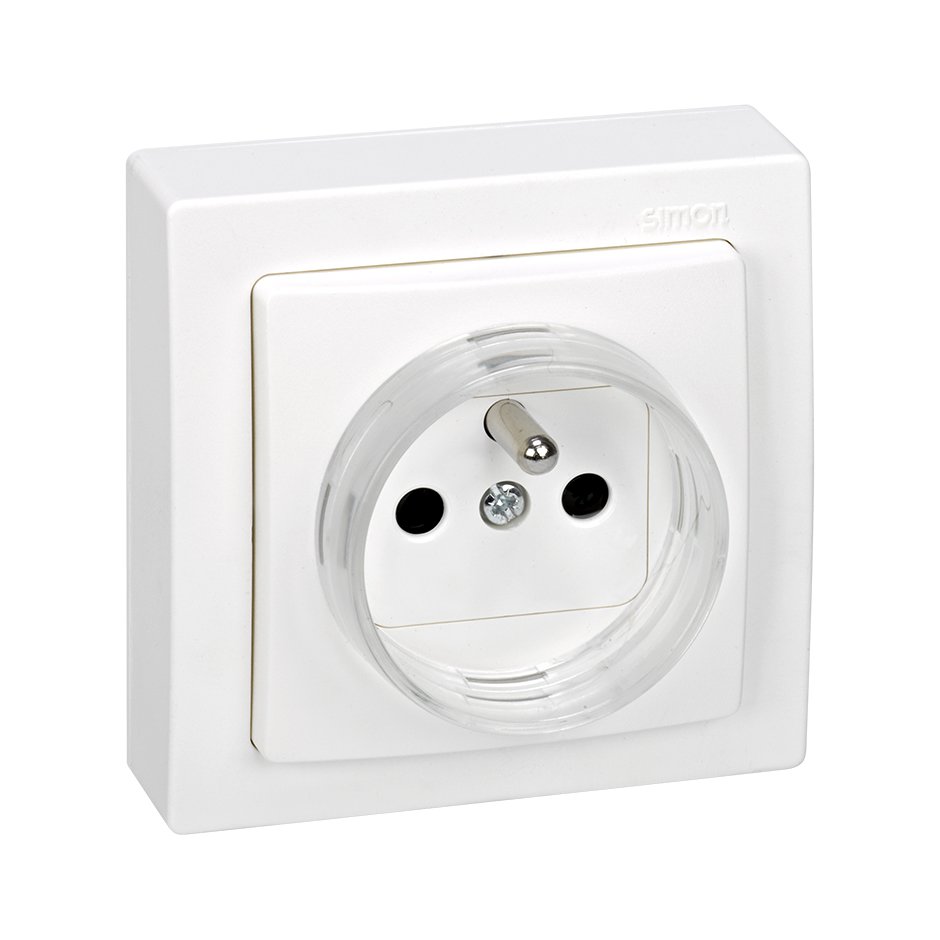

This image represents the combined solution of different references

Ref
73458-39

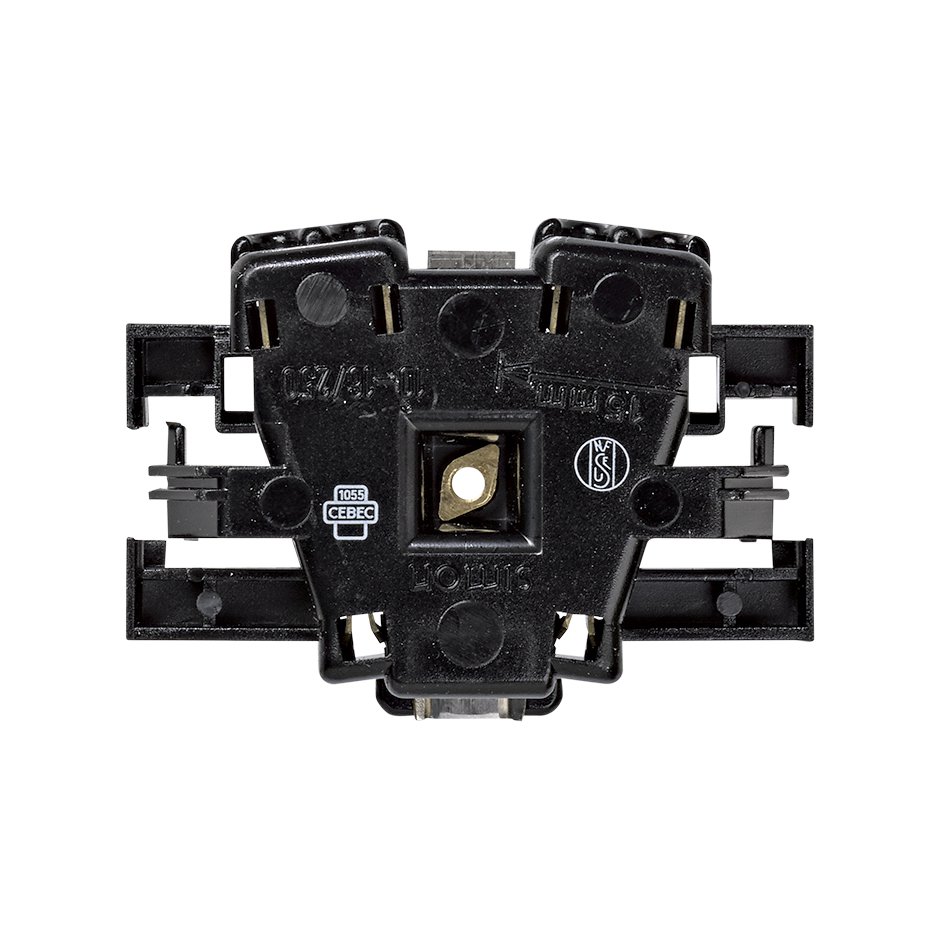

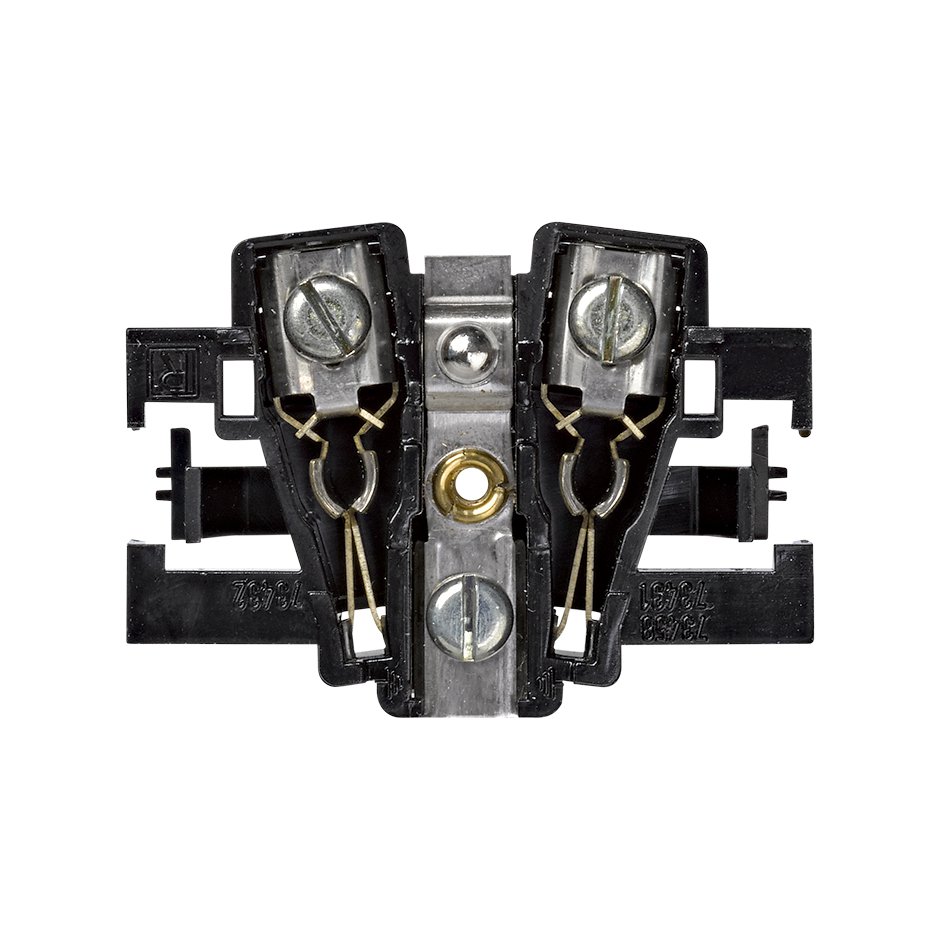

French socket outlet 16A 250V~ with screw terminal connection system Simon 73

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
Product declaration
Outstanding Features
Series
Simon 73 Loft
Series Compatibility

Simon 73 Loft

The maximum adaptability and the maximum versatility come together in this Simon series, the Simon 73 Loft series, designed to installations of trunking and surface-mounted. All the products in this series facilitate a quick assembly and secure installation, in addition to the corresponding appearance that Simon always takes care of. And, of course, a wide range of functions of all kinds to surface-mounted.

This French socket outlet, which has a resistance to elements of up to 16 Amps and 250 Volts, with screw terminal connection and always, the covers include the child protection function, an extra security against tampering of children and that will bring the peace of mind that you need when your children are moved freely by the rooms of your home.

The wire cross-section is 2.5 millimetres, something which must be taken into account before purchasing the product (stripping of wire 15 millimetres). In its manufacture are tapped the best metal components with thermoplastic insulation and halogen-free.

Basic information
  • Compatibility

    Simon 73 Loft and Simon 73 frames

  • Remarks

    The covers include a child-proof protective feature.

  • Packaging contents

    Socket outlet

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    French

  • Intensity (A)

    16 A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    15

  • Installation type

    Suitable for surface mounting

  • Type of terminal connection

    Screw

Regulation
  • Regulations

    No aplica

Logistics Information
  • Product volume

    1201200MMQ

  • Product net weight

    0.033KGM

  • Product gross weight

    0.033KGM

  • Packaging quantity

    10

  • Packaging height

    52MMT

  • Packaging width

    105MMT

  • Packaging length

    220MMT

  • Packaging volume

    1201200MMQ

  • Packaging net weight

    0.33KGM

  • Packaging gross weight

    0.325KGM

  • Packaging EAN

    8421053039205
