Ref
73431-53

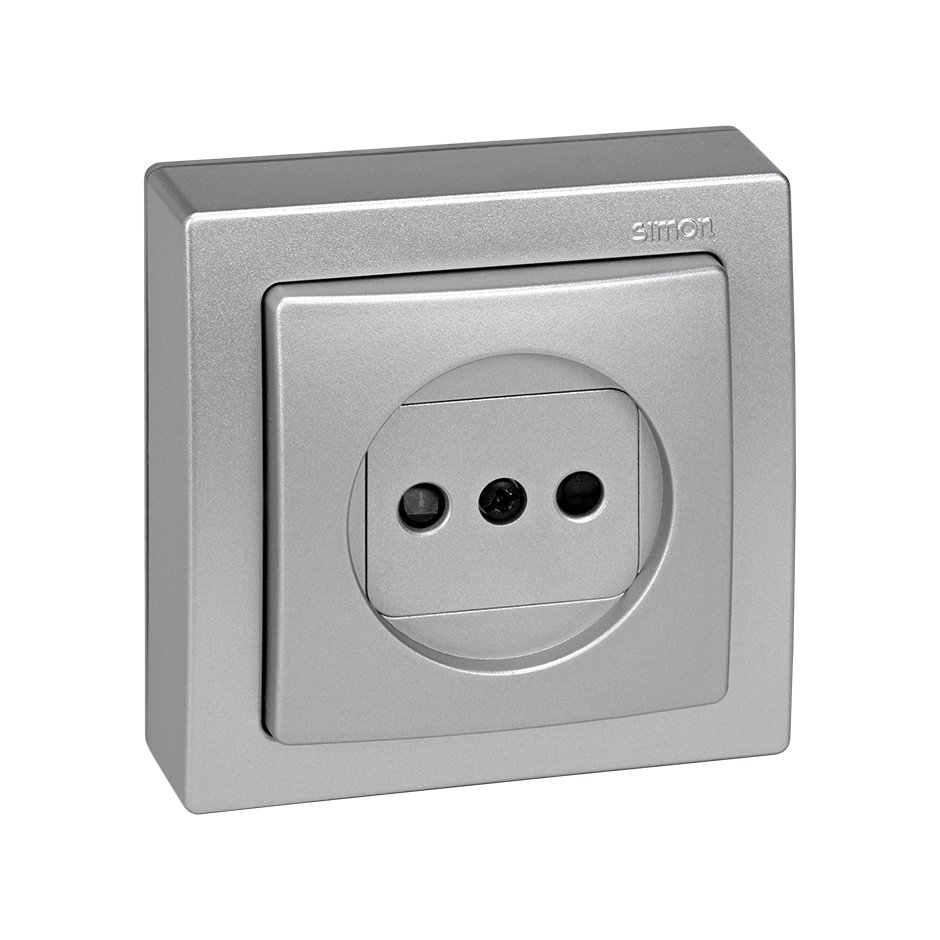

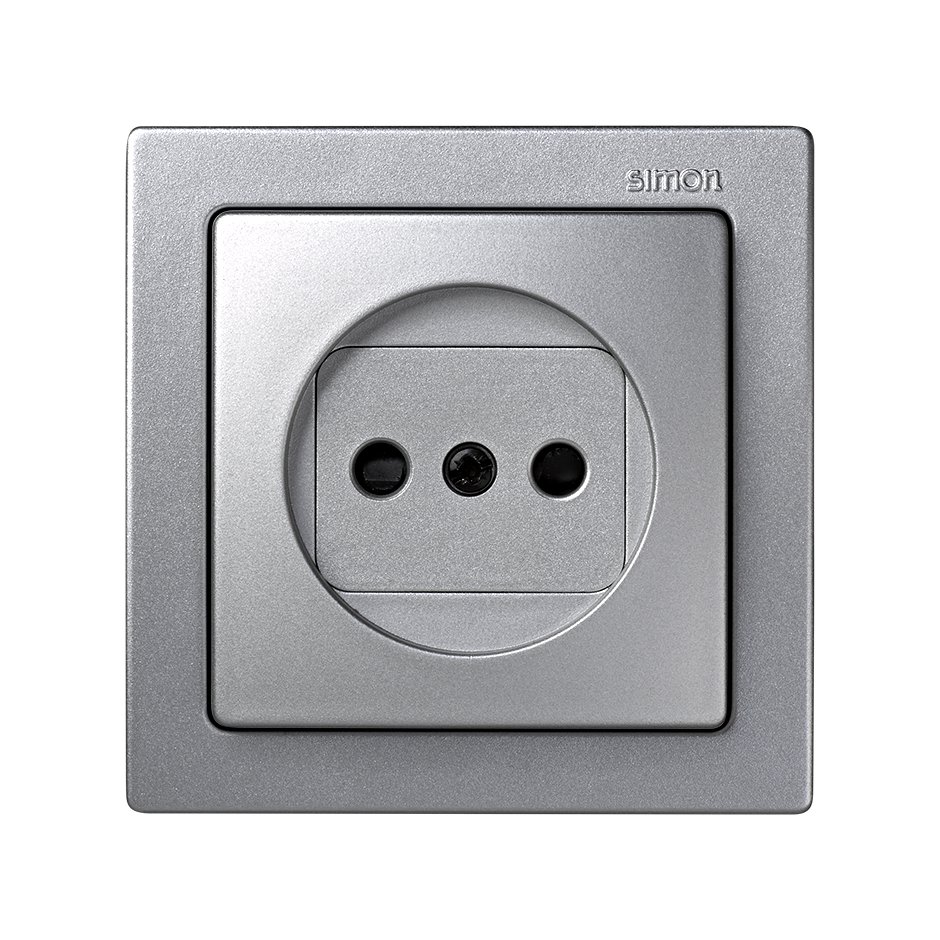

two-pole socket outlet monoblock 16A 250V~ with safety device and screw terminal connection aluminium Simon 73 Loft

Price/Unit
€21.97
Packaging quantity
5 Units

Available downloads

Data sheet

73431-53.pdf

Installation manual
Outstanding Features
Series
Simon 73 Loft
Series Compatibility

Simon 73 Loft

Product Information

Simon 73 Loft series includes within its mechanisms, the system for two-pole socket plug with monoblock and safety device. With a single element in its individual version and an aluminium finish, its reference is 73431-53.

The rocker operation system is screwed and its operation is by insertion.

The wire cross-section is 2.5mm and the stripping of wire necessary of 15mm.

It measures 75x75mm.

It is manufactured with several metal components with a halogen-free insulation. It incorporates a trim made of thermoplastic.

Basic information
  • Finish

    Aluminium

  • Packaging contents

    Socket outlet with cover and frame

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    Two-pole

  • Intensity (A)

    16 A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    15 mm

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    No aplica

Logistics Information
  • Product net weight

    0.088 KGM

  • Product gross weight

    0.088 KGM

  • Packaging quantity

    5

  • Packaging height

    82 MMT

  • Packaging width

    83 MMT

  • Packaging length

    230 MMT

  • Packaging volume

    1.565 DMQ

  • Packaging net weight

    0.44 KGM

  • Packaging gross weight

    0.44 KGM

  • Packaging EAN

    8421053068366
