Ref
73431-50

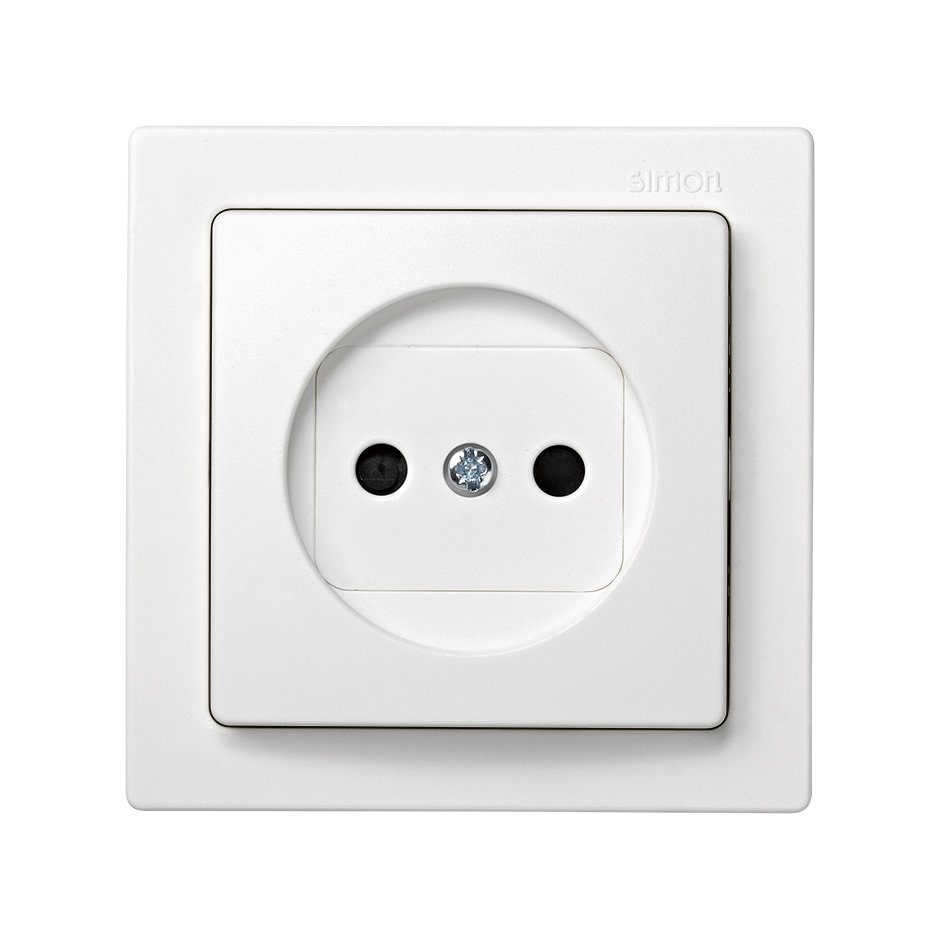

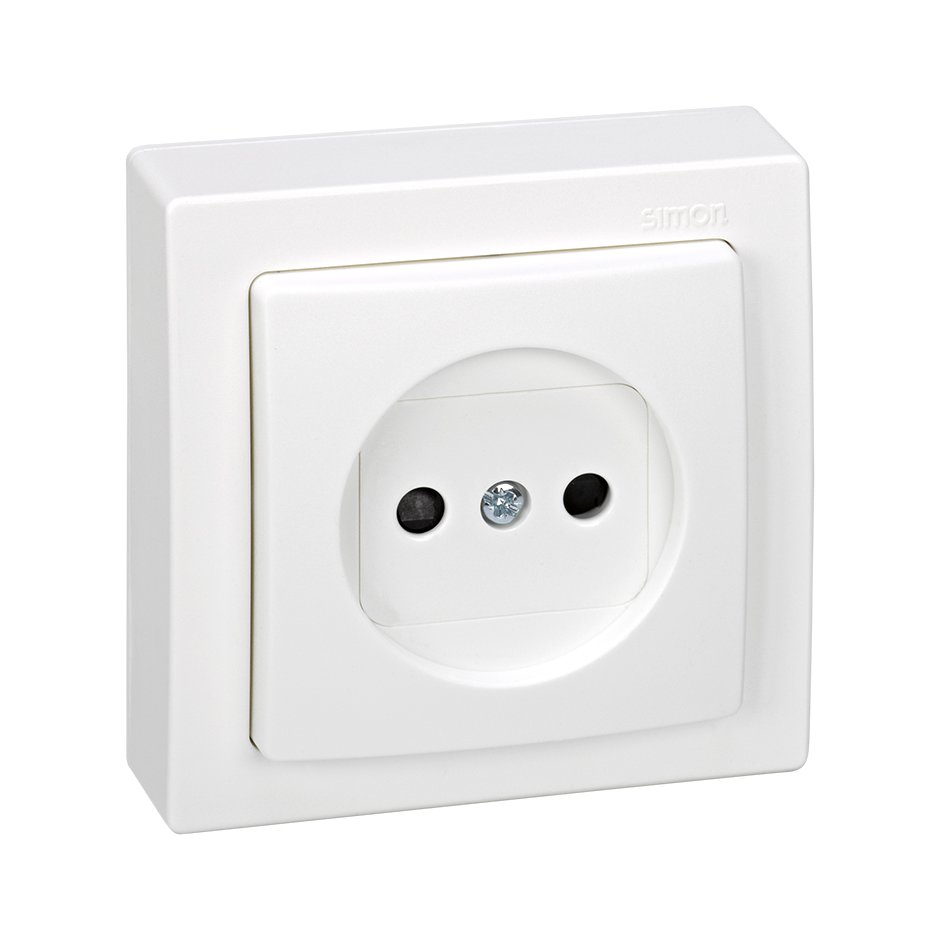

Two-pole socket outlet monoblock 16A 250V~ with safety device and screw terminal connection white Simon 73 Loft

Price/Unit
€9.22
Packaging quantity
10 Units

Available downloads

Data sheet

73431-50.pdf

Installation manual
Outstanding Features
Series
Simon 73 Loft
Series Compatibility

Simon 73 Loft

Product Information

With safety device, the Socket-outlet monoblock two-pole with current 16 A, a voltage of 250V~ and screw terminal connection in white colour of the Simon 73 Loft series is one of the safest. This range is characterized by perform sockets with the highest quality. For this reason, this element is ideal to be installed in agencies where there are minors such as homes personal, educational centres or rooms, namely children in hospitals.

This socket outlet has been designed with metal components with halogen-free insulation and thermoplastic trims, its dimensions are, 75x75 mm, has a wire 2.5 mm and supports a stripped wire 15 mm A clean and soft dry cloth is sufficient to prevent the deterioration of the structure of the same over time and extreme temperatures.

Basic information
  • Finish

    White

  • Packaging contents

    Socket outlet with cover and frame

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    Two-pole

  • Intensity (A)

    16 A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    15 mm

  • Installation direction

    Vertical and horizontal

  • Installation type

    Suitable for surface mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    No aplica

Logistics Information
  • Product net weight

    0.087 KGM

  • Product gross weight

    0.087 KGM

  • Packaging quantity

    10

  • Packaging height

    82 MMT

  • Packaging width

    165 MMT

  • Packaging length

    230 MMT

  • Packaging volume

    3111900 MMQ

  • Packaging net weight

    0.87 KGM

  • Packaging gross weight

    0.87 KGM

  • Packaging EAN

    8421053061893
