Ref
72661033-684

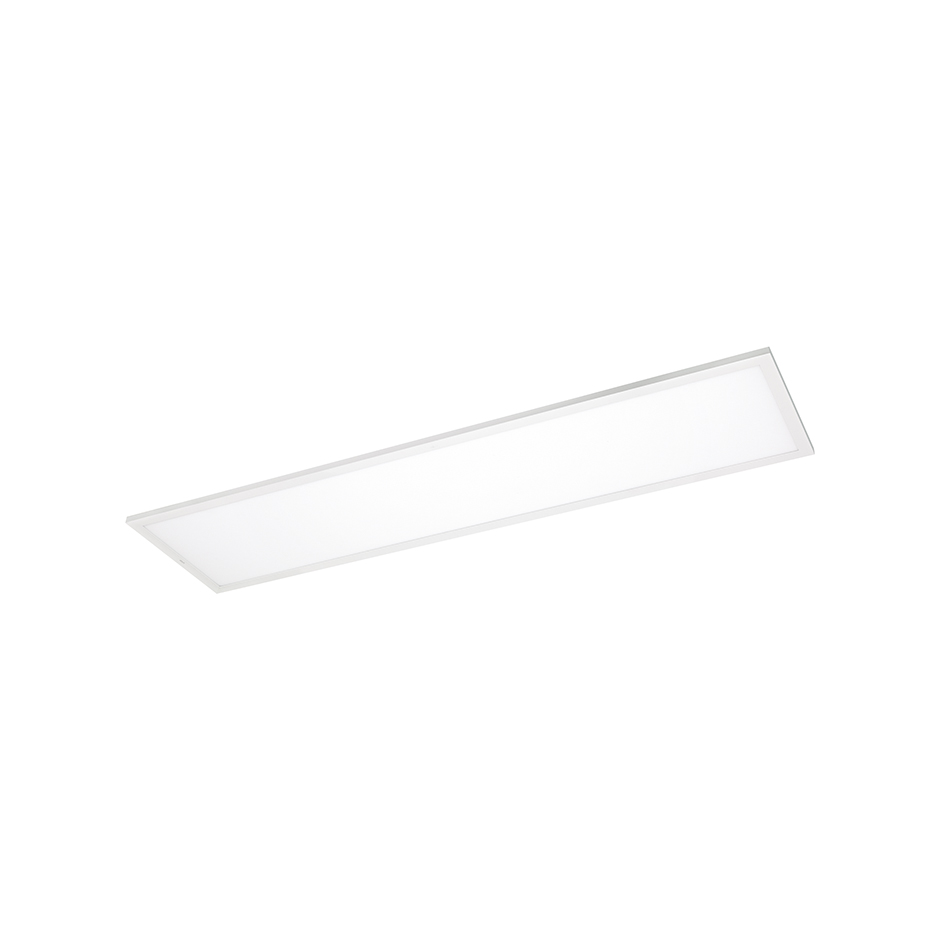

Modular luminaire 726 120x30 Low Glare NW
Price/Unit
€110.88
Descatalogado
Packaging quantity
1 Unit
Outstanding Features
Series
Simon 726
Model
Modular luminaires
Range
726
Series Compatibility
Simon 726
Product Information
In the series Simon 726 modular luminaires, it is possible to access a large catalogue of products, specific for indoor lighting of the highest quality. This is the luminaire 726 modular 120 x 30 LowGlare, with lights leds tone (NW) .su neutral colour temperature of 4000 K and has 3200 lumens with a power of 39 W
The luminaire optics of this Simon category B is microprismatic. It is presented in a finished in aluminium colour, which gives it an appearance, ideal to be properly in any decoration. Its power supply is 220-240 V and its frequency is 50 / 60 Hz.
The luminaire Simon measures 1195-295 millimetres and its weight is 2,6 kilos. The installation you in false ceiling, with the hardware. The electric control of this product is committed to the simple system of ON-OFF.
Basic information
-
Lighting Description
SIMON rectangular modular luminaire 726, 1195x295 mm, for installation in false ceiling, visible hardware, with LED technology, consisting of multiple low-power LEDs, with Microprismatic photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear built into the luminaire, with ON/OFF control, insulated from the optical body and the heat generated by it. Lumens available 3200 lm for NW and total luminaire consumption of 39 W (actual system efficiency of 82 lm/W). CRI>80. Can also be installed in plaster ceiling, surface-mounted, concealed or semi-concealed profile using an accessory. Mains voltage 100-240V 50/60Hz. Lumen maintenance L70 >30,000 h at 25° and L90>. Luminaire dimensions: 1195x295x10 mm. IP20. Minimum installation height: . Luminaire weight 2.6 kg. Photobiological safety: Exempt group. CE marking.
-
Model
Modular luminaires
-
Range
726
-
Application
General lighting
-
Diffuser material
PMMA
-
Packaging contents
1 unit
Technical information
-
Frequency (Hz)
50 - 60 Hz
-
IP Rating
IP20
-
Operating temperature range (ºC)
-15 - 40 ºC
-
Power supply (V~)
220/240 V~
-
Dimensions (mm)
1195 x 295
-
Weight (kg)
2.6
Lighting Information
-
CRI
80
-
Colour temperature (k)
4000 K
-
Colour type
NW
-
Control
On/Off
-
Electrical class
Type 2
-
L70 (ºC)
30,000 h at 25 ºC
-
Light beam aperture angle (ºC)
90º
-
Lighting efficiency (lm/w)
82 lm/W
-
Lúmenes (lm)
3200 lm
-
Optics
Microprismatic
-
Photobiological classification
Exempt category
-
Power (W)
39 W
-
Service life
30.000 h
-

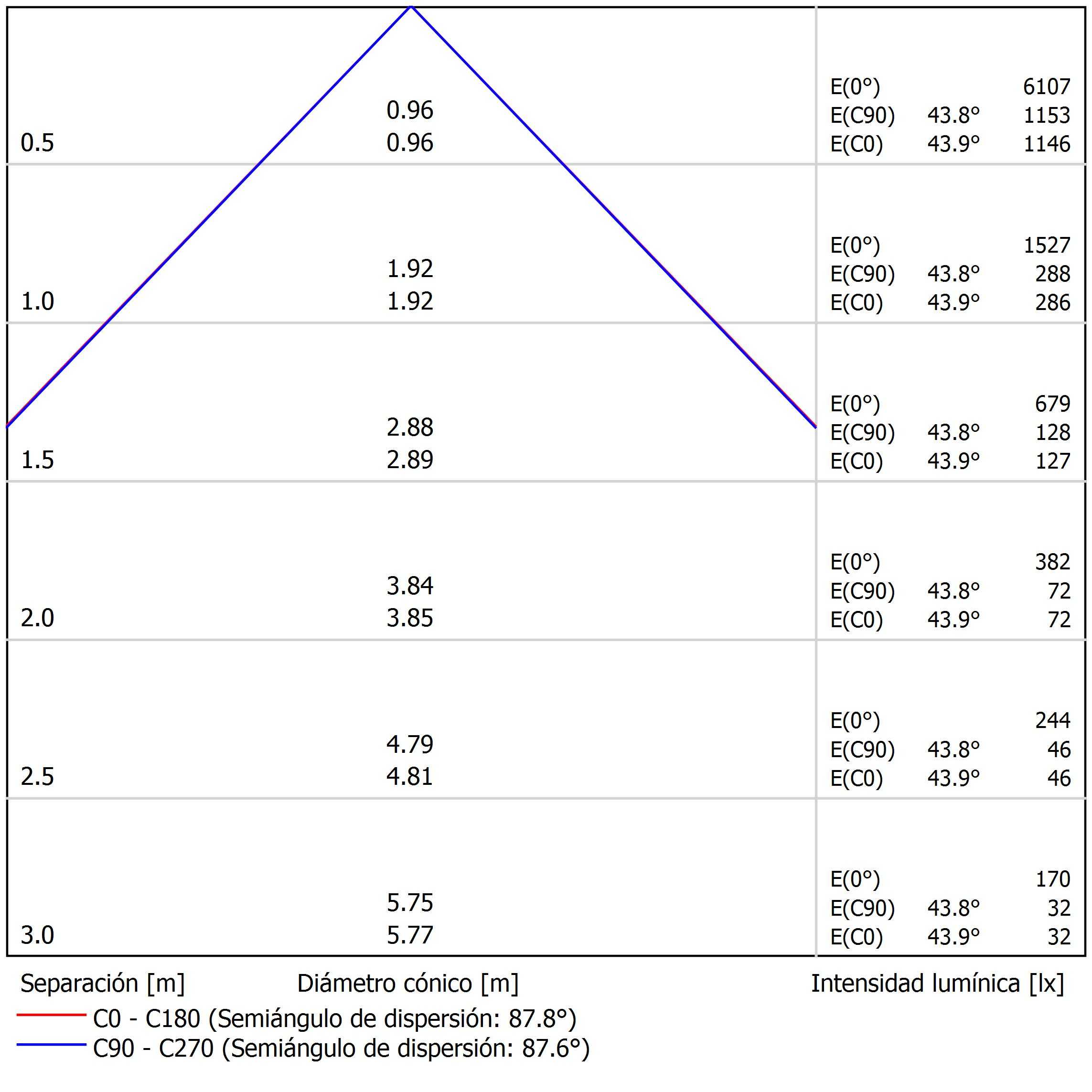

Photometry – Conical
-

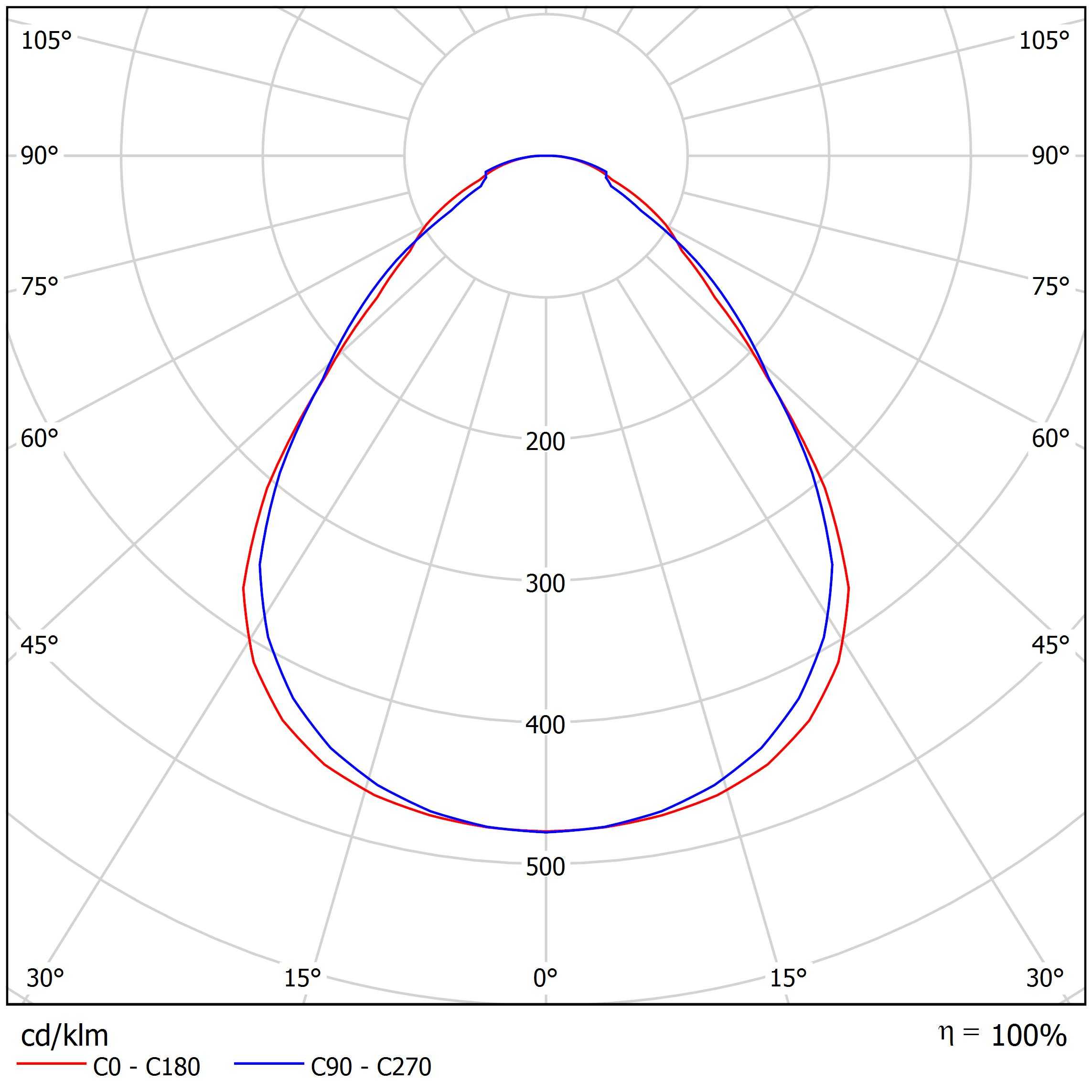

Photometry – Polar
Installation and maintenance
-
Installation alternatives
Plaster ceiling, surface mount, flush mount, concealed profile and suspended
-
Installation type
False ceiling, visible hardware
-
Minimum installation height
250 mm
-
Type of terminal connection
Screw
Regulation
-
Guarantee
3 years 30,000 h
Logistics Information
-
Product height
1281 MMT
-
Product width
40 MMT
-
Product length
350 MMT
-
Product volume
17.934 DMQ
-
Product net weight
2.1 KGM
-
Packaging quantity
1
-
Packaging height
1281 MMT
-
Packaging width
40 MMT
-
Packaging length
350 MMT
-
Packaging volume
17934000 MMQ
-
Packaging net weight
2.1 KGM
-
Packaging EAN
8421053194034
Installation manual
hi-luminaria-simon-726-modular-_2.pdf [1MB]
Product declaration
Photometry
72661033-684-photometry-1.ldt [1KB]
72661033-684-photometry.ldt [1KB]
