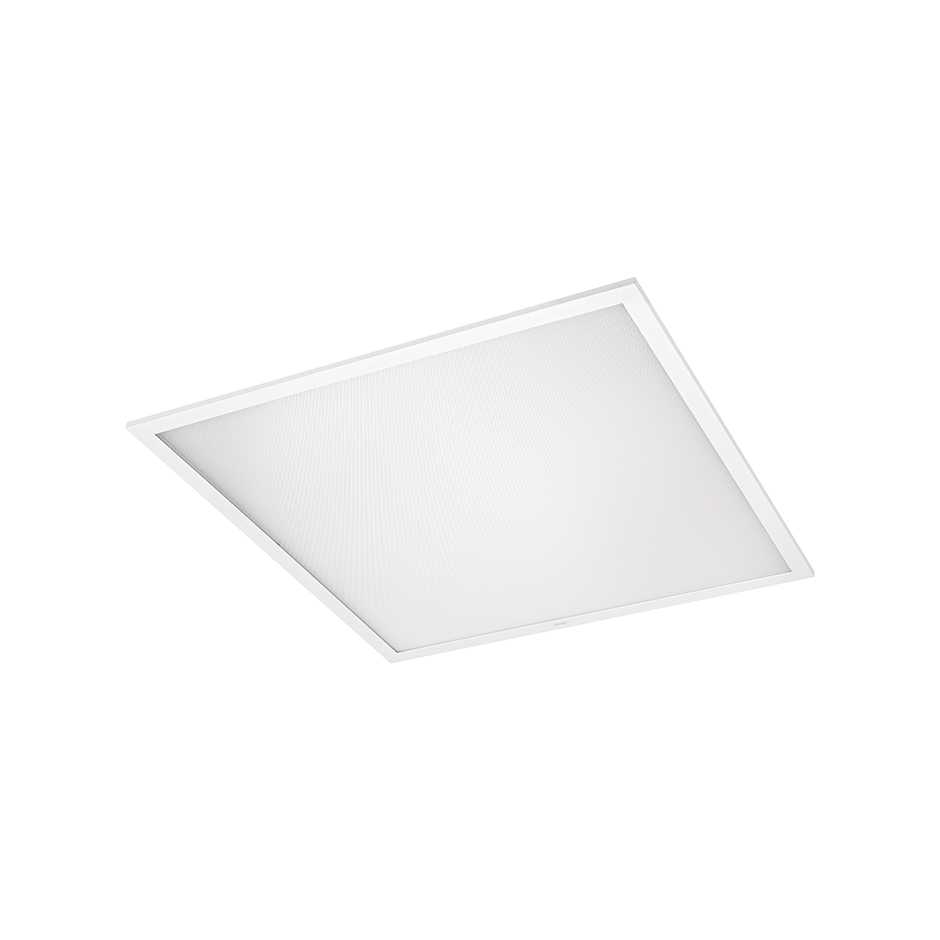

Modular luminaire 726 60x60 Low Glare WW DALI
Simon 726
Luminaire Modular 726 60 x 60 LowGlare. It is a product designed by the indoor lighting brand Simon. This luminaire has lights led in warm colour (WW) and its electrical control is DALI. It is presented in a perfect finish in aluminium colour, which makes it ideal for position, place in any space, achieving a indoor lighting of the highest quality.
The modular luminaire Simon is category B and has microprismatic optics. The temperature of the colour of the product is of 3000 K and has a total of 2900 lumens, for a power of his 39 W power supply is 100-240 V and its frequency is 50 / 60 Hz.
The dimensions of the luminaire are 595 millimetres and must be installed in a false ceiling with the hardware to the total. The weight of the product is of 2,6 kilos. It is, therefore, a very liviana luminaire and high usability.
-
Lighting Description
SIMON modular luminaire 726, 595x595 mm, square, for installation in false ceiling, visible hardware, with LED technology, consisting of multiple low-power LEDs, with Microprismatic photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear built into the luminaire, with DALI control, insulated from the optical body and the heat generated by it. Lumens available 2900 lm for WW, and total luminaire consumption of 39 W (actual system efficiency of 74 lm/W). CRI>80. Can also be installed in plaster ceiling, surface-mounted, concealed or semi-concealed profile using an accessory. Mains voltage 100-240V 50/60Hz. Lumen maintenance L70 >30,000 h at 25° and L90>. Luminaire dimensions: 595x595x10 mm. IP20. Minimum installation height: . Luminaire weight 2.6 kg. Photobiological safety: Exempt group. CE marking.
-
Model
Modular luminaires
-
Range
726
-
Application
General lighting
-
Diffuser material
PMMA
-
Packaging contents
1 unit
-
Frequency (Hz)
50 - 60 Hz
-
IP Rating
IP20
-
Operating temperature range (ºC)
-15 - 40 ºC
-
Power supply (V~)
100/240 V~
-
Dimensions (mm)
595
-
Weight (kg)
2.6
-
Chromatics CRI Icons
-
CRI
80
-
Colour temperature (k)
3000 K
-
Colour type
WW
-
Control
DALI
-
Electrical class
Tipo 2
-
L70 (ºC)
30,000 h at 25 ºC
-
Light beam aperture angle (ºC)
90º
-
Lighting efficiency (lm/w)
74 lm/W
-
Lúmenes (lm)
2900 lm
-
Optics
Microprismatic
-
Photobiological classification
Exempted category
-
Power (W)
39 W
-
Service life
30.000 h
-
Installation alternatives
Plaster ceiling, surface mount, flush mount, concealed profile and suspended
-
Installation type
False ceiling, visible hardware
-
Minimum installation height
250
-
Type of terminal connection
Screw
-
Guarantee
3 years 30,000 h
-
Product net weight
2.10KGM
-
Product gross weight
3.00KGM
-
Packaging quantity
1
-
Packaging height
55.00MMT
-
Packaging width
725.00MMT
-
Packaging length
650.00MMT
-
Packaging volume
25918750.00MMQ
-
Packaging net weight
2.10KGM
-
Packaging gross weight
3.00KGM
-
Packaging EAN
8421053193969
