BASIC INFORMATION
Description:

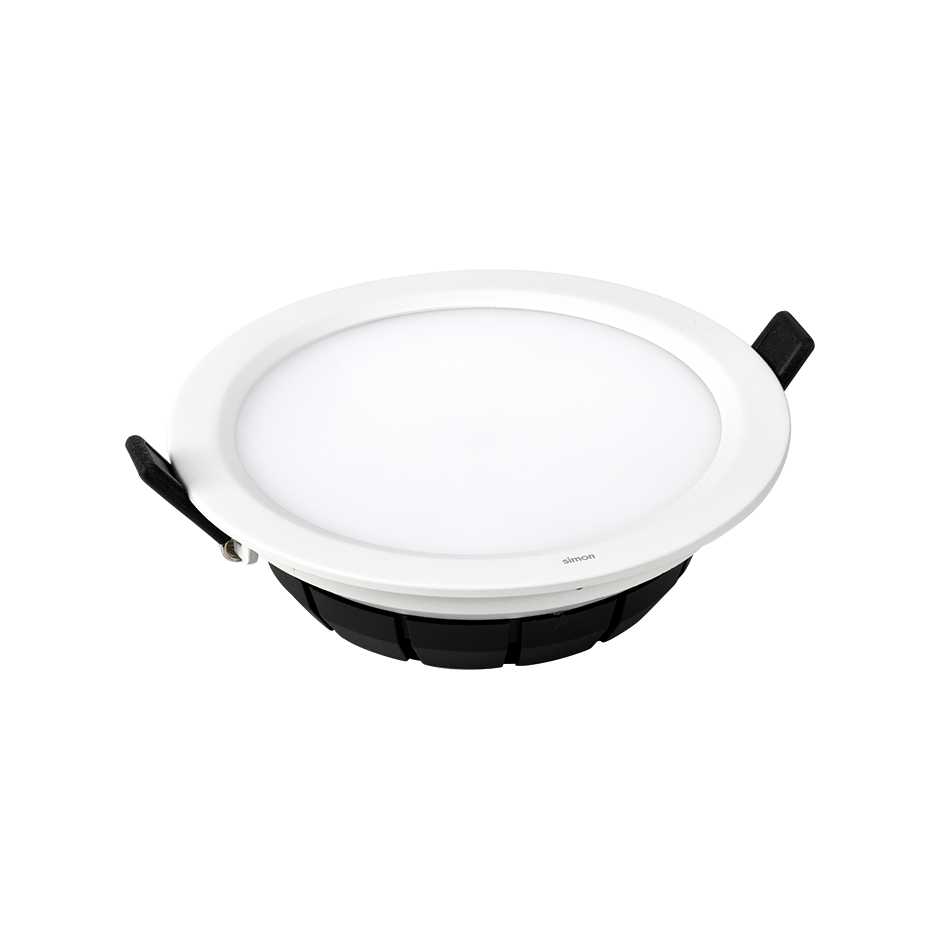

SIMON 725.23 Downlight, circular, 165 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution.
Body manufactured using aluminium injection moulding and painted white.
Electronic control gear built into the luminaire, with ON/OFF control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling.
Lumens available 1300 lm for NW and total luminaire consumption of 14 W (actual system efficiency of 93 lm/W). CRI>80.
Surface mount using an accessory.
Mains voltage 100-240V 50 Hz.
Lumen maintenance L70 >30,000 h at 25 °C.
Luminaire dimensions: 165 mm diam. x 51 mm depth. IP 44. Flush mount height: 101 mm. Hole diameter: 150 mm. Fixing system using high strength staples. Weight of complete luminaire 0.5 kg.
Photobiological safety: Exempt group.
CE marking.
TECHNICAL INFORMATION
LIGHTING DATA
Colour type:
NW
Colour temperature:
3900 K
CRI:
80
Lumens:
1300 lm
Lighting efficiency:
93 lm/w
Optics:
General
Light beam aperture angle:
120º
Photobiological classification:
Exempt category
L70:
30,000 h at 25 ºC
Service life:
30.000 h
Maintenance factor:
0.80
Polar photometry:
![19852]()
Conical photometry:
![19852]()
ELECTRICAL DATA
Power:
14 W
Power supply:
100-240 V
Frequency:
50/60 Hz
Control:
ON/OFF
Electrical class:
Type 1
Driver included:
Yes
Type of terminal connection:
Quick connect connector
MECHANICAL DATA
IP rating:
44
Operating temperature range:
-15 ºC to + 40 ºC
Weight:
0.5 kg
Installation type:
Flush mount
Installation alternatives:
Surface
Minimum installation height:
101 mm
Cut out dimension:
150 mm
Luminaire dimensions:
165x51 mm
Integrated power supply:
Yes
PRODUCT DATA
Product range:
725
Model / Family:
Downlights
Guarantee:
3 years 30,000 h
Accessory 1:
72533030-039 Surface mount accessory
Contents of box:
1 unit
