Ref
72523133-983

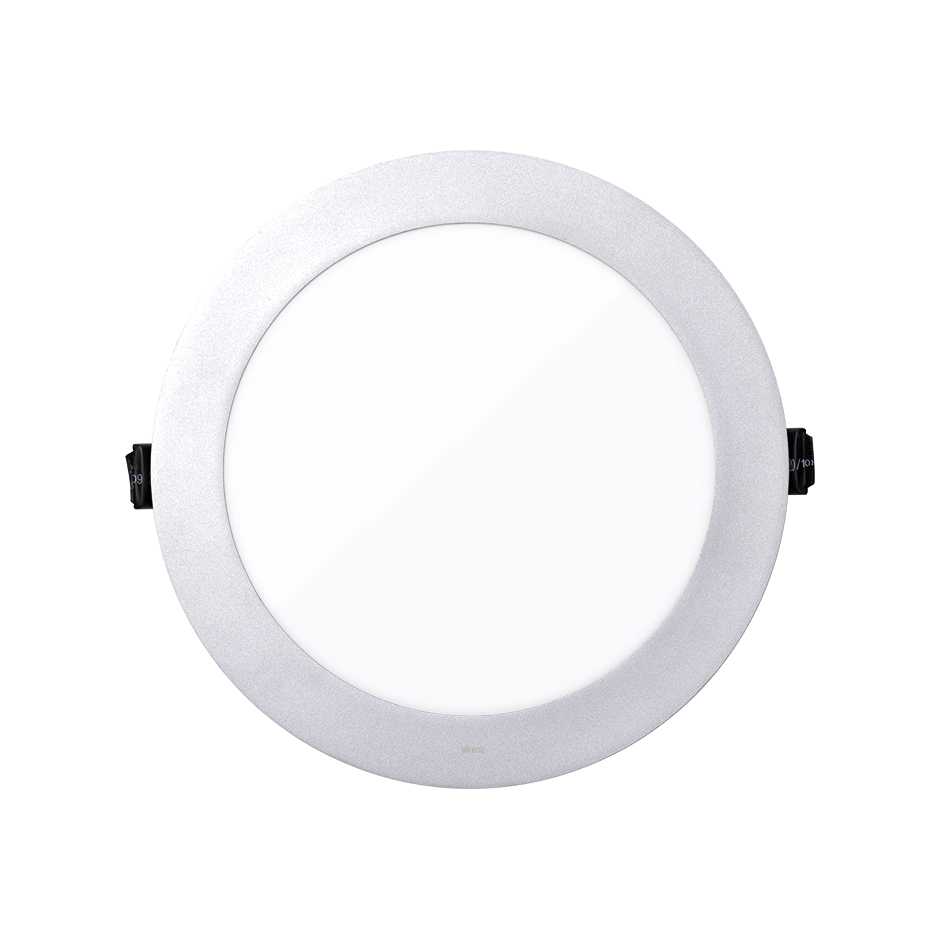

Downlight 725.23 Flush mount WW General 1-10V Aluminium
Price/Unit
Price on request
While stocks last
Packaging quantity
1 Unit
Outstanding Features
Series
Simon 725
Model
Downlights
Range
725
Series Compatibility
Simon 725
Downlight 725.23 Advance, with light, warm colour LED (WW) and optics GENERAL. You must install flush-mounted and its electrical control is performed by 1-10 V The product of indoor lighting Simon is category A and belongs to the series Simon 725 of the catalogue.
The temperature of the colour of this Downlight is of 3100 K and has 1200 lumens. Its power reaches the 14 W. the power supply is 100-240 and the frequency of 50 / 60 Hz. The design of the product is committed to a finished in aluminium, which allows you to incorporate into everyday seamlessly into any space, its dimensions are 165 x 51 millimetres and the weight of the luminaire is 0.5 kilos in total.
The catalog of indoor lighting of Simon is characterized by offering products of great capacity of light distribution with high energy savings, thanks to the efficiency that offer. The LEDs have a quite high duration at full performance.
Basic information
-
Lighting Description
SIMON 725.23 Downlight, circular, 165 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted an aluminium colour. Electronic control gear built into the luminaire, with 1-10V control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 1200 lm for WW, and total luminaire consumption of 14 W (actual system efficiency of 86 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 165 mm diam. x 51 mm depth. IP20. Flush mount height: 101 mm. Hole diameter: 150 mm. Fixing system using high strength staples. Weight of complete luminaire 0.5 kg. Photobiological safety: Exempt group. CE marking.
-
Model
Downlights
-
Range
725
-
Application
General lighting
-
Packaging contents
1 unit
Technical information
-
Frequency (Hz)
50 - 60 Hz
-
IP Rating
IP20
-
Operating temperature range (ºC)
-15 - 40 ºC
-
Power supply (V~)
100/240 V~
-
Cut out dimension (mm)
150 mm
-
Dimensions (mm)
165 x 51
-
Weight (kg)
0.5
Lighting Information
-
CRI
80
-
Colour temperature (k)
3100 K
-
Colour type
WW
-
Control
1-10 V
-
Electrical class
Type 1
-
L70 (ºC)
30,000 h at 25 ºC
-
Light beam aperture angle (ºC)
120º
-
Lighting efficiency (lm/w)
86 lm/W
-
Lúmenes (lm)
1200 lm
-
Optics
General
-
Photobiological classification
Exempt category
-
Power (W)
14 W
-
Service life
30.000 h
Installation and maintenance
-
Installation alternatives
Surface
-
Installation type
Flush mount
-
Minimum installation height
101
-
Type of terminal connection
Quick connector
Regulation
-
Guarantee
3 years 30,000 h
Logistics Information
-
Product net weight
0.528KGM
-
Product gross weight
0.528KGM
-
Packaging quantity
1
-
Packaging height
80MMT
-
Packaging width
190MMT
-
Packaging length
190MMT
-
Packaging volume
2.888DMQ
-
Packaging net weight
0.528KGM
-
Packaging gross weight
0KGM
-
Packaging EAN
8421053116869
Installation manual
Product declaration
Photometry
72523133-983-photometry.ldt [5KB]
