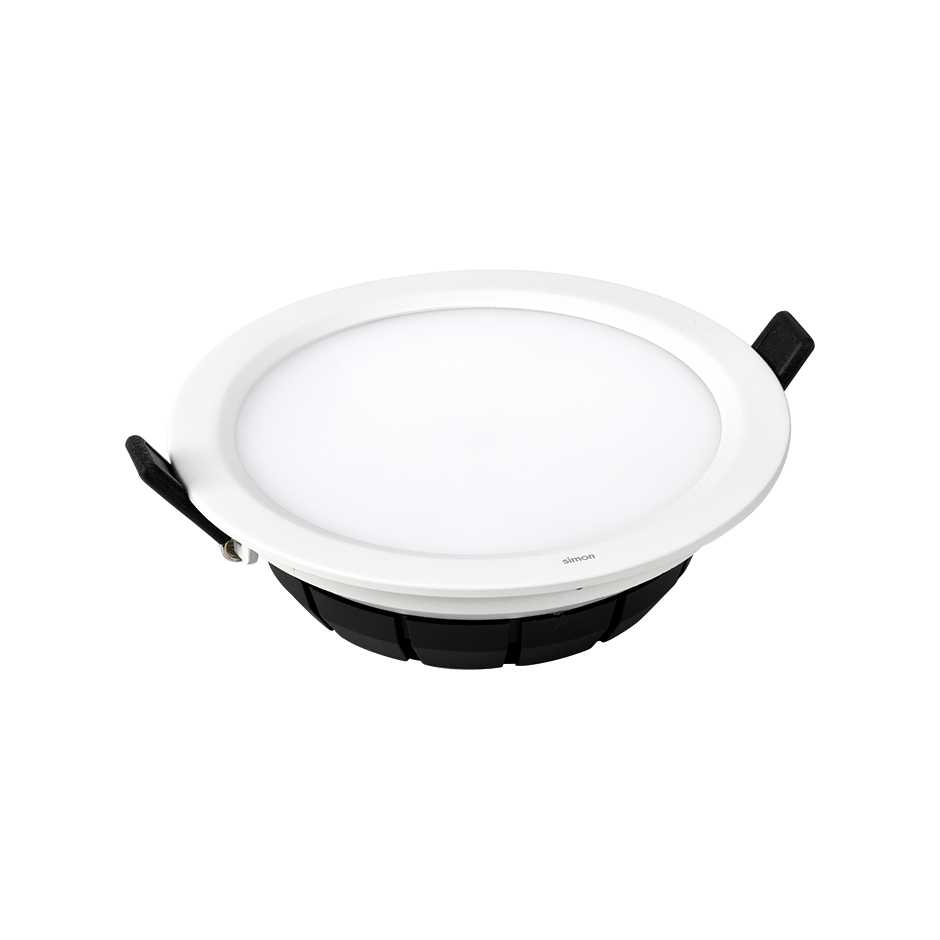

Downlight 725.23 Flush mount WW General 1-10V White perspective view

Downlight 725.23 Flush mount WW General 1-10V White perspective view

Downlight 725.23 Flush mount WW General 1-10V White front view

Downlight 725.23 Flush mount WW General 1-10V White front view

Downlight 725.23 Flush mount WW General 1-10V White installation view

Downlight 725.23 Flush mount WW General 1-10V White installation view

Downlight 725 application in DKV, Zaragoza

Downlight 725 application in DKV, Zaragoza

Ref
72523130-983

Downlight 725.23 Flush mount WW General 1-10V White

Price/Unit
€50.40
Packaging quantity
1 Unit
Outstanding Features
Series
Simon 725
Model
Downlights
Range
725
Series Compatibility

Simon 725

Product Information

Downlight 725.23 Advance, with light colour LED drop (WW) must be installed flush-mounted and the electric control is performed by 1-10 V has a temperature of the colour of 3100 K and 1200 lumens to 14 W power. This product of indoor lighting, it belongs to the series Simon 725 and has a beautiful and simple finish is white in colour.

The optics from the Downlight is GENERAL. It is a Downlight category A. its power supply is 100-240 V and its frequency is 50 / 60 Hz, with dimensions of 165 x 51 millimetres and a weight of the luminaire, 0.5 kilos, it is a product compact, which lawyer by the best capacity of light distribution.

This Downlight of Simon withstands very variable temperatures, which can oscillate between -15 degrees centigrade and the + 40 degrees centigrade. Thanks to the innovation of the that aims Simon in the manufacture of its luminaires, the Downlight has a very high durability.

Basic information
  • Lighting Description

    SIMON 725.23 Downlight, circular, 165 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear built into the luminaire, with 1-10V control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 1200 lm for WW, and total luminaire consumption of 14 W (actual system efficiency of 86 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 165 mm diam. x 51 mm depth. IP20. Flush mount height: 101 mm. Hole diameter: 150 mm. Fixing system using high strength staples. Weight of complete luminaire 0.5 kg. Photobiological safety: Exempt group. CE marking.

  • Model

    Downlights

  • Range

    725

  • Application

    General lighting

  • Packaging contents

    1 unit

Technical information
  • Frequency (Hz)

    50 - 60 Hz

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    -15 - 40 ºC

  • Power supply (V~)

    100/240 V~

  • Cut out dimension (mm)

    150 mm

  • Dimensions (mm)

    165 x 51

  • Weight (kg)

    0.5

Lighting Information
  • CRI

    80

  • Colour temperature (k)

    3100 K

  • Colour type

    WW

  • Control

    1-10 V

  • Electrical class

    Type 1

  • L70 (ºC)

    30,000 h at 25 ºC

  • Light beam aperture angle (ºC)

    120º

  • Lighting efficiency (lm/w)

    86 lm/W

  • Lúmenes (lm)

    1200 lm

  • Optics

    General

  • Photobiological classification

    Exempt category

  • Power (W)

    14 W

  • Service life

    30.000 h

Installation and maintenance
  • Installation alternatives

    Surface

  • Installation type

    Flush mount

  • Minimum installation height

    101 mm

  • Type of terminal connection

    Quick connector

Regulation
  • Guarantee

    3 years 30,000 h

Logistics Information
  • Product net weight

    0.528 KGM

  • Product gross weight

    0.528 KGM

  • Packaging quantity

    1

  • Packaging height

    80 MMT

  • Packaging width

    190 MMT

  • Packaging length

    190 MMT

  • Packaging volume

    2.888 DMQ

  • Packaging net weight

    0.528 KGM

  • Packaging EAN

    8421053116845
