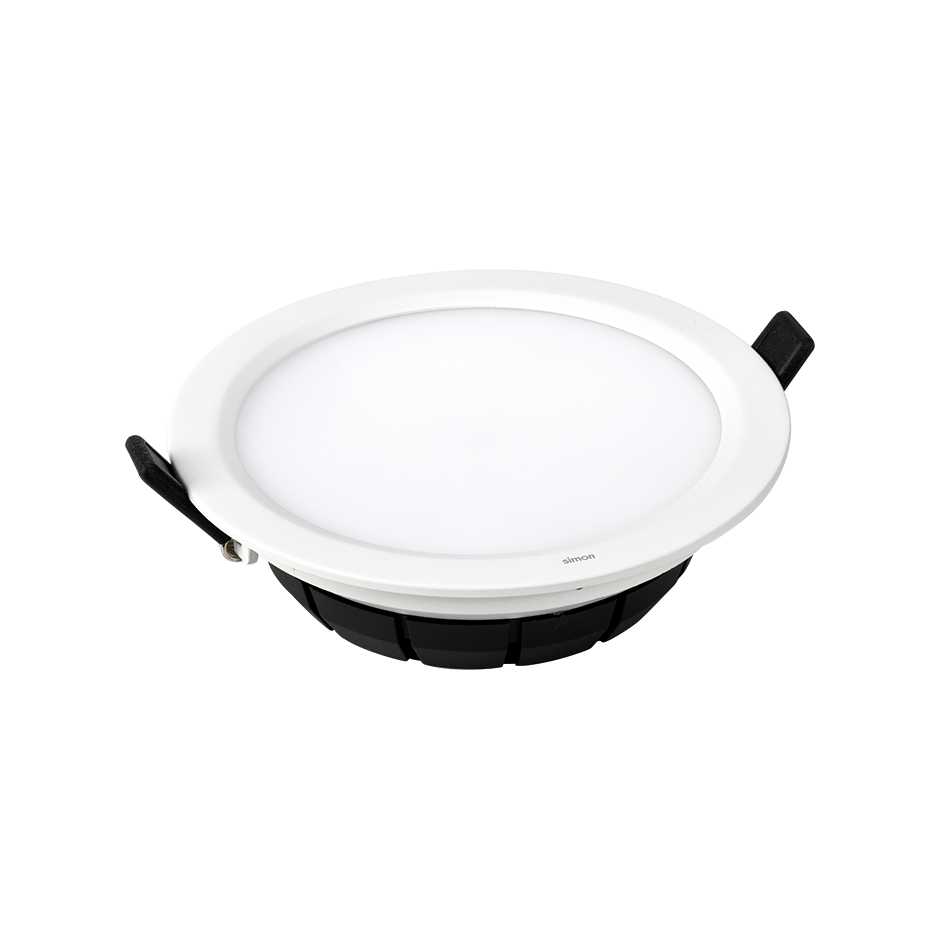

Downlight 725.23 Flush mount WW General White perspective view

Downlight 725.23 Flush mount WW General White front view

Downlight 725.23 Flush mount WW General White installation view

Downlight 725 application in DKV, Zaragoza

Ref
72523030-983

Downlight 725.23 Flush mount WW General White

Price/Unit
Price on request
Discontinued
Packaging quantity
1 Unit
Outstanding Features
Series
Simon 725
Model
Downlights
Range
725
Series Compatibility

Simon 725

Are you looking for uniform general lighting? Simon offers you this model Downlight 725.23 WW GENERAL. A flush-mounted advance luminaire designed for interiors, achieving a high visual comfort and light general perfect for transit areas, corridors, offices, etc. A product very little power consumption, as with only 14 Watts achieves 1200 lumens of intensity. Its system of general optics enables you to what extent light rays are distributed in a uniform manner throughout the whole room.

It is a stand-alone finished in white, designed to blunt. It has dimensions of 166 x 51 millimetres and a weight of 500 g. Its control system is the ON-OFF with a service life of the luminaire 30,000 hours. It offers a warm light of 3100º Kelvin of a constant and without vibration.

Are increasingly which you choose the installation of Simon products LED due to its great energy savings, its stylish design, the quality and durability of the materials.

Basic information
  • Lighting Description

    SIMON 725.23 Downlight, circular, 165 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear built into the luminaire, with ON/OFF control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 1200 lm for WW, and total luminaire consumption of 14 W (actual system efficiency of 86 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 165 mm diam. x 51 mm depth. IP20. Flush mount height: 101 mm. Hole diameter: 150 mm. Fixing system using high strength staples. Weight of complete luminaire 0.5 kg. Photobiological safety: Exempt group. CE marking.

  • Model

    Downlights

  • Range

    725

  • Application

    General lighting

  • Packaging contents

    1 unit

Technical information
  • Frequency (Hz)

    50 - 60 Hz

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    -15 - 40 ºC

  • Power supply (V~)

    100/240 V~

  • Cut out dimension (mm)

    150 mm

  • Dimensions (mm)

    165 x 51

  • Weight (kg)

    0.5

Lighting Information
  • Chromatics CRI Icons

  • CRI

    80

  • Colour temperature (k)

    3100 K

  • Colour type

    WW

  • Control

    On/Off

  • Electrical class

    Type 1

  • L70 (ºC)

    30,000 h at 25 ºC

  • Light beam aperture angle (ºC)

    120º

  • Lighting efficiency (lm/w)

    86 lm/W

  • Lúmenes (lm)

    1200 lm

  • Optics

    General

  • Photobiological classification

    Exempt category

  • Power (W)

    14 W

  • Service life

    30.000 h

Installation and maintenance
  • Installation alternatives

    Surface

  • Installation type

    Flush mount

  • Minimum installation height

    101

  • Type of terminal connection

    Quick connector

Regulation
  • Guarantee

    3 years 30,000 h

Logistics Information
  • Product net weight

    0.51KGM

  • Product gross weight

    0.51KGM

  • Product EAN

    8421053116821

  • Packaging quantity

    1

  • Packaging height

    80.00MMT

  • Packaging width

    195.00MMT

  • Packaging length

    195.00MMT

  • Packaging volume

    3.04DMQ

  • Packaging net weight

    0.51KGM

  • Packaging gross weight

    0.00KGM

  • Packaging EAN

    8421053116821
