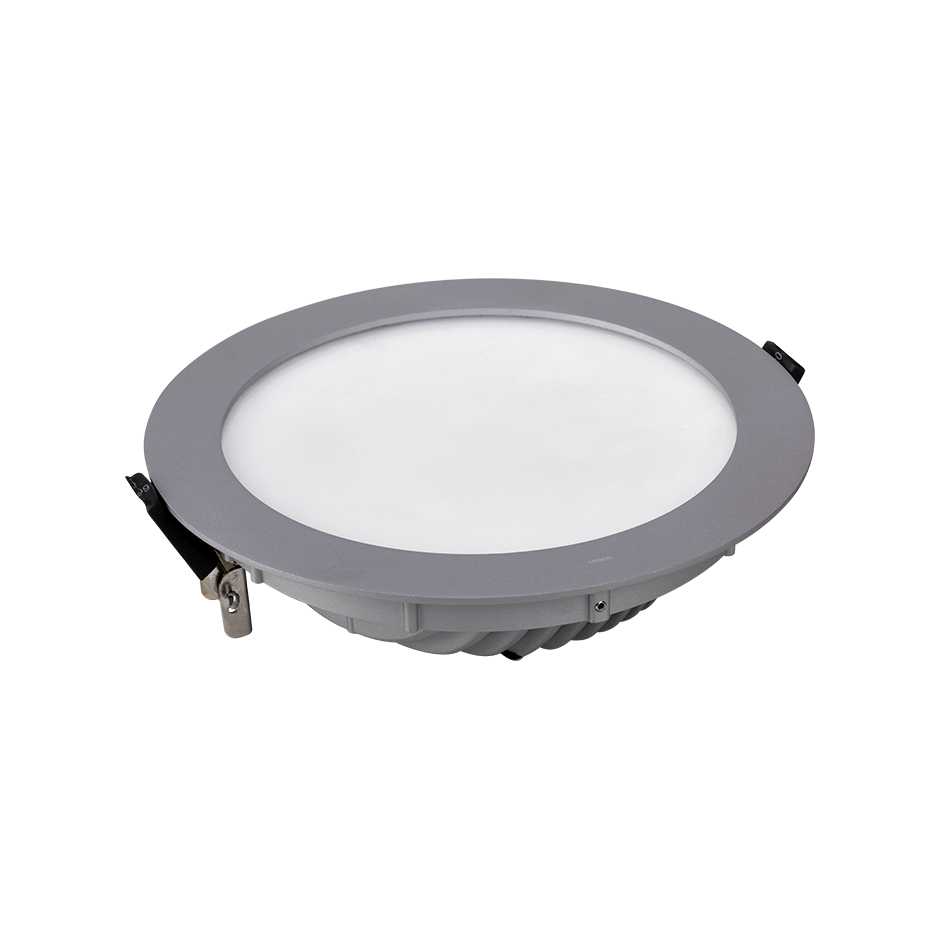

Downlight 725.22 Flush mount WW General IP44 Aluminium
Simon 725
Lighting systems LED Downlights 725 are specially designed to offer a uniform lighting with a high degree of visual comfort. A general indoor lighting of high quality is possible thanks to this luminaire Downlight 725.22 WW advance GENERAL-IP44 suitable for blunt in any surface-mounted. Stands out for its warm colour temperature of 3100º K, its general optics that reparte the light in a uniform manner without lost and has a long life 30,000 hours useful.
With a consumption of only 24 Watts reaches a light intensity from 2100 lumens, which allows us to a large savings on the electricity consumption. Made to a power supply of 100 - 240 volts with a frequency of 50 / 60 Hertz rate. It has a control system electrical ON-OFF.
The dimensions of the piece are 233 x 57 millimetres and it is suitable to be flush mounted in indoor, has a stylish finished in aluminium.
-
Lighting Description
SIMON 725.22 Downlight, circular, 233 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted an aluminium colour. Electronic control gear built into the luminaire, with ON/OFF control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 2100 lm for WW, and total luminaire consumption of 24W (actual system efficiency of 88 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 233mm diam. x 57 mm depth. IP 44. Flush mount height: 107 mm. Hole diameter: 210 mm. Fixing system using high strength staples. Weight of complete luminaire 1.25 kg. Photobiological safety: Exempt group. CE marking.
-
Model
Downlights
-
Range
725
-
Application
General lighting
-
Packaging contents
1 unit
-
Frequency (Hz)
50 - 60 Hz
-
IP Rating
IP44
-
Operating temperature range (ºC)
-15 - 40 ºC
-
Power supply (V~)
100/240 V~
-
Cut out dimension (mm)
210 mm
-
Dimensions (mm)
233 x 57
-
Weight (kg)
1.25
-
Chromatics CRI Icons
-
CRI
80
-
Colour temperature (k)
3100 K
-
Colour type
WW
-
Control
On/Off
-
Electrical class
Type 1
-
L70 (ºC)
30,000 h at 25 ºC
-
Light beam aperture angle (ºC)
120º
-
Lighting efficiency (lm/w)
88 lm/W
-
Lúmenes (lm)
2100 lm
-
Optics
General
-
Photobiological classification
Exempt category
-
Power (W)
24 W
-
Service life
30.000 h
-
Installation alternatives
Surface
-
Installation type
Flush mount
-
Minimum installation height
107
-
Type of terminal connection
Quick connector
-
Guarantee
3 years 30,000 h
-
Product net weight
1.442KGM
-
Product gross weight
1.442KGM
-
Packaging quantity
1
-
Packaging height
70MMT
-
Packaging width
245MMT
-
Packaging length
245MMT
-
Packaging volume
0.042HLT
-
Packaging net weight
1.442KGM
-
Packaging gross weight
0KGM
-
Packaging EAN
8421053116784
