Downlight 725.22 Flush mount NW General IP44 White
Simon 725
Protected against the entry of external agents such as water or dust, thanks to the system IP44 included in the Downlight 725.22 Advance of Simon, makes it the best option to bring to the space of the maximum guarantee of security and lighting.
Energy savings of its LED technology category B, is linked to its performance of 2300 lm for NW, and total luminaire consumption of 24 W and compatible with power supplies 100-240 Volts and 50-60 Hertz rate. It has a colour temperature of 3900 K obtaining a white tone neutral NW, and provides to each space a ambience visually comfortable thanks to its optics, also, for General photometric distribution.
With control system, switching on ON-OFF, it has a service life of 30,000 hours at 25 ° C, which is not affected the quantity (QTY.) of times are power on or off luminaire. Also, it is designed for flush installation that, together with its finishes in a high colour White, guarantee total integration of the set in any space.
-
Lighting Description

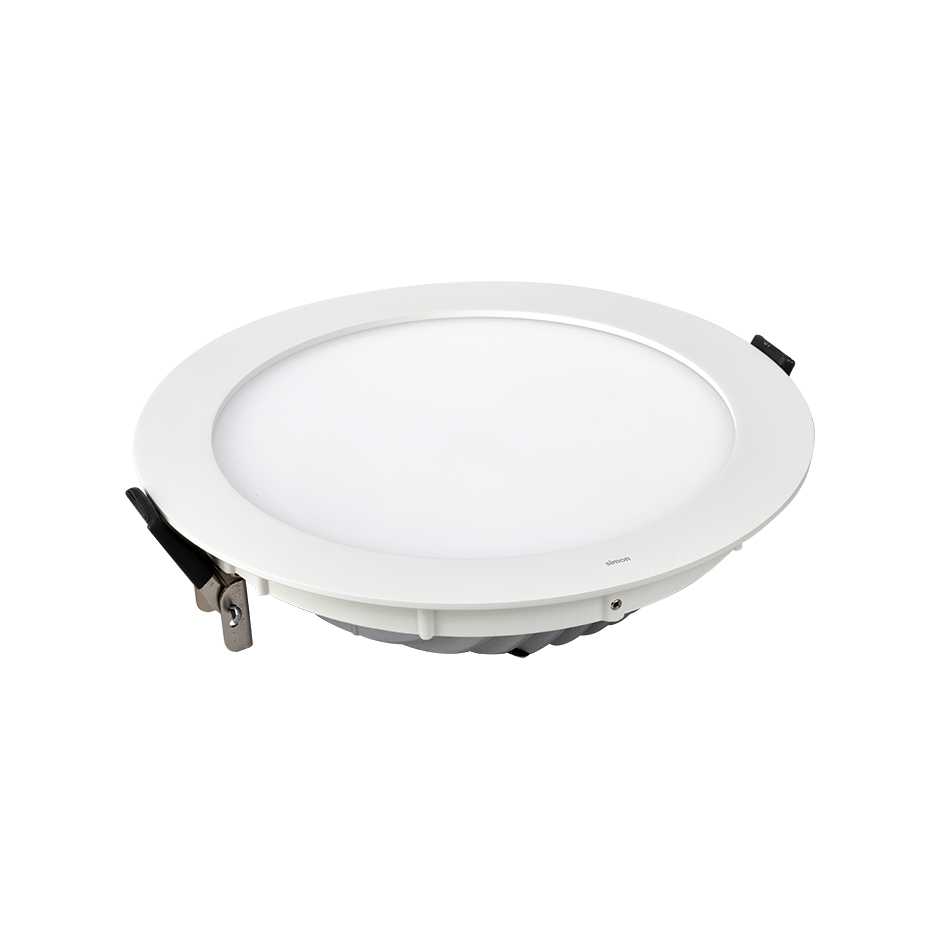

SIMON 725.22 Downlight, circular, 233 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear built into the luminaire, with ON/OFF control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 2300 lm for NW and total luminaire consumption of 24 W (actual system efficiency of 96 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 233mm diam. x 57 mm depth. IP 44. Flush mount height: 107 mm. Hole diameter: 210 mm. Fixing system using high strength staples. Weight of complete luminaire 1.25 kg. Photobiological safety: Exempt group. CE marking.
-
Model
Downlights
-
Range
725
-
Application
General lighting
-
Packaging contents
1 unit
-
Frequency (Hz)
50 - 60 Hz
-
IP Rating
IP44
-
Operating temperature range (ºC)
-15 - 40 ºC
-
Power supply (V~)
100/240 V~
-
Cut out dimension (mm)
210 mm
-
Dimensions (mm)
233 x 57
-
Weight (kg)
1.25
-
Chromatics CRI Icons
-
CRI
80
-
Colour temperature (k)
3900 K
-
Colour type
NW
-
Control
On/Off
-
Electrical class
Type 1
-
L70 (ºC)
30,000 h at 25 ºC
-
Light beam aperture angle (ºC)
120º
-
Lighting efficiency (lm/w)
96 lm/W
-
Lúmenes (lm)
2300 lm
-
Optics
General
-
Photobiological classification
Exempt category
-
Power (W)
24 W
-
Service life
30.000 h
-
Installation alternatives
Surface
-
Installation type
Flush mount
-
Minimum installation height
107
-
Type of terminal connection
Quick connector
-
Guarantee
3 years 30,000 h
-
Product net weight
1.442KGM
-
Product gross weight
1.442KGM
-
Packaging quantity
1
-
Packaging height
70MMT
-
Packaging width
245MMT
-
Packaging length
245MMT
-
Packaging volume
0.042HLT
-
Packaging net weight
1.442KGM
-
Packaging gross weight
0KGM
-
Packaging EAN
8421053116777
