Downlight 725.22 Flush mount WW General IP44 White

REFERENCE NO.: 72522930-983
R.P.: Price on request
PACKAGING: 1 Unit
ECORRAE: Category B
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Description:  SIMON 725.22 Downlight, circular, 233 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear built into the luminaire, with ON/OFF control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 2100 lm for WW, and total luminaire consumption of 24W (actual system efficiency of 88 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 233mm diam. x 57 mm depth. IP 44. Flush mount height: 107 mm. Hole diameter: 210 mm. Fixing system using high strength staples. Weight of complete luminaire 1.25 kg. Photobiological safety: Exempt group. CE marking.

TECHNICAL INFORMATION

LIGHTING DATA
Colour type:  WW
Colour temperature:  3100 K
CRI:  80
Lumens:  2100 lm
Lighting efficiency:  88 lm/w
Optics:  General
Light beam aperture angle:  120º
Photobiological classification:  Exempt category
L70:  30,000 h at 25 ºC
Service life:  30.000 h
Maintenance factor:  0.80
Polar photometry:  19837
Conical photometry:  19837
ELECTRICAL DATA
Power:  24 W
Power supply:  100-240 V
Frequency:  50/60 Hz
Control:  ON/OFF
Electrical class :  Type 1
Driver included:  Yes
Type of terminal connection:  Quick connect connector
MECHANICAL DATA
IP rating:  44
Operating temperature range:  -15 ºC to + 40 ºC
Weight:  1.25 kg
Installation type:  Flush mount
Installation alternatives:  Surface
Minimum installation height:  107 mm
Cut out dimension:  210 mm
Luminaire dimensions:  233x57 mm
Integrated power supply:  Yes
PRODUCT DATA
Product range:  725
Model / Family:  Downlights
Guarantee:  3 years 30,000 h
Accessory 1:  72532030-039 Surface mount accessory
Contents of box:  1 unit

TECHNICAL FEATURES

CERTIFICATES

LOGISTIC DATA

Packaging quantity:  1
Box measurement unit:  MM
Height:  70.000
Wide:  245.000
Depth:  245.000
Box volume:  0.042
Box volume measurement unit:  HL
Net weight of box:  1.442
Gross weight of box:  0.000
Unit weight of box:  KGM
EAN code:  8421053116760

GALLERY


Downlight 725 application in DKV, Zaragoza

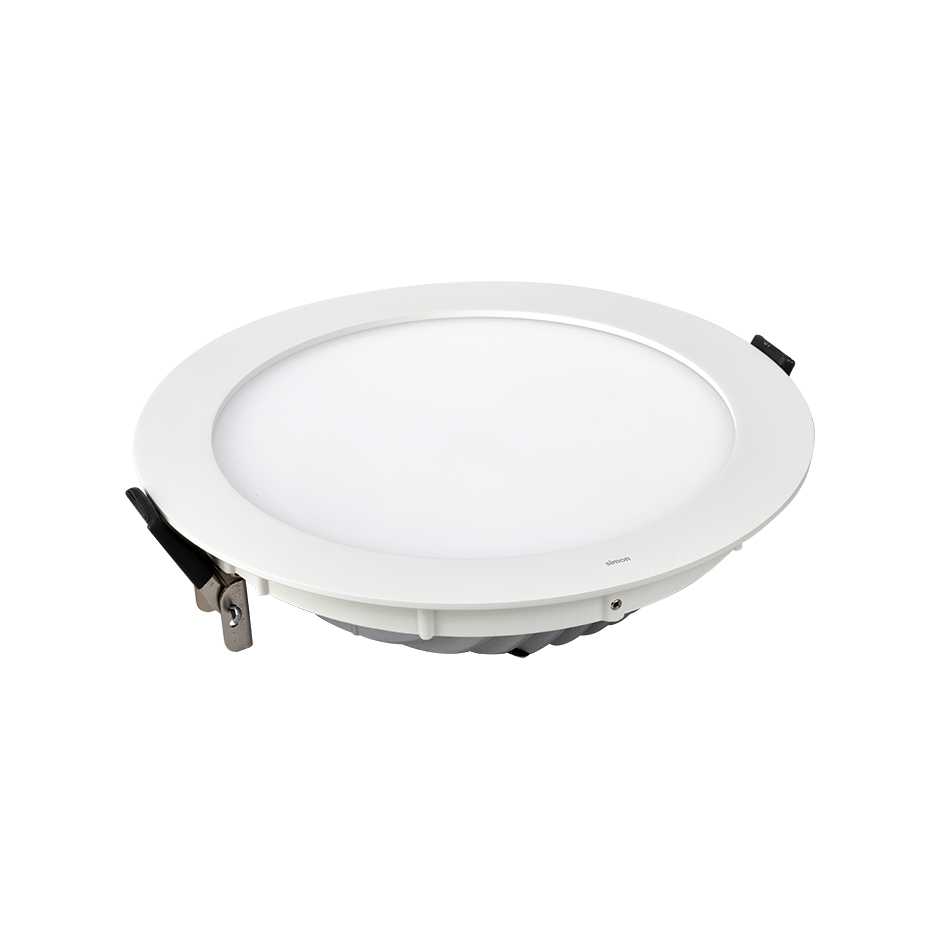

Downlight 725.22 Flush mount WW General IP44 White perspective view


Downlight 725.22 Flush mount WW General IP44 White installation view


INSTALLATION MANUAL

manual
Instruction sheet Downlight 725.22 Flush mount WW General IP44 White DOWNLOAD

PRODUCT DECLARATIONS

manual
UE declaration Downlight 725.22 Flush mount NW General 1-10 V Aluminium DOWNLOAD

PHOTOMETRY

manual
Photometry Downlight 725.22 Flush mount WW General IP44 White DOWNLOAD
manual
Photometries Gama 725 DOWNLOAD
