Downlight 725.22 Flush mount NW General 1-10V Aluminium

REFERENCE NO.: 72522133-984
R.P.: Price on request
PACKAGING: 1 Unit
ECORRAE: Category B
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Description:  SIMON 725.22 Downlight, circular, 233 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted an aluminium colour. Electronic control gear built into the luminaire, with 1-10V control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 2300 lm for NW and total luminaire consumption of 24 W (actual system efficiency of 96 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 233mm diam. x 57 mm depth. IP20. Flush mount height: 107 mm. Hole diameter: 210 mm. Fixing system using high strength staples. Weight of complete luminaire 1.25 kg. Photobiological safety: Exempt group. CE marking.

TECHNICAL INFORMATION

LIGHTING DATA
Colour type:  NW
Colour temperature:  3900 K
CRI:  80
Lumens:  2300 lm
Lighting efficiency:  96 lm/w
Optics:  General
Light beam aperture angle:  120º
Photobiological classification:  Exempt category
L70:  30,000 h at 25 ºC
Service life:  30.000 h
Maintenance factor:  0.80
Polar photometry:  19836
Conical photometry:  19836
ELECTRICAL DATA
Power:  24 W
Power supply:  100-240 V
Frequency:  50/60 Hz
Control:  1-10V
Electrical class :  Type 1
Driver included:  Yes
Type of terminal connection:  Quick connect connector
MECHANICAL DATA
IP rating:  20
Operating temperature range:  -15 ºC to + 40 ºC
Weight:  1.25 kg
Installation type:  Flush mount
Installation alternatives:  Surface
Minimum installation height:  107 mm
Cut out dimension:  210 mm
Luminaire dimensions:  233x57 mm
Integrated power supply:  Yes
PRODUCT DATA
Product range:  725
Model / Family:  Downlights
Accessory 1:  72532030-039 Surface mount accessory
Contents of box:  1 unit

TECHNICAL FEATURES

CERTIFICATES

LOGISTIC DATA

GALLERY


Downlight 725 application in DKV, Zaragoza

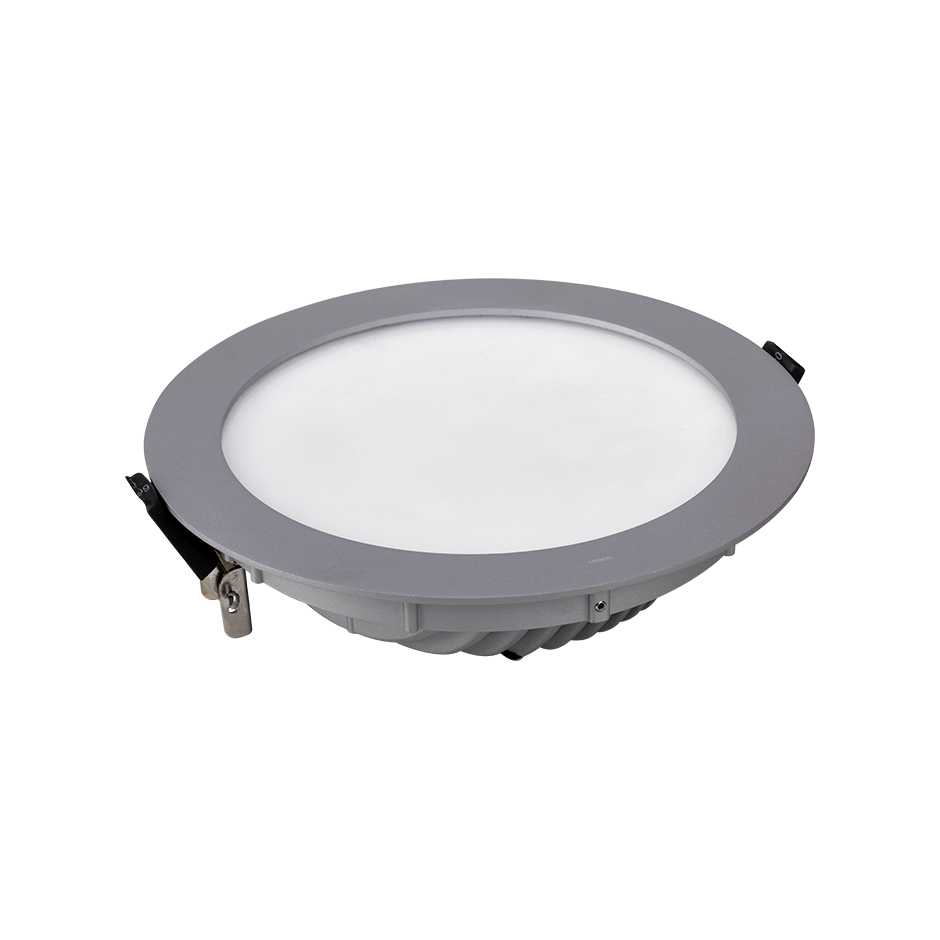

Downlight 725.22 Flush mount NW General 1-10V Aluminium perspective view

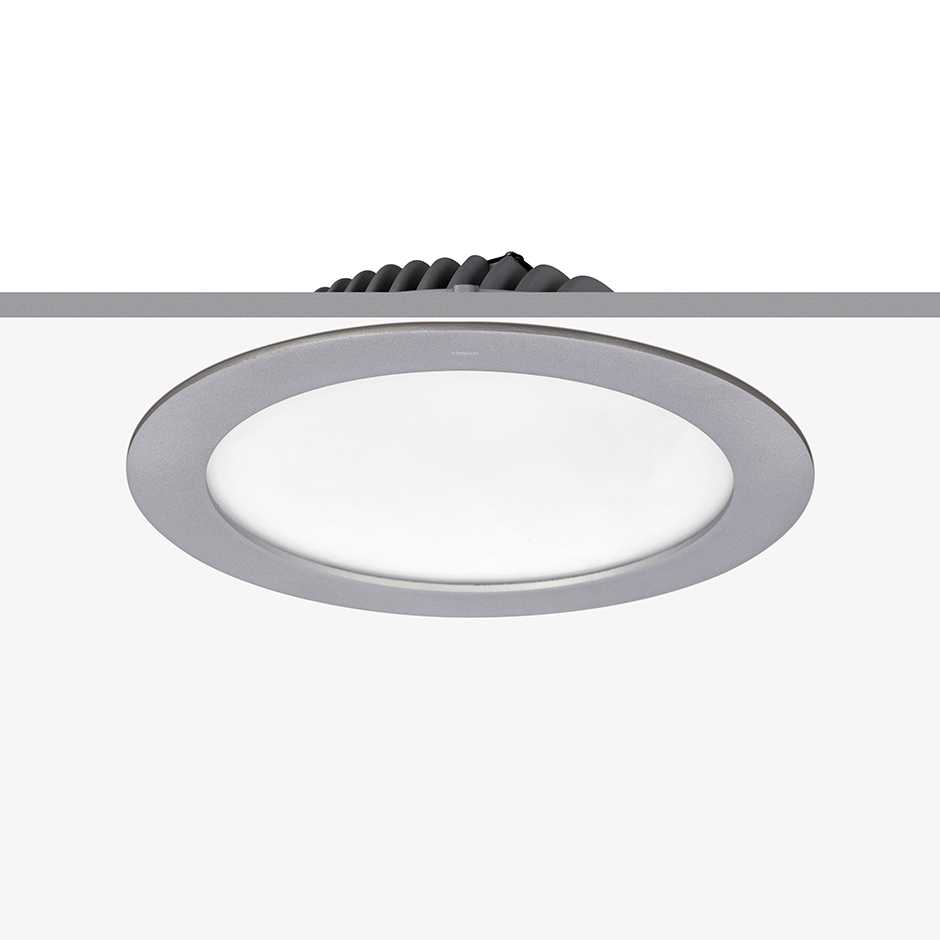

Downlight 725.22 Flush mount NW General 1-10V Aluminium installation view


INSTALLATION MANUAL

manual
Instruction sheet Downlight 725.22 Flush mount NW General 1-10 V Aluminium DOWNLOAD

PRODUCT DECLARATIONS

manual
UE declaration Downlight 725.22 Flush mount WW General 1-10 V Aluminium DOWNLOAD

PHOTOMETRY

manual
Photometry Downlight 725.22 Flush mount NW General 1-10V Aluminium DOWNLOAD
manual
Photometries Gama 725 DOWNLOAD
