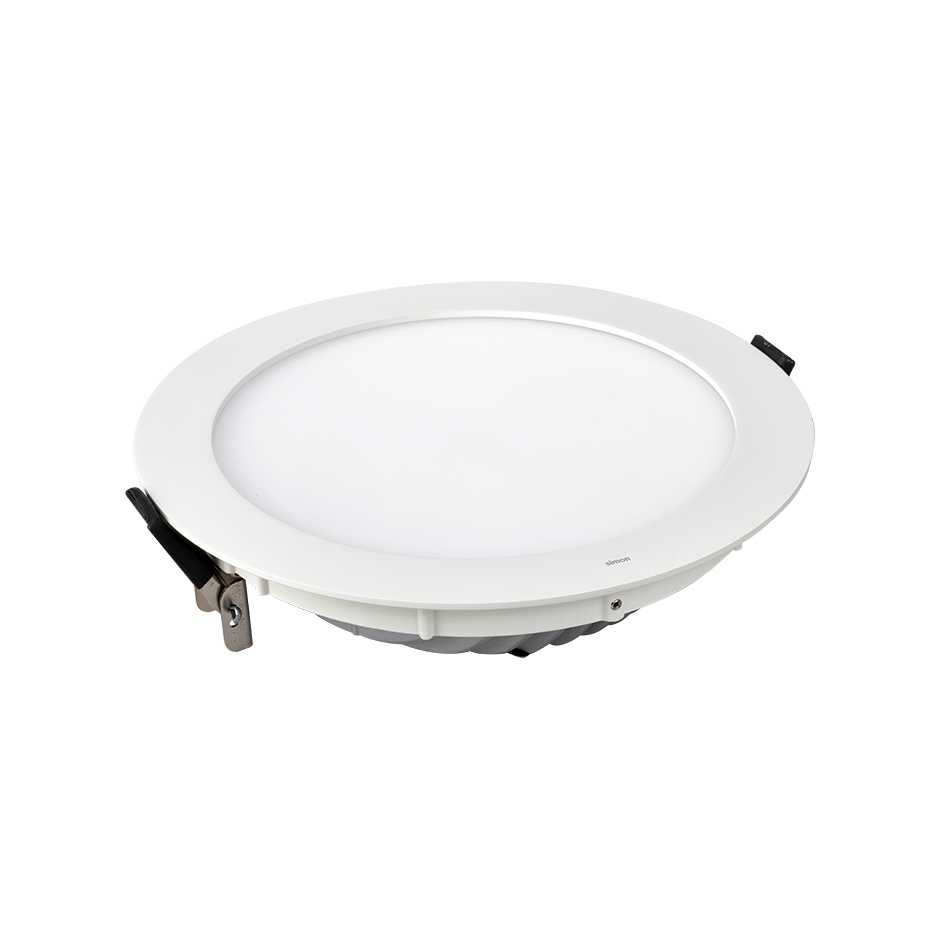

Downlight 725.22 Flush mount WW General 1-10V White
Simon 725
Downlight 725.22 with Series Advance General optics and for installation in recessed. Its Ecorrae is category B and features a colour temperature of 3100K and a light intensity of 2100lm / 24 W. It has a service life of a 30,000 hours, approximately, operating at 25 ° C, although it is a type of downlight perfect for installation in rooms with a temperature is between -15 and 40ºC. This downlight is manufactured in aluminium with white finish and its installation is by recessed. It has a weight of 1.25 kg and dimensions of 233 x 57 mm Is controlled via 1-10 V, it has a frequency of 50 / 60 Hz and its power supply is 100-240 V. The downlights of the series 725 is ideal for creating uniform lighting with high visual comfort, especially in transit areas, corridors and also for general office lighting and commercial establishments.
-
Lighting Description
SIMON 725.22 Downlight, circular, 233 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear built into the luminaire, with 1-10V control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 2100 lm for WW, and total luminaire consumption of 24W (actual system efficiency of 88 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 233mm diam. x 57 mm depth. IP20. Flush mount height: 107 mm. Hole diameter: 210 mm. Fixing system using high strength staples. Weight of complete luminaire 1.25 kg. Photobiological safety: Exempt group. CE marking.
-
Model
Downlights
-
Range
725
-
Application
General lighting
-
Packaging contents
1 unit
-
Frequency (Hz)
50 - 60 Hz
-
IP Rating
IP20
-
Operating temperature range (ºC)
-15 - 40 ºC
-
Power supply (V~)
100/240 V~
-
Cut out dimension (mm)
210 mm
-
Dimensions (mm)
233 x 57
-
Weight (kg)
1.25
-
Chromatics CRI Icons
-
CRI
80
-
Colour temperature (k)
3100 K
-
Colour type
WW
-
Control
1-10 V
-
Electrical class
Type 1
-
L70 (ºC)
30,000 h at 25 ºC
-
Light beam aperture angle (ºC)
120º
-
Lighting efficiency (lm/w)
88 lm/W
-
Lúmenes (lm)
2100 lm
-
Optics
General
-
Photobiological classification
Exempt category
-
Power (W)
24 W
-
Service life
30.000 h
-
Installation alternatives
Surface
-
Installation type
Flush mount
-
Minimum installation height
107
-
Type of terminal connection
Quick connector
-
Guarantee
3 years 30,000 h
-
Product net weight
1.25KGM
-
Product gross weight
1.25KGM
-
Packaging quantity
1
-
Packaging height
70MMT
-
Packaging width
250MMT
-
Packaging length
250MMT
-
Packaging volume
4.375DMQ
-
Packaging net weight
1.25KGM
-
Packaging gross weight
0KGM
-
Packaging EAN
8421053116722
