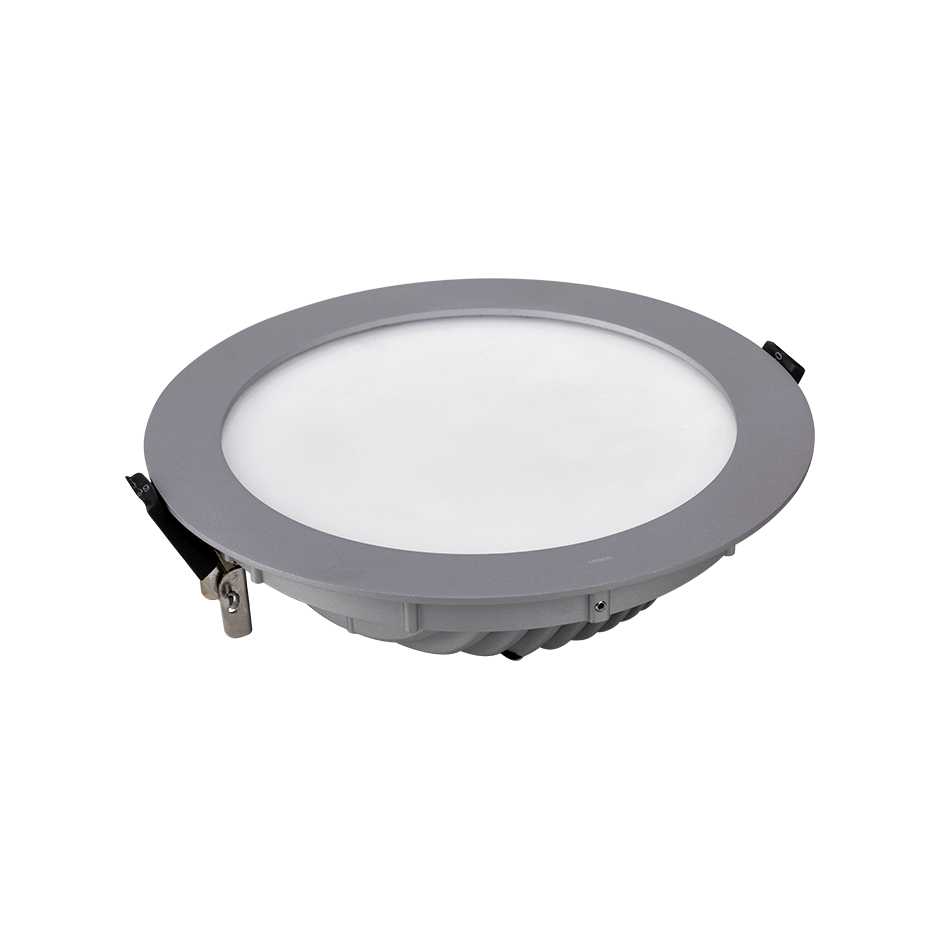

Downlight 725.22 Flush mount NW General Aluminium perspective view

Downlight 725.22 Flush mount NW General Aluminium perspective view

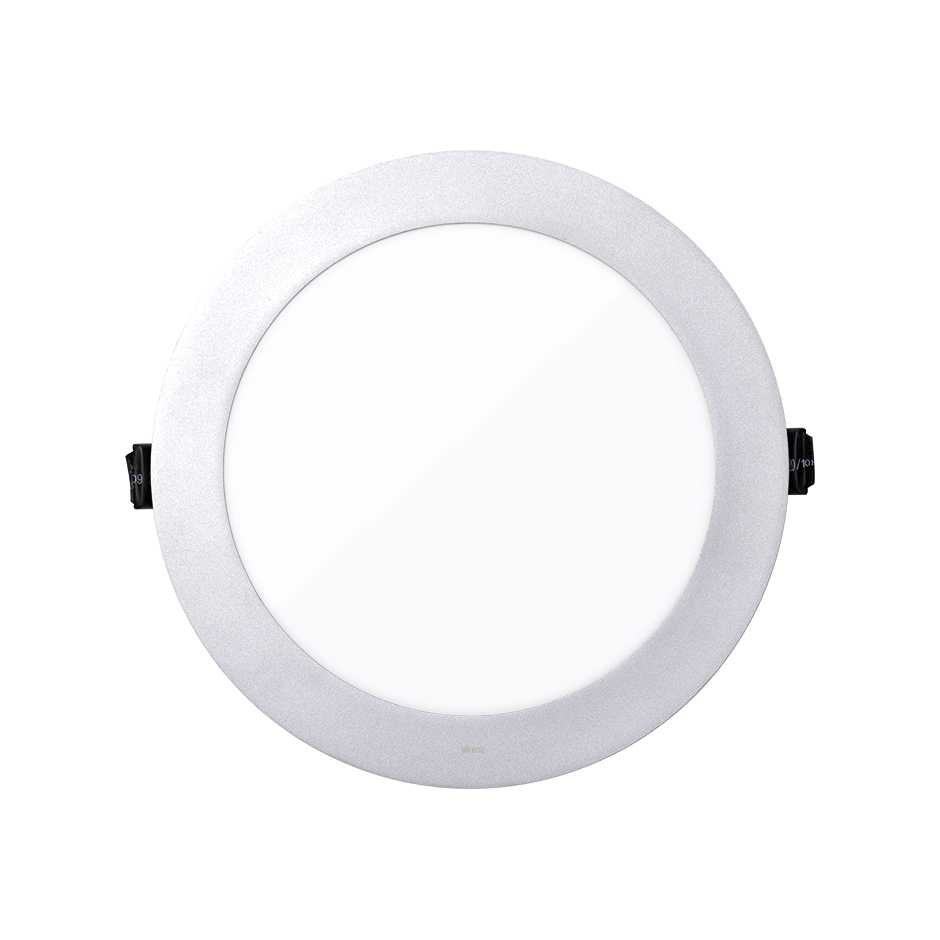

Downlight 725.22 Flush mount NW General Aluminium front view

Downlight 725.22 Flush mount NW General Aluminium front view

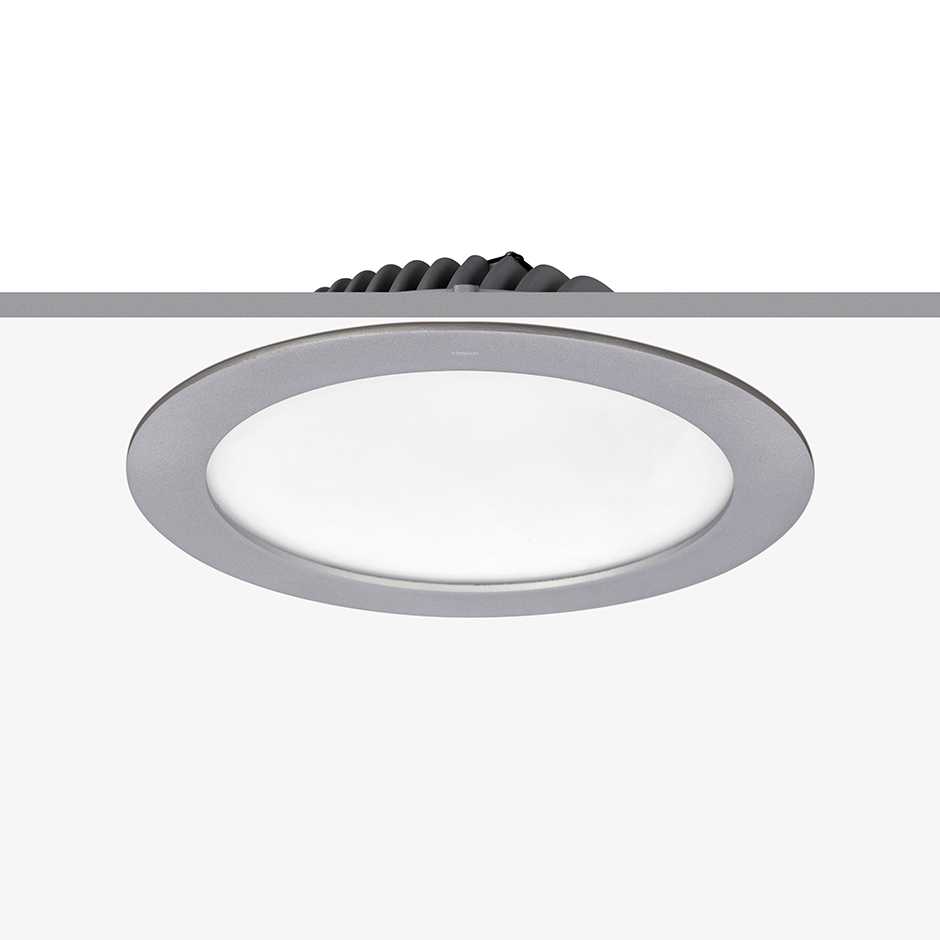

Downlight 725.22 Flush mount NW General Aluminium installation view

Downlight 725.22 Flush mount NW General Aluminium installation view

Downlight 725 application in DKV, Zaragoza

Downlight 725 application in DKV, Zaragoza

Ref
72522033-984

Downlight 725.22 Flush mount NW General Aluminium

Price/Unit
€61.95
Packaging quantity
1 Unit
Outstanding Features
Series
Simon 725
Model
Downlights
Range
725
Series Compatibility

Simon 725

Product Information

With this luminaire Downlight 755.22 flush mounted NW Advance GENERAL obtendremos a neutral and uniform lighting, perfect as general lighting for corridors, transit areas, or as a general lighting for commercial establishments. This piece has a stylish finished in aluminium and it is suitable to be flush mounted.

Thanks to LED technology, with a power of 24 Watts we will have a light intensity of 2,300 lumens. A high power with a low cost of the electricity consumption, as we ensures 30,000 hours of light without any maintenance and without the quality of lighting we see deteriorada.

When you have a general optics, the light is repartirá of a uniform by the whole room. Its control system is on - OFF, and for its power requires a power of 100 - 240 volts. This is a product very durable with which notaremos a great savings in energy savings of the light.

Basic information
  • Lighting Description

    SIMON 725.22 Downlight, circular, 233 mm diameter, with LED technology and fitted with PMMA diffuser, sheet of light effect and 120° General photometric distribution. Body manufactured using aluminium injection moulding and painted an aluminium colour. Electronic control gear built into the luminaire, with ON/OFF control. Heat sink made of high-conductance aluminium, with fins for optimum LED cooling. Lumens available 2300 lm for NW and total luminaire consumption of 24 W (actual system efficiency of 96 lm/W). CRI>80. Surface mount using an accessory. Mains voltage 100-240V 50 Hz. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 233mm diam. x 57 mm depth. IP20. Flush mount height: 107 mm. Hole diameter: 210 mm. Fixing system using high strength staples. Weight of complete luminaire 1.25 kg. Photobiological safety: Exempt group. CE marking.

  • Model

    Downlights

  • Range

    725

  • Application

    General lighting

  • Packaging contents

    1 unit

Technical information
  • Frequency (Hz)

    50 - 60 Hz

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    -15 - 40 ºC

  • Power supply (V~)

    100/240 V~

  • Cut out dimension (mm)

    210 mm

  • Dimensions (mm)

    233 x 57

  • Weight (kg)

    1.25

Lighting Information
  • CRI

    80

  • Colour temperature (k)

    3900 K

  • Colour type

    NW

  • Control

    On/Off

  • Electrical class

    Type 1

  • L70 (ºC)

    30,000 h at 25 ºC

  • Light beam aperture angle (ºC)

    120º

  • Lighting efficiency (lm/w)

    96 lm/W

  • Lúmenes (lm)

    2300 lm

  • Optics

    General

  • Photobiological classification

    Exempt category

  • Power (W)

    24 W

  • Service life

    30.000 h

Installation and maintenance
  • Installation alternatives

    Surface

  • Installation type

    Flush mount

  • Minimum installation height

    107 mm

  • Type of terminal connection

    Quick connector

Regulation
  • Guarantee

    3 years 30,000 h

Logistics Information
  • Product net weight

    1.22 KGM

  • Product gross weight

    1.22 KGM

  • Packaging quantity

    1

  • Packaging height

    70 MMT

  • Packaging width

    250 MMT

  • Packaging length

    250 MMT

  • Packaging volume

    4375000 MMQ

  • Packaging net weight

    1.22 KGM

  • Packaging gross weight

    1.22 KGM

  • Packaging EAN

    8421053116692
