Downlight 706.21 Flush mount NW Wide Flood 1-10V White
Simon 706
If you are looking for a sustainable lighting, durable and with a design that adapts to each space, the Downlight 706.21 circular of the collection Simon for indoor lighting, it is the ideal decision. With finishes in intense white tone and optics WIDE FLOOD photometric distribution, you will obtain a beam of light that abarque angles widest, with a minimalist design and protocol for the cabinet amplitude dimming 1-10 V light for greater versatility and functionality of lighting.
It has a light tone of a white neutral NW, colour temperature of 3900 K, performance 950 lm, and total luminaire consumption of 15 W It of a power of 100-240 Volt and 50-60 Hertz rate, has a service life of 30,000 hours at 25 ° C, being able to reach a maximum temperature of 40 ºC.
Its installation, recessed, prepared for false ceiling and plastered, it has a dimension of 82 mm diameter x 110 mm depth, which ensures integration of the set in a reduced space.
-
Lighting Description

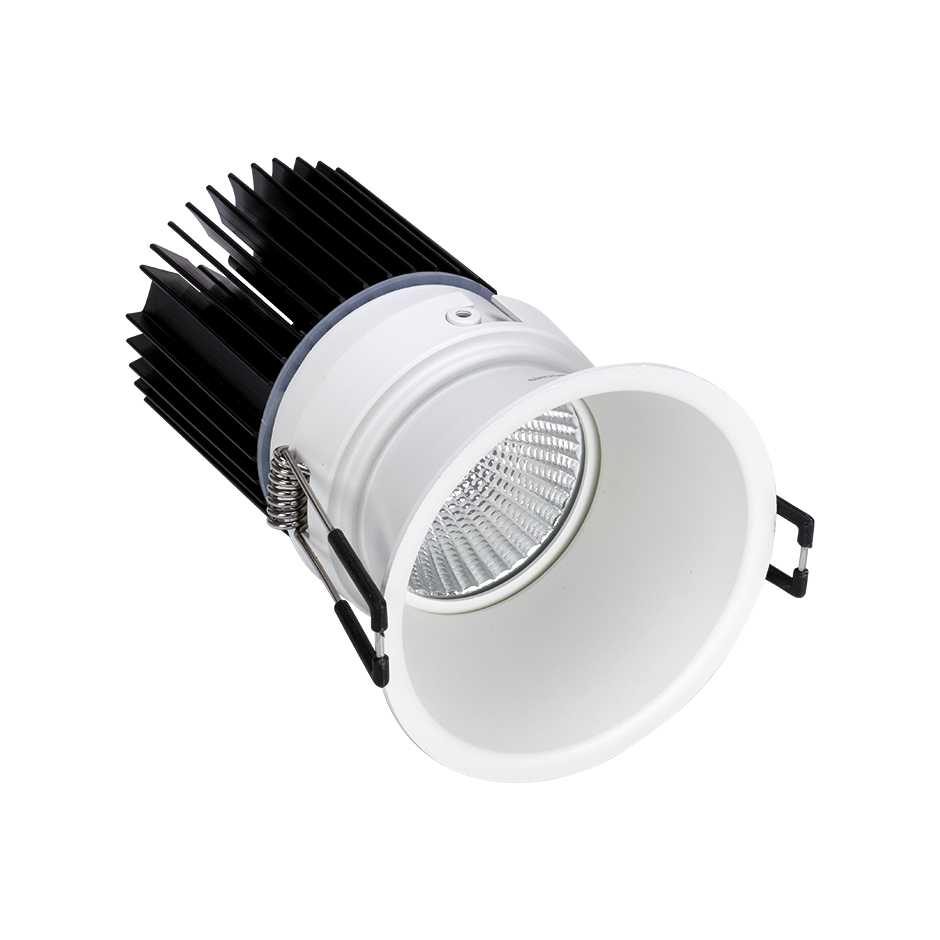

SIMON Downlight 706.21, circular, for flush mount installation with LED technology and 50° WIDE FLOOD photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear with 1-10V control, insulated from the luminaire and the optical body and the heat generated by it. Heat sink made of high-conductance aluminium for optimum LED cooling. Lumens available 950 lm for NW, and total luminaire consumption of 15 W (actual system efficiency of 64 lm/W). CRI>80. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 82 mm diam. x 110 mm depth. Weight: 0.3 kg. IP20. Flush mount height 180 mm Hole diameter 72 mm. Photobiological safety: Exempt category. Supply voltage 100-240V, 50-60 Hz. CE marking.
-
Model
Downlights
-
Range
706
-
Application
Ambient lighting
-
Packaging contents
1 unit
-
Frequency (Hz)
50 - 60 Hz
-
IP Rating
IP44
-
Operating temperature range (ºC)
40 ºC maximum
-
Power supply (V~)
100/240 V~
-
Cut out dimension (mm)
72 mm
-
Dimensions (mm)
110 x 82(ø)
-
Weight (kg)
0.3
-
CRI
80
-
Colour temperature (k)
3900 K
-
Colour type
NW
-
Control
1-10 V
-
Electrical class
Type 2
-
L70 (ºC)
30,000 h at 25 ºC
-
Lighting efficiency (lm/w)
64 lm/W
-
Lúmenes (lm)
950 lm
-
Optics
Wide Flood
-
Photobiological classification
Exempt category
-
Power (W)
15 W
-
Power supply dimensions (mm)
45x141x26 mm
-
Service life
30.000 h
-
Installation type
Flush mount
-
Minimum installation height
180
-
Type of terminal connection
Screw
-
Guarantee
3 years 30,000 h
-
Product net weight
0.506KGM
-
Product gross weight
0.506KGM
-
Packaging quantity
1
-
Packaging height
135MMT
-
Packaging width
145MMT
-
Packaging length
155MMT
-
Packaging volume
3.034DMQ
-
Packaging net weight
0.506KGM
-
Packaging gross weight
0.506KGM
-
Packaging EAN
8421053122242
