Downlight 706.21 Flush mount NW Wide Flood White

REFERENCE NO.: 70621030-484
R.P.: Price on request
PACKAGING: 1 Unit
ECORRAE: Category A
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Description:  SIMON Downlight 706.21, circular, for flush mount installation with LED technology and 50° WIDE FLOOD photometric distribution. Body manufactured using aluminium injection moulding and painted white. Electronic control gear with ON/OFF insulated from the optical body and the heat generated by it. Heat sink made of high-conductance aluminium for optimum LED cooling. Lumens available 950 lm for NW, and total luminaire consumption of 15 W (actual system efficiency of 64 lm/W). CRI>80. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 82 mm diam. x 110 mm depth. Weight: 0.3 kg. IP20. Flush mount height 180 mm Hole diameter 72 mm. Photobiological safety: Exempt category. Supply voltage 100-240V, 50-60 Hz. CE marking.

TECHNICAL INFORMATION

LIGHTING DATA
Colour type:  NW
Colour temperature:  3900 K
CRI:  80
Lumens:  950 lm
Lighting efficiency:  64 lm/w
Optics:  Wide Flood
Light beam aperture angle:  50º
Photobiological classification:  Exempt category
L70:  30,000 h at 25 ºC
Service life:  30.000 h
Maintenance factor:  0.80
Polar photometry:  19783
Conical photometry:  19783
ELECTRICAL DATA
Power:  15 W
Power supply:  100-240 V
Frequency:  50/60 Hz
Control:  ON/OFF
Electrical class :  Type 2
Driver included:  Yes
Type of terminal connection:  Screw
MECHANICAL DATA
IP rating:  44
Operating temperature range:  40 ºC maximum
Weight:  0.3 kg
Installation type:  Flush mount
Minimum installation height:  180 mm
Cut out dimension:  72 mm
Luminaire dimensions:  110x82(ø) mm
Integrated power supply:  No
Power supply dimensions:  45x141x26 mm
PRODUCT DATA
Product range:  706
Model / Family:  Downlights
Contents of box:  1 unit

TECHNICAL FEATURES

CERTIFICATES

LOGISTIC DATA

GALLERY

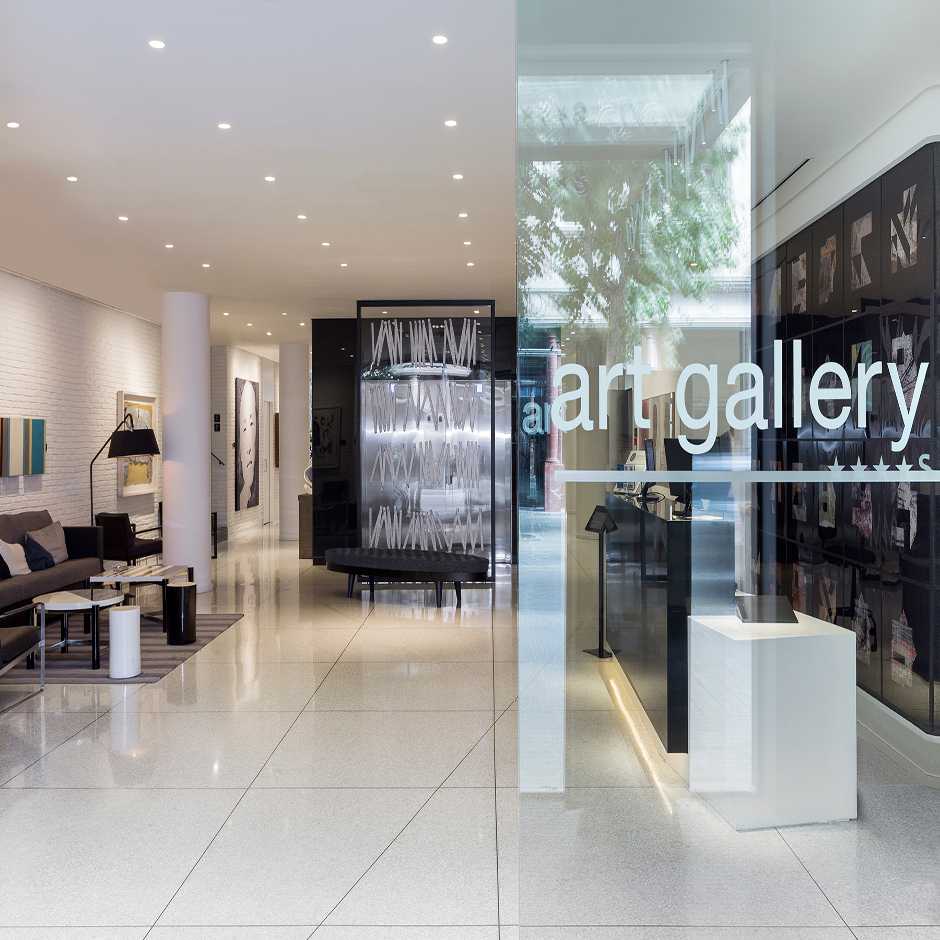

Downlight 70621 application in H10, Barcelona

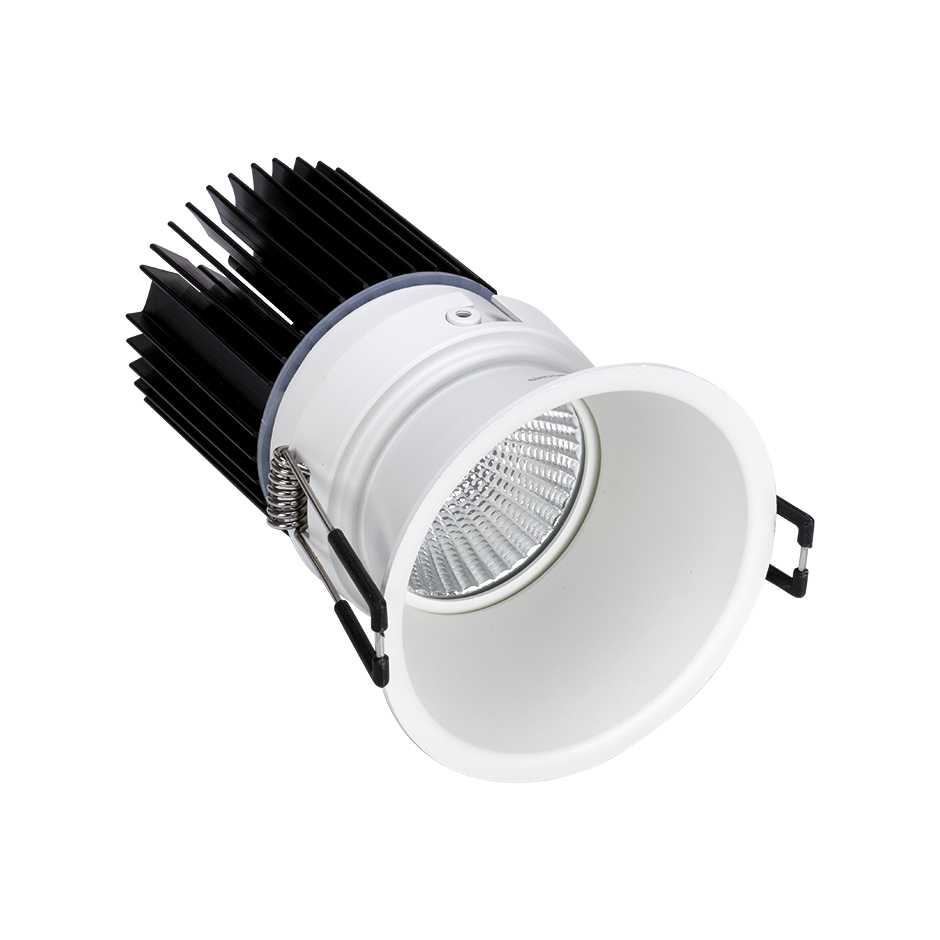

Downlight 706.21 Flush mount NW Wide Flood White perspective view

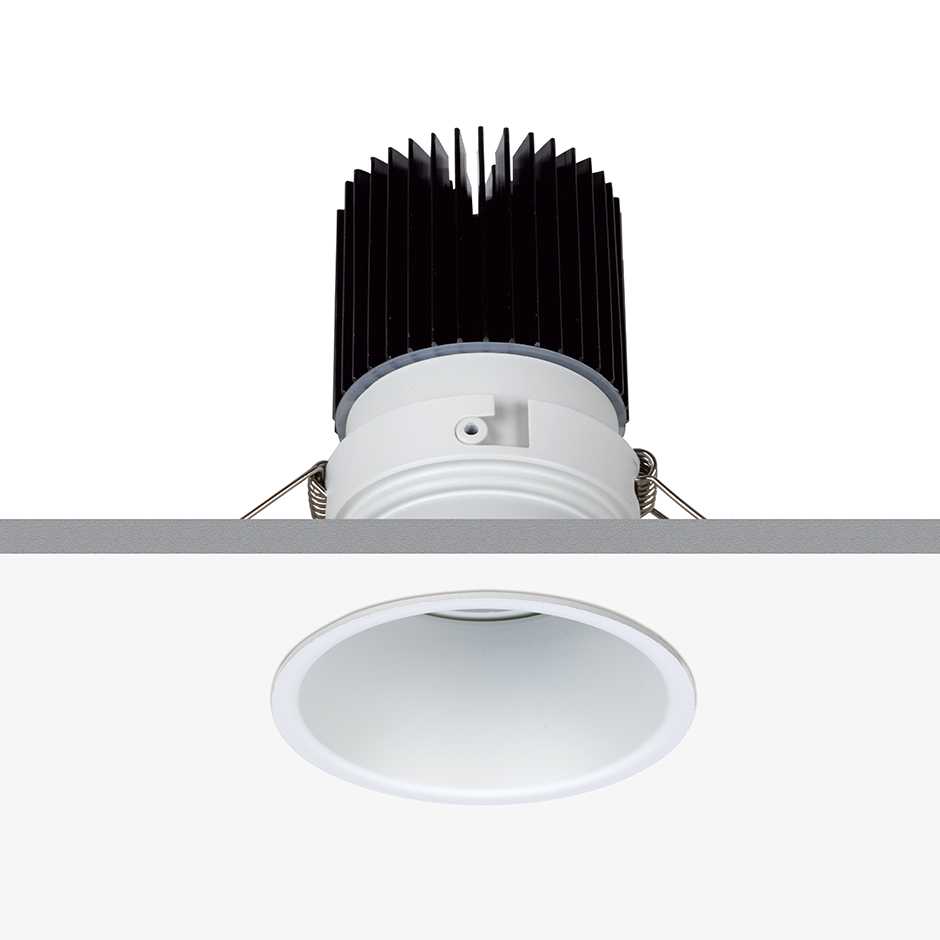

Downlight 706.21 Flush mount NW Wide Flood White installation view


INSTALLATION MANUAL

manual
Instruction sheet Downlight 706.21 Flush mount NW Wide Flood White DOWNLOAD

PRODUCT DECLARATIONS

manual
UE declaration Downlight 706.21 Flush mount NW Wide Flood White DOWNLOAD

PHOTOMETRY

manual
Photometries Gama 706 DOWNLOAD
manual
Photometry Downlight 706.21 Flush mount NW Wide Flood White DOWNLOAD
