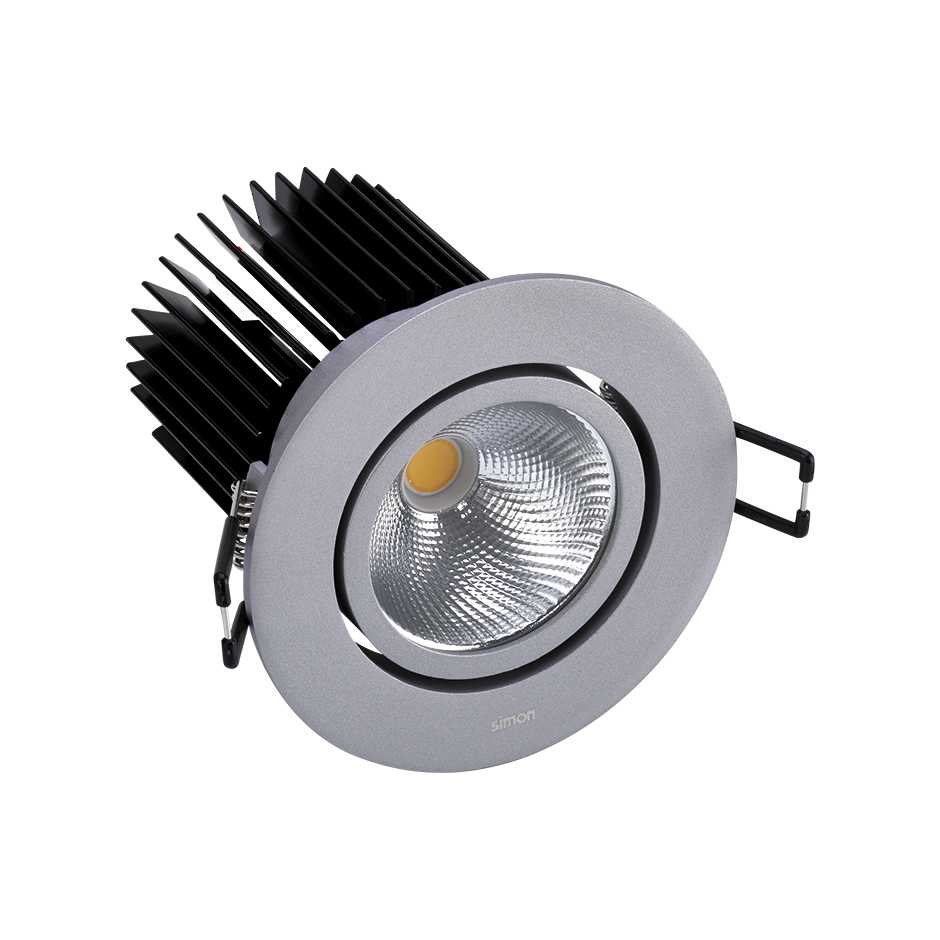

Downlight 705.23 Directional NW Wide Flood 1-10V Aluminium perspective view

Downlight 705.23 Directional NW Wide Flood 1-10V Aluminium perspective view

Downlight 705.23 Directional NW Wide Flood 1-10V Aluminium front view

Downlight 705.23 Directional NW Wide Flood 1-10V Aluminium front view

Downlight 705.23 Directional NW Wide Flood 1-10V Aluminium installation view

Downlight 705.23 Directional NW Wide Flood 1-10V Aluminium installation view

Ref
70523133-484

Downlight 705.23 Directional NW Wide Flood 1-10V Aluminium

Price/Unit
€47.25
Hasta fin de existencias
Packaging quantity
1 Unit
Outstanding Features
Series
Simon 705
Model
Downlights
Range
705
Series Compatibility

Simon 705

Product Information

If you are looking for a uniform lighting, sustainable and long duration, the downlight 705.23 of the collection Simon guarantees a comfortable lighting and with the latest LED technology. Its light provides the space a white tone of a neutral (NW), due to its colour temperature of 3900 K, fully sustainable for the environment by their category A.

With WIDE FLOOD optics for amplitude angle more, it is perfect for lighting in corridors, transit areas, or for general lighting of offices, commercial spaces, etc., and also includes 1-10V protocol of adjustment of the light flux light, adapting it to every need specific.

With a performance of 1080 lm for NW, and a power consumption of the luminaire of 15.5 W, has a power of 100-240 Volts and 50-60 Hz and a service life of 30,000 hours at an average temperature of 25 ºC.

Designed for flush installation, suitable for false ceiling and / or plastered, is finished in Aluminium, which provide an industrial minimalist appearance that integrates seamlessly into all types of spaces.

Basic information
  • Lighting Description

    SIMON Downlight 705.23, circular directional, for flush mount installation with LED technology and 40° WIDE FLOOD photometric distribution. Body manufactured using aluminium injection moulding and painted an aluminium colour. Electronic control gear with 1-10V control, insulated from the luminaire and the optical body and the heat generated by it. Heat sink made of high-conductance aluminium for optimum LED cooling. The luminaire can be inclined up to 30° to the vertical. Lumens available 1080 lm for NW, and total luminaire consumption of 15.5 W (actual system efficiency of 70 lm/W). CRI>80. Lumen maintenance L70 >30,000 h at 25 °C. Luminaire dimensions: 88 mm diam. x 86 mm depth. Weight: 0.4 kg. IP20. Flush mount height 136 mm Hole diameter 72 mm. Photobiological safety: Exempt category. Supply voltage 100-240V, 50-60 Hz. CE marking.

  • Model

    Downlights

  • Range

    705

  • Application

    Ambient lighting

  • Packaging contents

    1 unit

Technical information
  • Frequency (Hz)

    50 - 60 Hz

  • IP Rating

    IP20

  • Operating temperature range (ºC)

    40 ºC maximum

  • Power supply (V~)

    100/240 V~

  • Cut out dimension (mm)

    72 mm

  • Dimensions (mm)

    88 x 86

  • Weight (kg)

    0.4

Lighting Information
  • CRI

    80

  • Colour temperature (k)

    3900 K

  • Colour type

    NW

  • Control

    1-10 V

  • Electrical class

    Type 2

  • L70 (ºC)

    30,000 h at 25 ºC

  • Lighting efficiency (lm/w)

    70 lm/W

  • Lúmenes (lm)

    1080 lm

  • Optics

    Wide Flood

  • Photobiological classification

    Exempt category

  • Power (W)

    15.5 W

  • Power supply dimensions (mm)

    45x141x26 mm

  • Service life

    30.000 h

Installation and maintenance
  • Installation type

    Flush mount

  • Minimum installation height

    136 mm

  • Type of terminal connection

    Screw

Regulation
  • Guarantee

    3 years 30,000 h

Logistics Information
  • Product net weight

    0.502 KGM

  • Product gross weight

    0.502 KGM

  • Packaging quantity

    1

  • Packaging height

    135 MMT

  • Packaging width

    145 MMT

  • Packaging length

    155 MMT

  • Packaging volume

    3.034 DMQ

  • Packaging net weight

    0.502 KGM

  • Packaging gross weight

    0.502 KGM

  • Packaging EAN

    8421053122327
