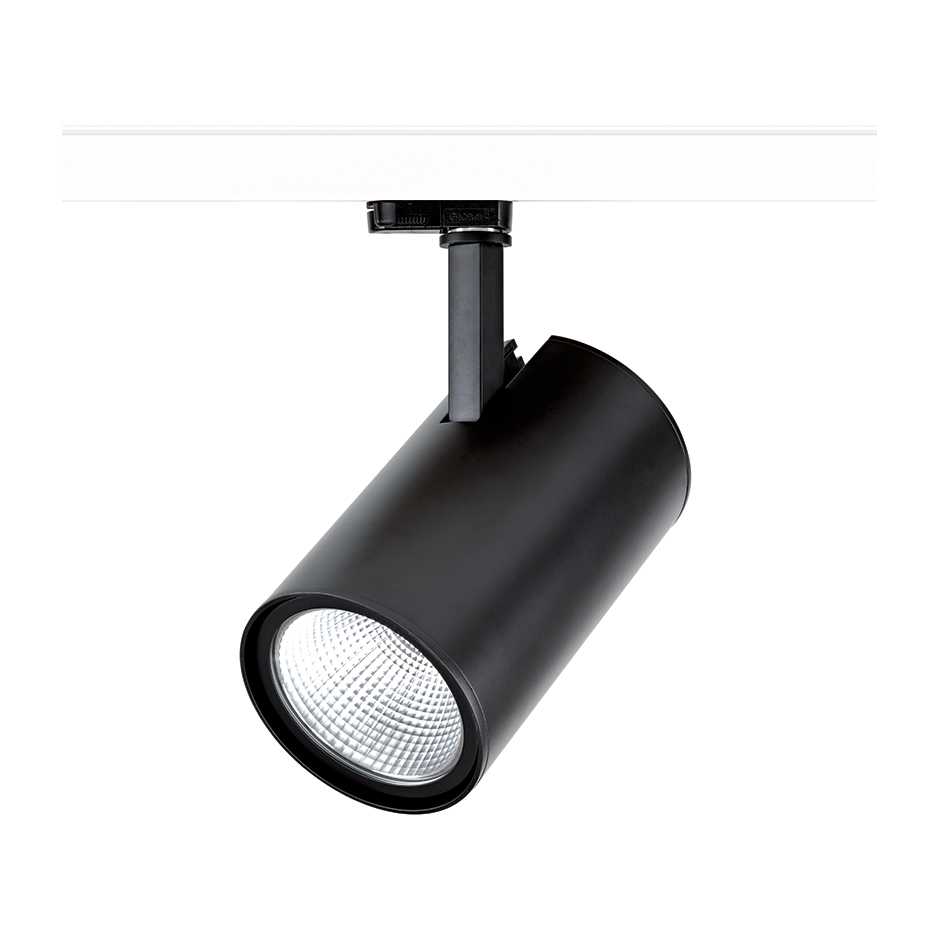

Spotlight 640.01 Rail NW Super Wide Flood Black
Simon 640
With a lighting in white tone neutral (NW) and a temnperatura of 4000 K colour, the spotlight 640 of the collection Simon for indoor lighting, it is ideal for museums, exhibitions or retail thanks to its super Wide Flood optics with a coverage angle of higher amplitude indicator light.
Finishes in black and with 3-phase rail, guarantees not only the total integration of the set in all kinds of decorative spaces and environments, but also provides a more freedom to guide the light beam within the specific space.
Compatible with voltage 120-240 V of power of and 50-60 Hz frequency, it has a luminous light flux 3800 lm by 41 W. his lighting of LED technology, which ensures a service life of the product of 100,000 hours at 25 ° C to LED L70 and 30,000 for L90.
-
Lighting Description
SIMON Spotlight 640.00 for 3-phase rail, with COB LED technology and reflector for SUPER WIDE FLOOD photometric distribution of 60° . Body manufactured in aluminium sheet and painted High purity aluminium reflector and high capacity passive heat sink made of aluminium fully built-in to the cylindrical body of the luminaire. Electronic control gear built into the luminaire. Due to its size and the power supply built into the body, a minimalist design is obtained that reduces the visual impact of its installation in the space. The luminaire can be rotated . degrees horizontally and 360° vertically. 3800 lumens for NW, and total luminaire energy consumption of 41W (actual system efficiency of 93 lm/W). Colour Rendering Index (CRI)>80 Lumen maintenance L70>100,000 h at 25 °C and L90>30,000 h at 25 °C. Photobiological safety: Exempt category Luminaire dimensions:. Weight: IP20. Supply voltage 120-240V, 50-60 Hz. CE marking.
-
Model
Spotlights
-
Range
640
-
Application
General lighting
-
Frequency (Hz)
50 - 60 Hz
-
IP Rating
IP20
-
Operating temperature range (ºC)
35 ºC maximum
-
Power supply (V~)
120/240 V~
-
Dimensions (mm)
130 x 220
-
Orientation degrees (ºC)
360ºx90º
-
Rail adaptor dimension (mm)
102 x 156 x 200 mm
-
Weight (kg)
2.2
-
Chromatics CRI Icons
-
CRI
80
-
Colour temperature (k)
4000 K
-
Colour type
NW
-
Control
On/Off
-
Electrical class
Type 1
-
L70 (ºC)
100,000 h at 25º C
-
L90 (ºC)
30,000 h at 25 ºC
-
Lighting efficiency (lm/w)
93 lm/W
-
Lúmenes (lm)
3800 lm
-
Optics
Super Wide Flood
-
Photobiological classification
Exempt category
-
Power (W)
41 W
-
Service life
50.000 h
-

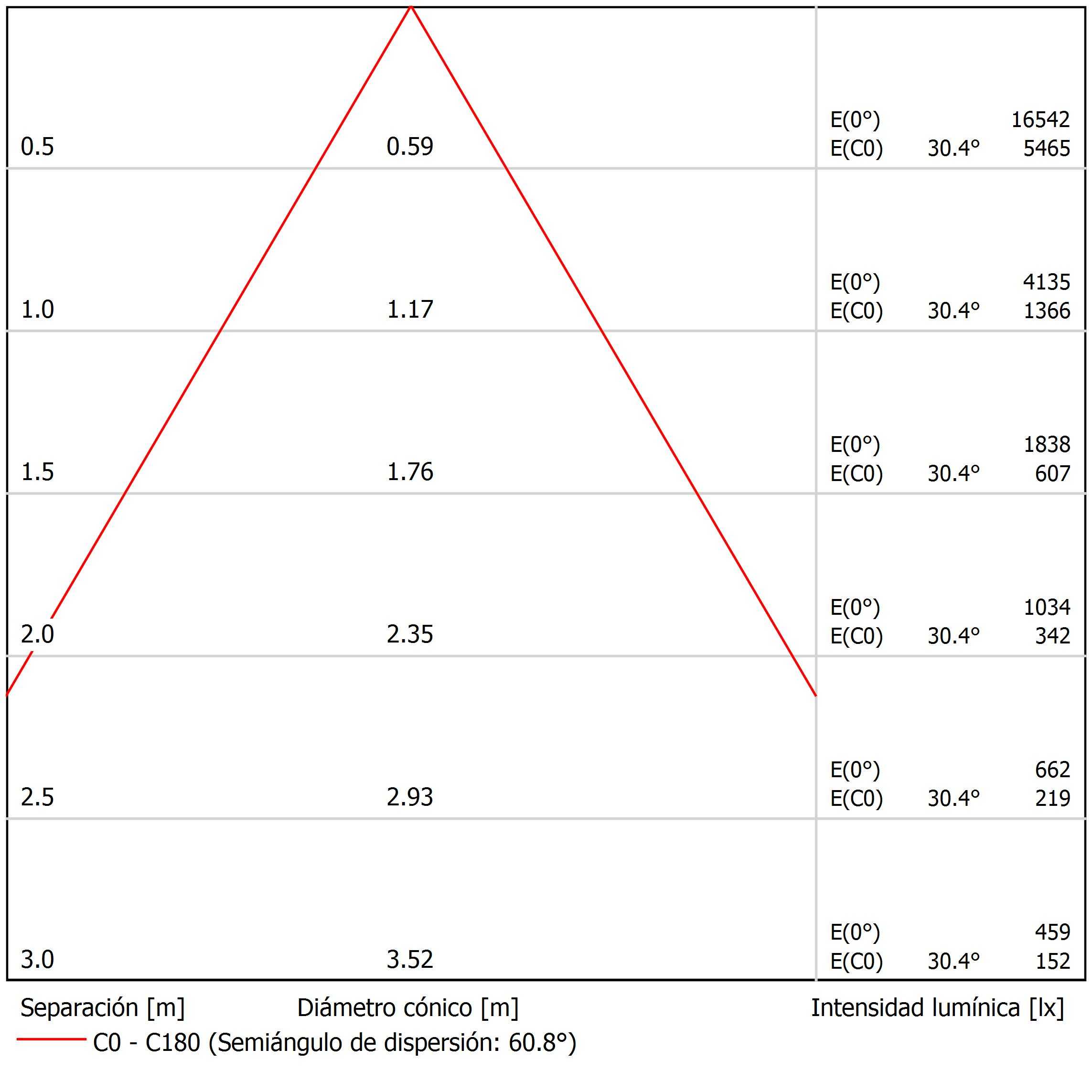

Photometry – Conical
-

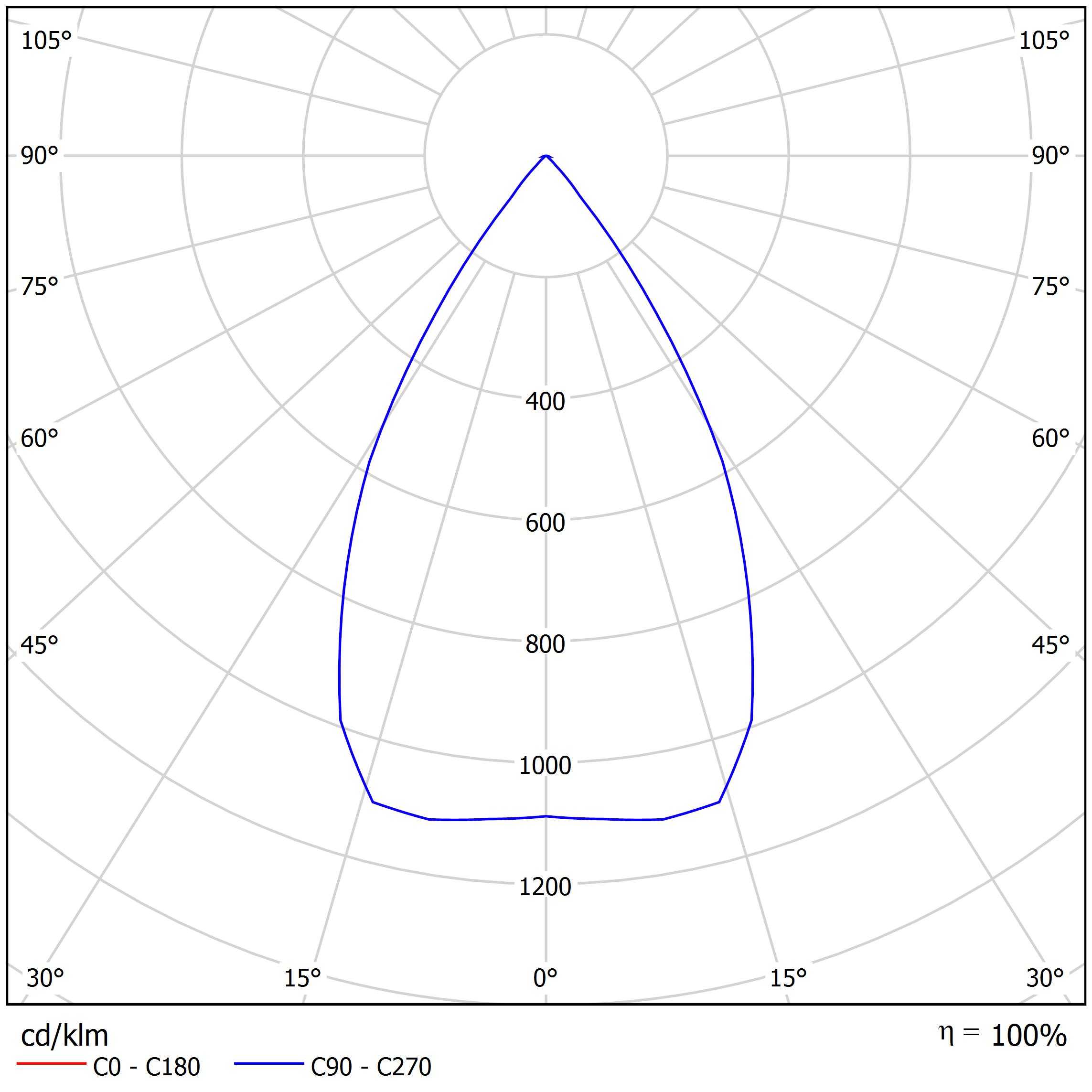

Photometry – Polar
-
Installation type
3-phase rail
-
Guarantee
5 years 50,000 h
-
Product net weight
2.15KGM
-
Product gross weight
2.35KGM
-
Packaging quantity
1
-
Packaging height
150MMT
-
Packaging width
150MMT
-
Packaging length
340MMT
-
Packaging volume
7650000MMQ
-
Packaging net weight
2.15KGM
-
Packaging gross weight
2.35KGM
-
Packaging EAN
8421053187463
