Spotlight 640.01 Rail WW CRI92 Flood Black

REFERENCE NO.: 64001038-393
R.P.: Price on request
PACKAGING: 1Unit
ECORRAE: Category B
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Description:  SIMON spotlight 640.00 for 3-phase rail, with COB LED technology and reflector for a FLOOD photometric distribution of 36º. Body manufactured in aluminium sheet and painted High purity aluminium reflector and high capacity passive heat sink made of aluminium fully built-in to the cylindrical body of the luminaire. Electronic control gear built into the luminaire. Due to its size and the power supply built into the body, a minimalist design is obtained that reduces the visual impact of its installation in the space. The luminaire can be rotated . degrees horizontally and 360° vertically. Lumens available 3100 lm for WW, and total luminaire energy consumption of 41W (actual system efficiency of 76 lm/W). Colour Rendering Index (CRI)>92 Lumen maintenance L70>100,000 h at 25 °C and L90>30,000 h at 25 °C. Photobiological safety: Exempt category Luminaire dimensions:. Weight: IP20. Supply voltage 120-240V, 50-60 Hz. CE marking.

TECHNICAL INFORMATION

LIGHTING DATA
Colour type:  WW
Colour temperature:  3000 K
CRI:  92
Lumens:  3100 lm
Lighting efficiency:  76 lm/W
Optics:  Flood
Light beam aperture angle:  36º
Photobiological classification:  Exempt category
Directional:  Yes
Orientation degrees:  360ºx90º
L70:  100,000 h at 25º C
L90:  30,000 h at 25 ºC
Service life:  50.000 h
Maintenance factor:  0.85
Polar photometry:  22431

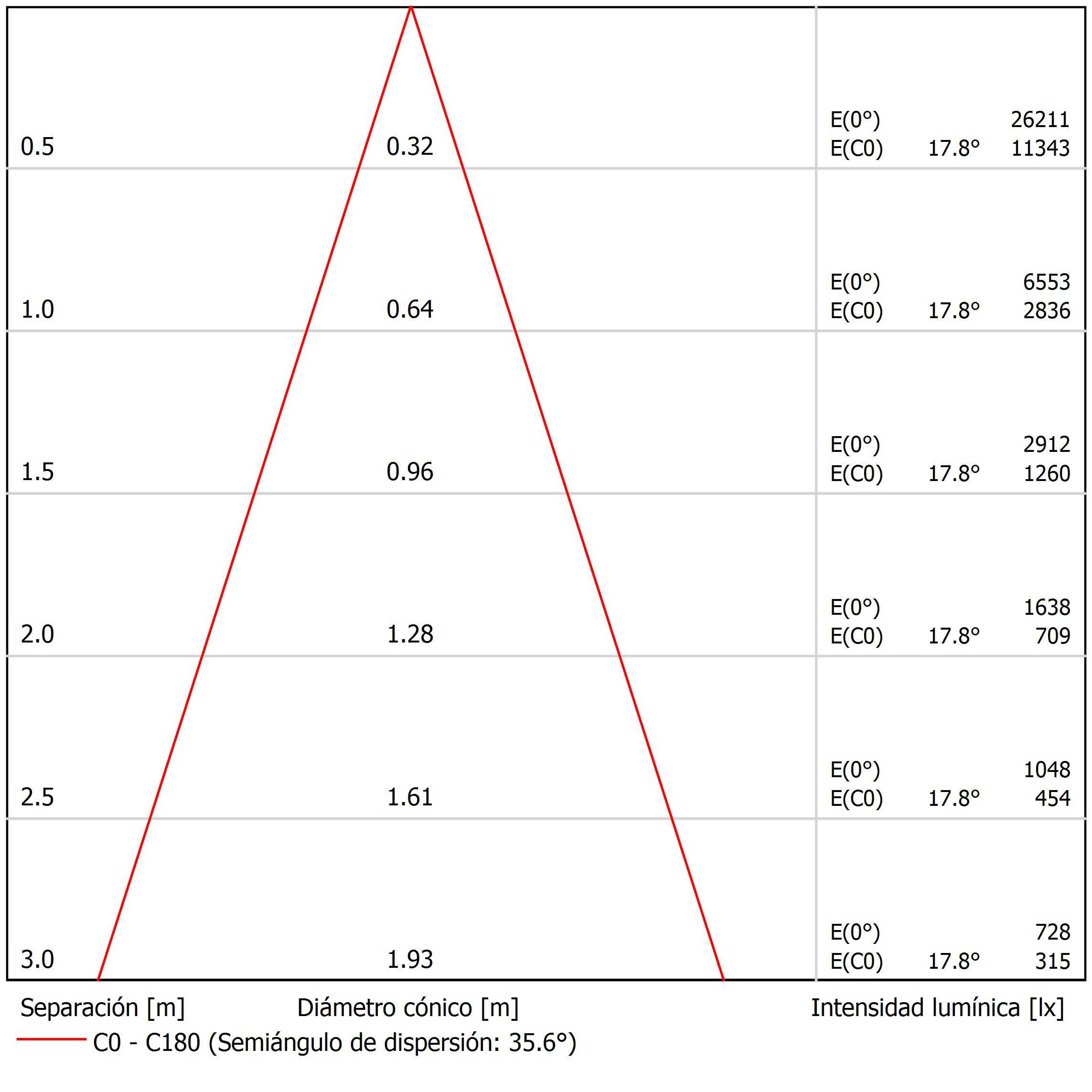

Conical photometry:  22431
ELECTRICAL DATA
Power:  41W
Power supply:  120-240 V
Frequency:  50/60 Hz
Control:  ON/OFF
Electrical class:  Type 1
Driver included:  Yes
MECHANICAL DATA
IP rating:  20
Operating temperature range:  35 ºC maximum
Weight:  2,2 kg
Installation type:  3-phase rail
Rail adaptor dimension:  102x156-200 mm
Luminaire dimensions:  130x220 mm
PRODUCT DATA
Product range:  640
Model / Family:  Spotlights
Guarantee:  5 years 50,000 h
Accessory 1:  89911530-039 Surface mount base for spotlight White
Accessory 2:  89911538-039 Surface mount base for spotlight Black
Accessory 3:  89911630-039 Flush mount base for spotlight White
Accessory 4:  89911638-039 Flush mount base for spotlight Black

TECHNICAL FEATURES

CERTIFICATES

LOGISTIC DATA

Packaging quantity:  1
Box measurement unit:  MM
Height:  150.000
Wide:  150.000
Depth:  340.000
Box volume:  7650000.000
Box volume measurement unit:  MMQ
Net weight of box:  2.150
Gross weight of box:  2.350
Unit weight of box:  KGM
EAN code:  8421053187418

GALLERY

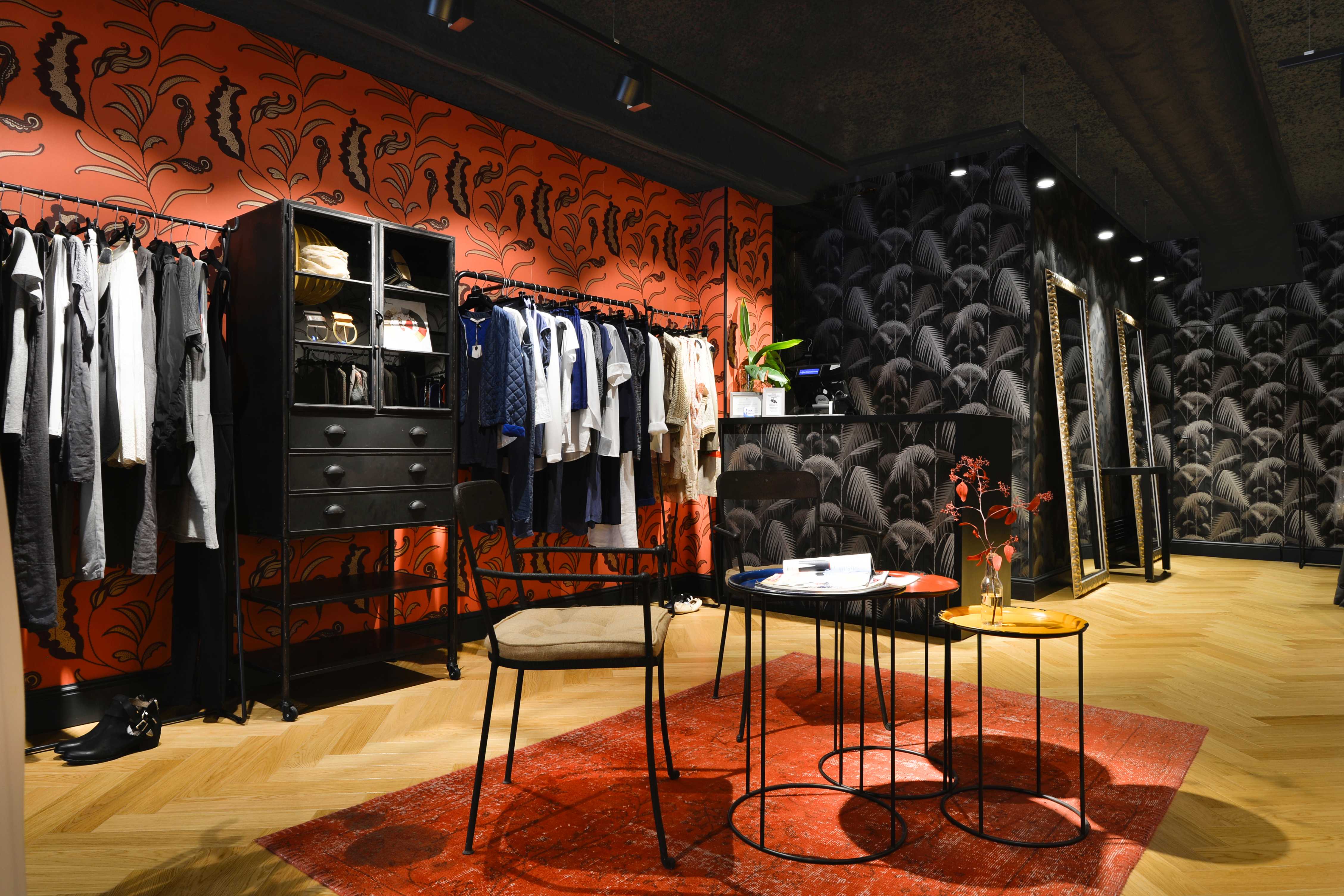

Spotlight 640 application in La fee Maraboute, Mallorca

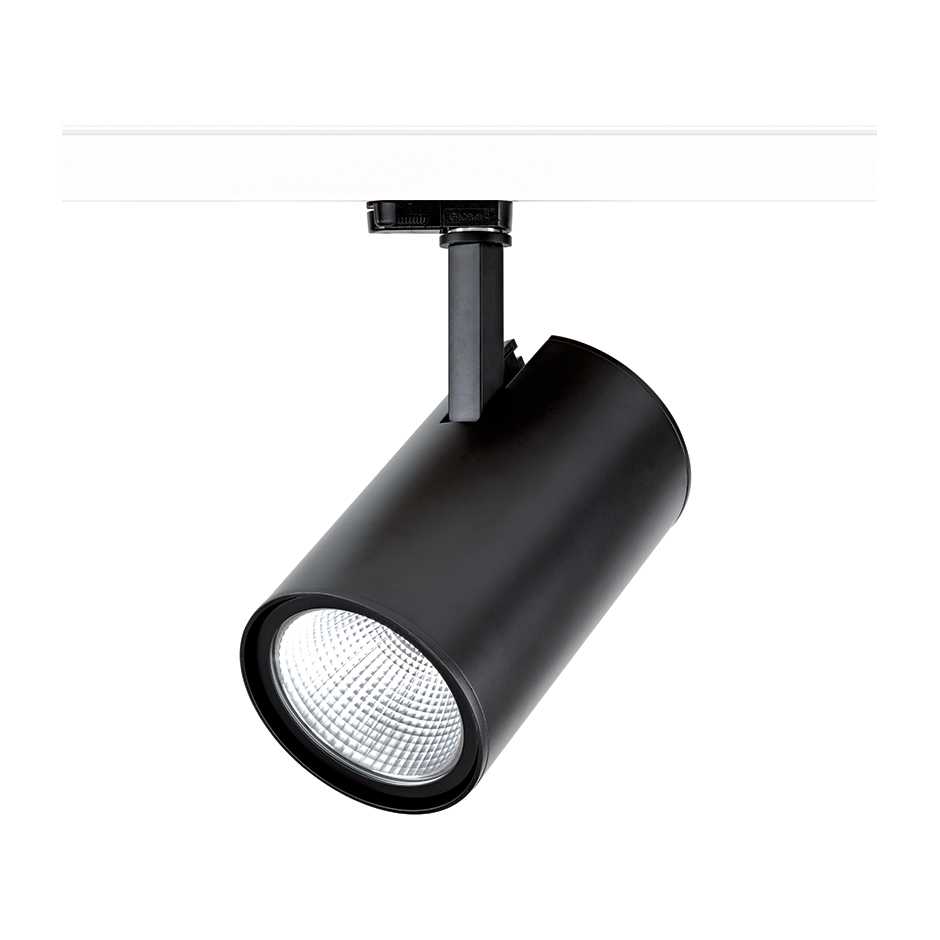

Spotlight 640.01 Rail WW CRI92 Flood Black perspective view

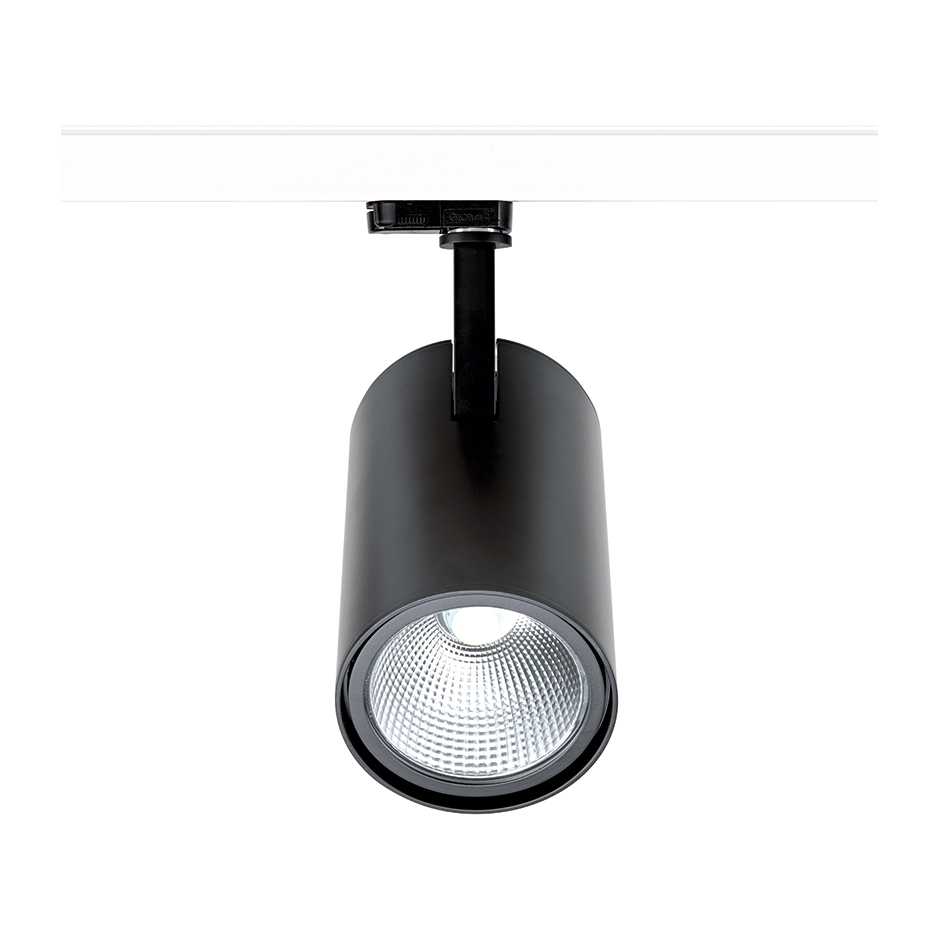

Spotlight 640.01 Rail WW CRI92 Flood Black installation view


PRODUCT DECLARATIONS

PHOTOMETRY

manual
Photometries Gama 640 DOWNLOAD
