BASIC INFORMATION
Description:

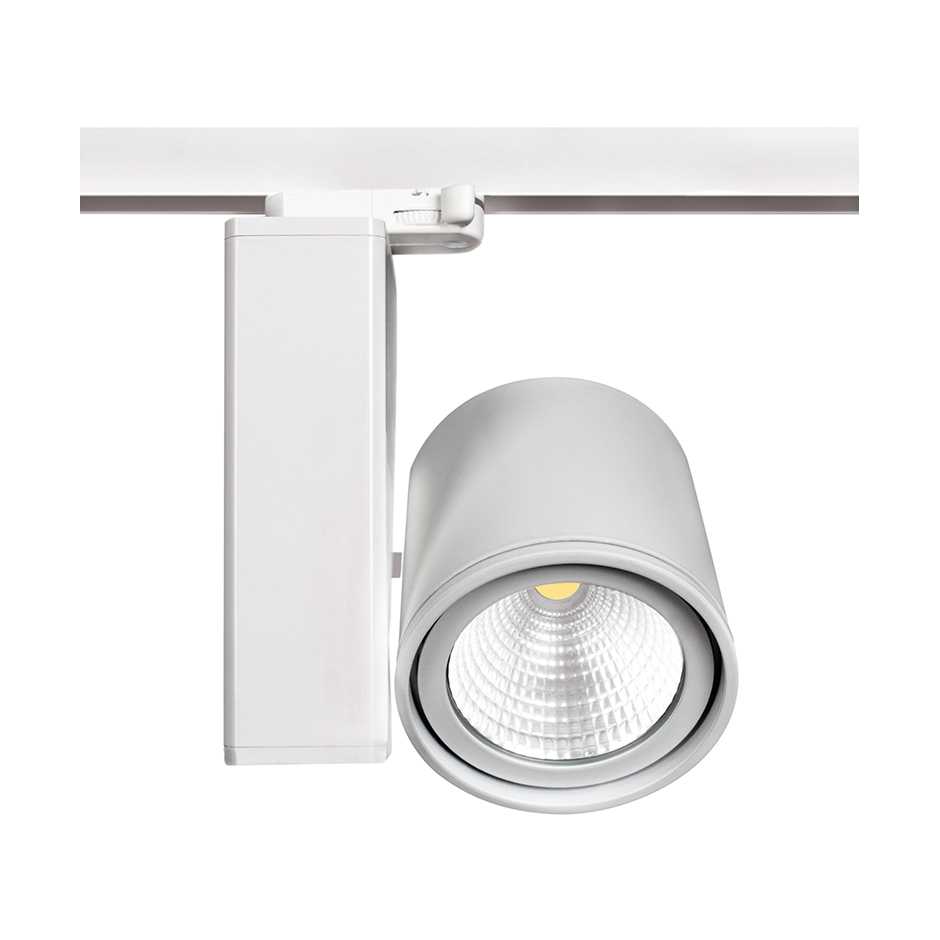

SIMON Spotlight 640.00 for 3-phase rail, with COB LED technology and reflector for 40° WIDE FLOOD photometric distribution.

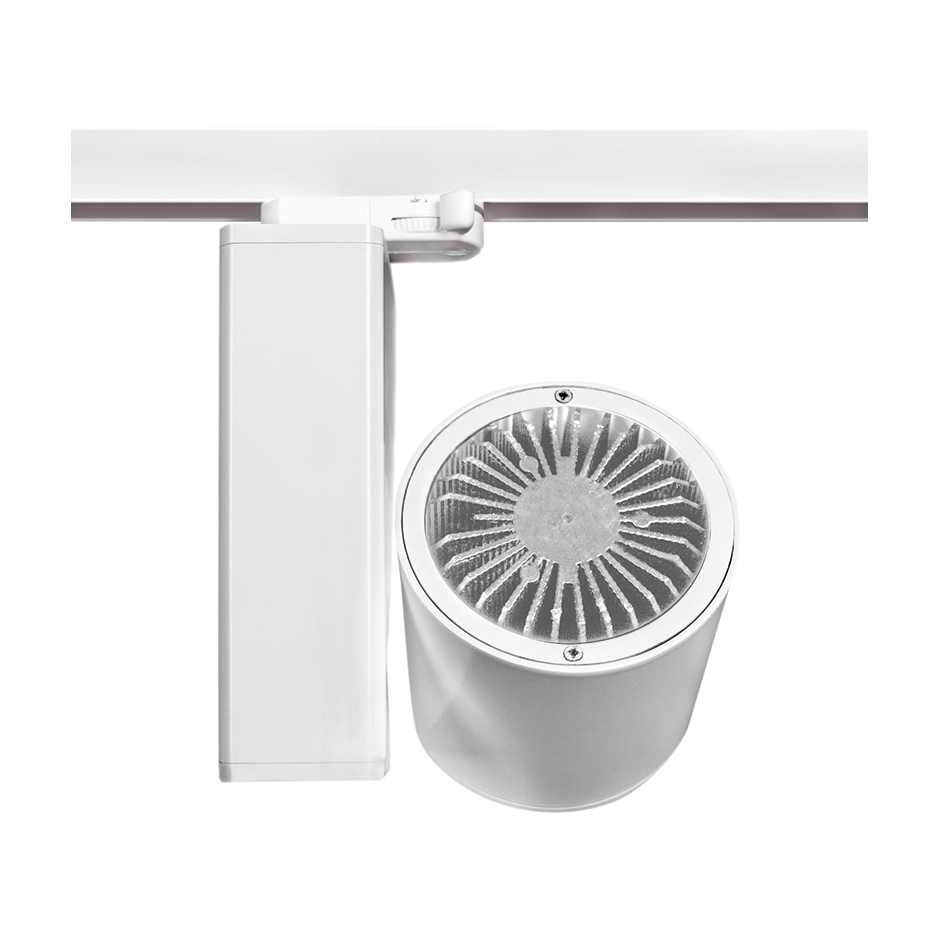

Body manufactured using aluminium injection moulding and painted white. High purity aluminium reflector and high capacity passive heat sink made of aluminium fully built-in to the cylindrical body of the luminaire.
Removable front, complete with protective glass, to facilitate the installation of dichroic filters to modify the colour temperature and hue of the light.
Electronic control gear built into the luminaire, insulated from the optical body and the heat generated by it.
The luminaire can be rotated 360° horizontally and 220° vertically.
Lumens available 2500 lm for WW, and total luminaire consumption of 30W (actual system efficiency of 84 lm/W). Colour rendering index (CRI)>80.
Lumen maintenance L70 >100,000 h at 25 °C and L90>30,000 h at 25°c.
Photobiological safety: Exempt category
Luminaire dimensions: 100x102 mm. Weight: 1.4 kg IP 20.
Supply voltage 120-240V, 50-60 Hz.
CE marking.
TECHNICAL INFORMATION
LIGHTING DATA
Colour type:
WW
Colour temperature:
3000 K
CRI:
80
Lumens:
2500 lm
Lighting efficiency:
84 lm/w
Optics:
Wide Flood
Light beam aperture angle:
40º
Photobiological classification:
Exempt category
Directional:
Yes
Orientation degrees:
360ºx220º
L70:
100,000 h at 25 ºC
L90:
30.000h to 25ºC
Service life:
50.000 h
Maintenance factor:
0.85
Polar photometry:
![19734]()
Conical photometry:
![19734]()
ELECTRICAL DATA
Power:
30 W
Power supply:
120-240 V
Frequency:
50/60 Hz
Control:
ON/OFF
Electrical class :
Type 1
Driver included:
Yes
MECHANICAL DATA
IP rating:
20
Operating temperature range:
35 ºC maximum
Weight:
1.4 kg
Installation type:
3-phase rail
Rail adaptor dimension :
102x156-200 mm
Luminaire dimensions:
100x102 mm
PRODUCT DATA
Product range:
640
Model / Family:
Spotlights
Accessory 1:
89911530-039 Surface mount base White
Accessory 2:
89911538-039 Surface mount base Black
Accessory 3:
89911630-039 Flush mount base Graphite
Accessory 4:
89911638-039 Flush mount base Black
Accessory 5:
64095031-039 Fresh Food Meat Filter
Accessory 6:
64095032-039 Fresh Food Delicatessen Filter
Accessory 7:
64095033-039 Fresh Food Bakery Filter
Contents of box:
1 unit
