Simon 500 Cima

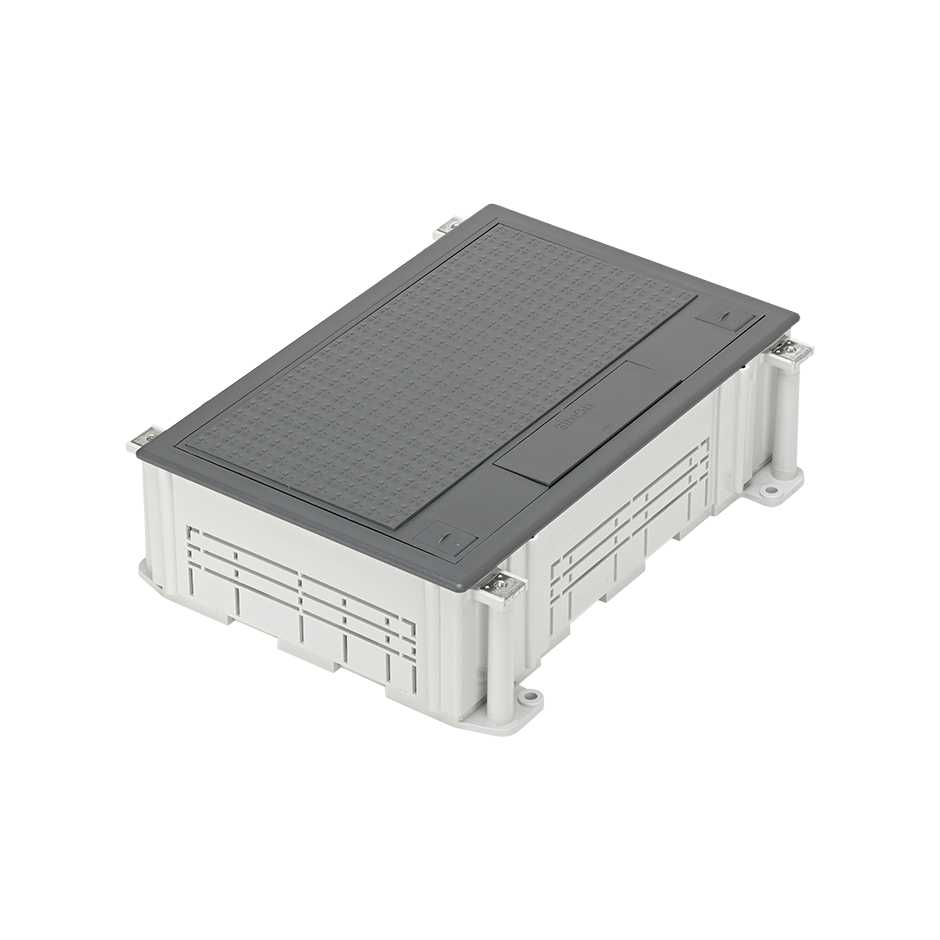

The plastic tray Simon 500 Cima grey in colour, it is designed to be the perfect complement of an electrical power supply included in an adjustable floor box with capacity for eight elements.
This type of floor boxes are often installed directly embedded in concrete floors, although it can also be done in raised floor. The raised floor is slightly high on the concrete floor, and provides the installation of the box without the need of tray, but in the case of the case on the concrete floor tray, this is essential for the protection of the box.
The tray for adjustable floor box has dimensions of 220 x 287 millimetres and 80 millimetres of depth. Thanks to its beautiful grey colour, this tray is ideal to complement with a concrete floor box for eight elements finished in the same colour grey (ref.52050004-035), but also with a floor box of the same features but graphite colour, with the that perfectly combines.
The material with which it is manufactured is added value of the product, as this is self-extinguishing thermoplastic, and not propagate the spread in case of fire, increasing the security of the product.
To complete the installation of the product, it must be combined with a concrete floor box for 8 elements in a grey (ref.52050004-035) or graphite finish (ref.52050004-038).
Tray and protective cover with installation manual
Number of pre-punched holes Ø30 mm
2, 4, 6, 8 and 12 elements
No holes or contours, with 2000V at 50 Hz for 1 minute
Heat resistance (ºC)
+125ºC (according rule IEC 60695-10-2)
Insulation resistance (V-MΩ)
>5 MOhms at 500V
Max temp during construction work (ºC)
Number of side entrances
Recess dimension (mm)
220 x 286,5 mm
Temperature range during installation (ºC)
-5 to 60 ºC
Channel entry dimensions (mm)
De 100 x 20 até 130 x 40 mm
Depth of adjustment range (mm)
Entre 80 e 130 mm
220 x 287 x 80
+850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)
Horizontal and vertical
Specially designed for installation in concrete floors
Number of channel entries
Screws required for fixing to the slab
Mínimo 2 (1 por lado, em diagonal). É recomendado fixar a cuba com 4 parafusos para uma fixação total
Type of fastening
Directive 2014/35/UE LVD + EN 60670-23:2008
Product net weight
Product gross weight
Packaging net weight
