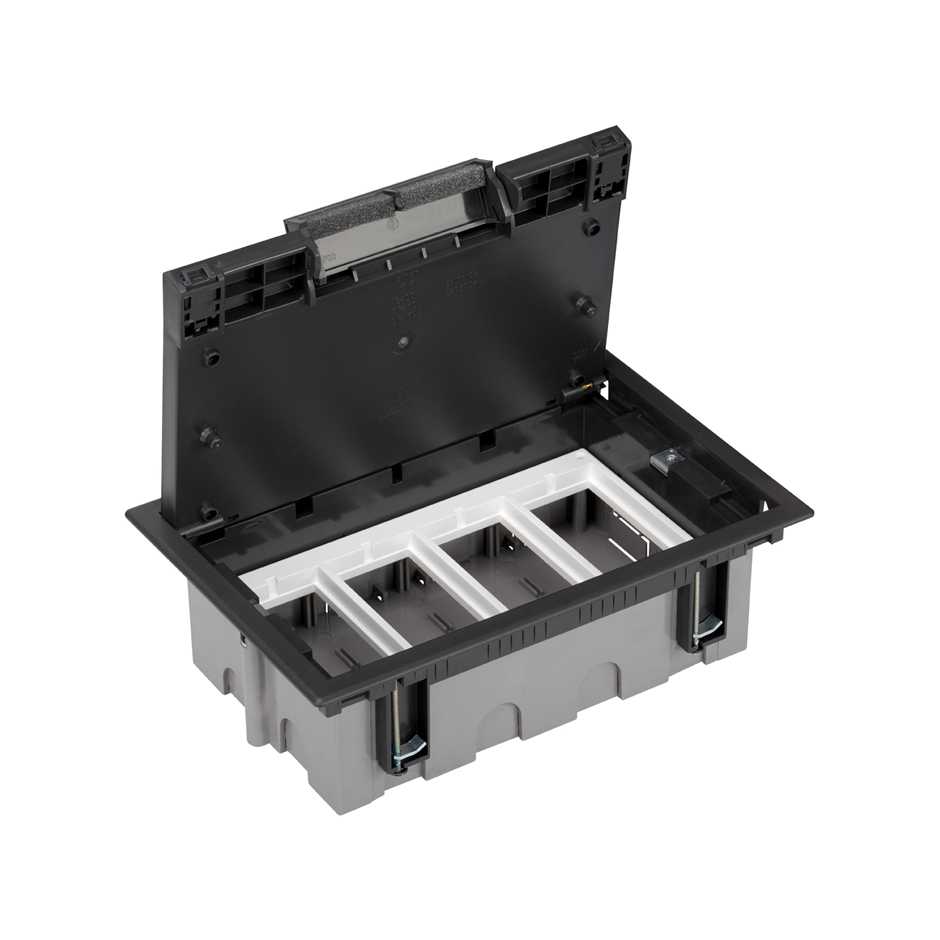

Adjustable floor box for 8 elements Simon 500 Cima graphite front view

Adjustable floor box for 8 elements Simon 500 Cima graphite front view

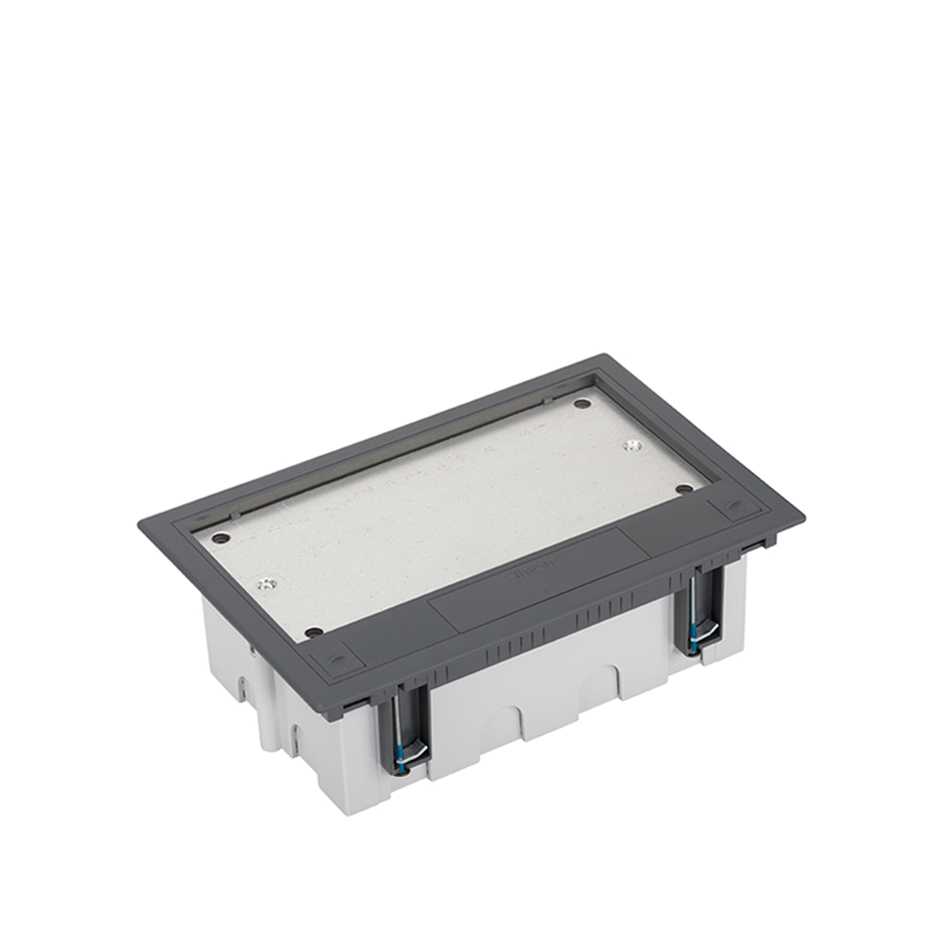

Adjustable floor box for 8 elements with closed cover Simon 500 Cima graphite front view

Adjustable floor box for 8 elements with closed cover Simon 500 Cima graphite front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Adjustable floor box for 8 elements Simon 500 Cima graphite packaging

Adjustable floor box for 8 elements Simon 500 Cima graphite packaging

Ref
52050004-038

Adjustable floor box for 8 elements in concrete floor installation graphite Simon 500 Cima

Price/Unit
€81.24
Packaging quantity
1 Unit

Available downloads

Data sheet

52050004-038.pdf

Installation manual
Product declaration
Outstanding Features
Series
Simon 500 Cima
Series Compatibility

Simon 500 Cima

Product Information

Simon has managed, through its 500 Cima range, to provide in a single way, connectivity solutions for your office, meeting room, exhibition hall, conference, etc.

This is thanks to placement, expansion and convenient system when it comes to resolve the problems of installation of electrical, voice, data and multimedia, and all in a single place without interference and in compliance with the strictest regulations.

New click-terminal connection, insert, tighten and it’s ready, without the need to strip the wire. New centre frame system for separate installation of electrical and Voice and Data circuits. Can be installed without tools. Connection of sockets using a linker.

This is an adjustable mechanism protection box for concrete floor (70 mm to 100 mm).

Two types of service boxes for installation in concrete floors: plastic service box for final connection and a metal one for junction boxes.

Flush-mounted into concrete floors. Adjustable floor box for 8 elements in concrete floor installation graphite Simon 500 Cima. To complete the installation of the product, once configured, it must be combined with a plastic tray (ref.52052104-035). Alternatively, it may be combined with the flush-mount trim cover (ref.52053104-038) in cases where you do not install the same floor covering. For placing 8 elements and / or 8 modules. Specially designed to be installed in concrete floor, although it is also suitable for installation in raised floor. (-5 to +60 ºC + 90 ºC UNE-EN 60.670-23).

Metal components with self-extinguishing and halogen-free thermoplastic insulation that guarantees no flame propagation in case of fire and low toxicity in case of smoke. Finish Graphite. Plastic.

Compatible with all Simon accessories and universal RJ45 connectors.

Basic information
  • Compatibility

    Simon 500 Cima and Simon 27 Play/Simon K45 mechanisms (using a specific adaptor)

  • Remarks

    To complete the installation of the product, once configured, it must be combined with a plastic tray (ref.52052104-035). Alternatively, it may be combined with flush-mount trim cover (ref.52053104-038) in cases where the same floor lining is not installed.

  • Finish

    Graphite

  • Material

    Plastic

  • Packaging contents

    Floor box, metal partition wall, ground connection cable, screws and installation manual

Technical information
  • Market available

    CE

  • IK Classification

    8

  • Number of clamp-holder holes

    12

  • Number of pre-punched holes Ø12_5 mm

    4

  • Number of pre-punched holes Ø20 mm

    4

  • Number of pre-punched holes Ø26 mm

    4

  • RAL

    7021

  • Available in

    2, 4, 6, 8 and 12 elements

  • Dielectric strength

    No holes or contours, with 2000V at 50 Hz for 1 minute

  • Electromagnetic immunity for VDM wiring

    Secured by installing the metal partition wall in the housings fitted into the box for this purpose.

  • Heat resistance (ºC)

    +125ºC (according rule IEC 60695-10-2)

  • Insulation resistance (V-MΩ)

    >5 MOhms at 500V

  • IP Rating

    IP4X

  • Max temp during construction work (ºC)

    +90 ºC

  • Maximum load (kg)

    1300kg

  • Number of side entrances

    12

  • Protection against entry of dust and small objects

    Yes, thanks to the inclusion of protective foam

  • Recess dimension (mm)

    170 x 265 mm

  • Temperature range during installation (ºC)

    -5 to 60 ºC

  • Version

    8 elements

  • Depth (mm)

    76 mm

  • Depth of adjustment range (mm)

    76 mm - 100 mm

  • Dimensions (mm)

    187 x 283 x 76

  • Elevation of frame from ground level (mm)

    3,2 mm

  • Flip-up cover dimensions (mm)

    160 x 256 x 15 mm

  • Free space in inner box with maximum adjustment (mm)

    38 mm

  • Free space in inner box with minimum adjustment (mm)

    13 mm

  • Lining flush mount dimension (mm)

    168 x 264 mm no caso de utilizar cuba metálica

  • Tray flush mount dimension (mm)

    220 x 286,5 mm cuba plástica e 363 x 363 mm cuba metálica

Installation and maintenance
  • Number of cover opening positions

    2

  • Personalisation of flush-mount cover dimensions (mm)

    118 x 247 x 8 mm

  • Can be installed in tray

    Plástica e metálica

  • Claw range of operation (mm)

    Between 14 and 54 mm

  • Extinguishing (ºC)

    +850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)

  • Installation direction

    Horizontal and vertical, depending on the installation of the floor tray

  • Installation type

    Especially designed to be installed in concrete floors, although it is also suitable for installation in raised floors

  • Removal of components

    Only with tool

  • Removal of the frame

    Only with tool

  • Type of fastening

    Using fastening claws on the concrete tray (supplied with the floor box)

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + EN 60670-23:2008

Logistics Information
  • Product net weight

    1.599 KGM

  • Product gross weight

    1.599 KGM

  • Product EAN

    8421053092774

  • Packaging quantity

    1

  • Packaging height

    75 MMT

  • Packaging width

    186 MMT

  • Packaging length

    282 MMT

  • Packaging volume

    3152700 MMQ

  • Packaging net weight

    1.599 KGM

  • Packaging EAN

    8421053092774
