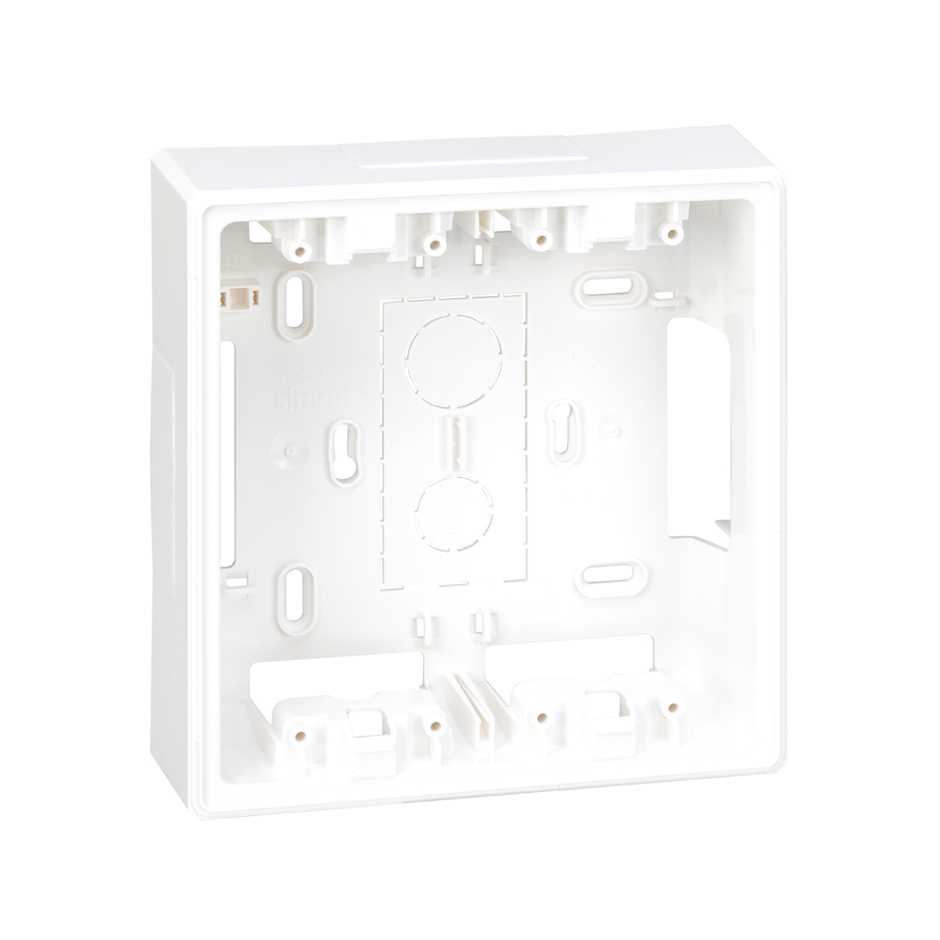

Flush-mount wall box base for 2 double elements Simon 500 Cima white front view

Flush-mount wall box base for 2 double elements Simon 500 Cima white front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Flush-mount wall box base for 2 double elements Simon 500 Cima white packaging

Flush-mount wall box base for 2 double elements Simon 500 Cima white packaging

Flush-mount wall box base for 2 double elements Simon 500 Cima white front view

Flush-mount wall box base for 2 double elements Simon 500 Cima white front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Flush-mount wall box base for 2 double elements Simon 500 Cima white packaging

Flush-mount wall box base for 2 double elements Simon 500 Cima white packaging

Ref
51050002-030

Flush-mount wall box base for 2 double elements white Simon 500 Cima

Price/Unit
€8.13
Packaging quantity
1 Unit

Available downloads

Data sheet

51050002-030.pdf

Installation manual

  1. Hoja de instrucciones cajas de pared Simon 500 Cima_2.pdf [9MB]

Product declaration

  1. UES0089_17.pdf [518KB]

Ask for advice
Outstanding Features
Series
Simon 500 Cima
Series Compatibility

Simon 500 Cima

Surface mount or flush-mount wall box kit for 2 double elements Simon 500 Cima white front view
Ref
51000201-030
Surface mount or flush-mount wall box kit for 2 double elements with 2 double socket outlets white Simon 500 Cima
Surface mount or flush-mount wall box kit for 2 double elements Simon 500 Cima white front view
Ref
51000203-030
Surface mount or flush-mount wall box kit for 2 double elements with 1 dual UPS and 2 plates for 1 RJ45 white Simon 500 Cima
Surface mount or flush-mount wall box kit for 2 double elements Simon 500 Cima white front view
Ref
51000202-030
Surface mount or flush-mount wall box kit for 2 double elements with 1 double socket, 2 plates for 1 RJ45 white Simon 500 Cima
Surface mount or flush-mount wall box kit for 2 double elements Simon 500 Cima white front view
Ref
51000204-030
Surface mount or flush-mount wall box kit for 2 double elements with 1 double socket and 2 plates 3M® 1 RJ45 white Simon 500 Cima
Product Information
Downloads
Support
Basic information

  • Compatibility

    Simon 500 Cima and Simon 27 Play/Simon K45 mechanisms (using specific adaptors), combinable with the Simon Trunking range

  • Remarks

    Alternatively, you can screw the frame holders into the box base if you need additional fastening.

  • Finish

    White

  • Material

    Plastic

  • Packaging contents

    Surface-mount box base, fixing studs, screws, installation manual

Technical Information

  • Market available

    CE

  • IK Classification

    7

  • Number of clamp-holder holes

    6

  • Number of pre-punched holes 40 x 80 mm

    1

  • Number of pre-punched holes Ø20 mm

    1

  • Number of pre-punched holes Ø25 mm

    1

  • Available in

    2, 3 and 4 dual elements

  • Dielectric strength

    No holes or contours, with 2000V at 50 Hz for 1 minute

  • Electromagnetic immunity for VDM wiring

    Secured by installing the metal partition wall in the housings fitted into the box for this purpose.

  • Heat resistance (ºC)

    +125ºC (according rule IEC 60695-10-2)

  • Insulation resistance (V-MΩ)

    >5MOhms at 500V

  • IP Rating

    IP4X

  • Max temp during construction work (ºC)

    +60 ºC

  • Number of housings for ground connection

    1

  • Number of modules

    4

  • Number of side entrances

    5

  • Temperature range during installation (ºC)

    -5 to 60 ºC

  • Version

    2 double elements

  • Depth (mm)

    50 mm

  • Dimensions (mm)

    160 x 167 x 50

Installation and maintenance

  • Extinguishing (ºC)

    +850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)

  • Installation direction

    Vertical, corresponding with the direction of the mechanisms

  • Installation type

    Suitable for surface-mount wall installation

  • Removal of components

    Only with tool

  • Type of fastening

    Using the screws supplied

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60670-1:2005 + IEC 60884-1 Ed 3.2

Logistics Information

  • Product net weight

    0.3 KGM

  • Product gross weight

    0.3 KGM

  • Product EAN

    8421053101186

  • Packaging quantity

    1

  • Packaging height

    75 MMT

  • Packaging width

    100 MMT

  • Packaging length

    170 MMT

  • Packaging volume

    1.275 DMQ

  • Packaging net weight

    0.3 KGM

  • Packaging gross weight

    0.3 KGM

  • Packaging EAN

    8421053101186
