Flush-mount wall frame and frame holders for 3 double elements aluminium Simon 500 Cima

REFERENCE NO.: 51010103-033
R.P.: Price on request
PACKAGING: 10 Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 500 Cima
Version:  3 double elements
Number of modules:  6
Finish:  Aluminium
Available in:  1, 2, 3, 4 and 6 double elements
KIT availability:  Yes
Compatibility:  Simon 500 Cima and Simon 27 Play/Simon K45 mechanisms using a specific adaptor
Packaging contents:  Flush-mount wall frame, frame holders, metal partition wall, ground connection cable and installation manual
Remarks:  Alternatively, you can screw the frame holders into the box if additional fastening is required.

TECHNICAL INFORMATION

Dimensions:  220 x 164 mm
Depth:  21 mm
Heat resistance:  +125 ºC (in accordance with standard IEC 60695-10-2)
Extinguishing :  +850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)
Insulation resistance:  >5MOhms at 500V
Dielectric strength:  No holes or contours, with 2000V at 50 Hz for 1 minute
Electromagnetic immunity for VDM wiring:  Secured by installing the metal partition wall in the housing fitted into the box for this purpose.
IP rating:  4X
IK Classification:  7
RAL:  Does not have
Manufacturing material:  Halogen-free thermoplastic that guarantees no flame propagation in case of fire and low toxicity in case of smoke emission.
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + EN 60670-1:2005

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for flush mounting on the wall
Type of fastening:  By direct snap-fit in the selected box (no tools needed for fastening)
Installation direction:  Vertical, corresponding with the direction of the mechanisms
Installable in flush mount junction box:  Specific Simon 500 Cima
Removal of the frame:  Only with tool
Removal of components:  Only with tool
Recess dimension:  141 x 199 mm
Distance between flush mount boxes for optimum alignment:  22 mm
Temperature range during installation:  -5 to 60 ºC
Max. temp. during construction work:  +90 ºC
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

GALLERY


Flush-mount wall frame aluminium application in office

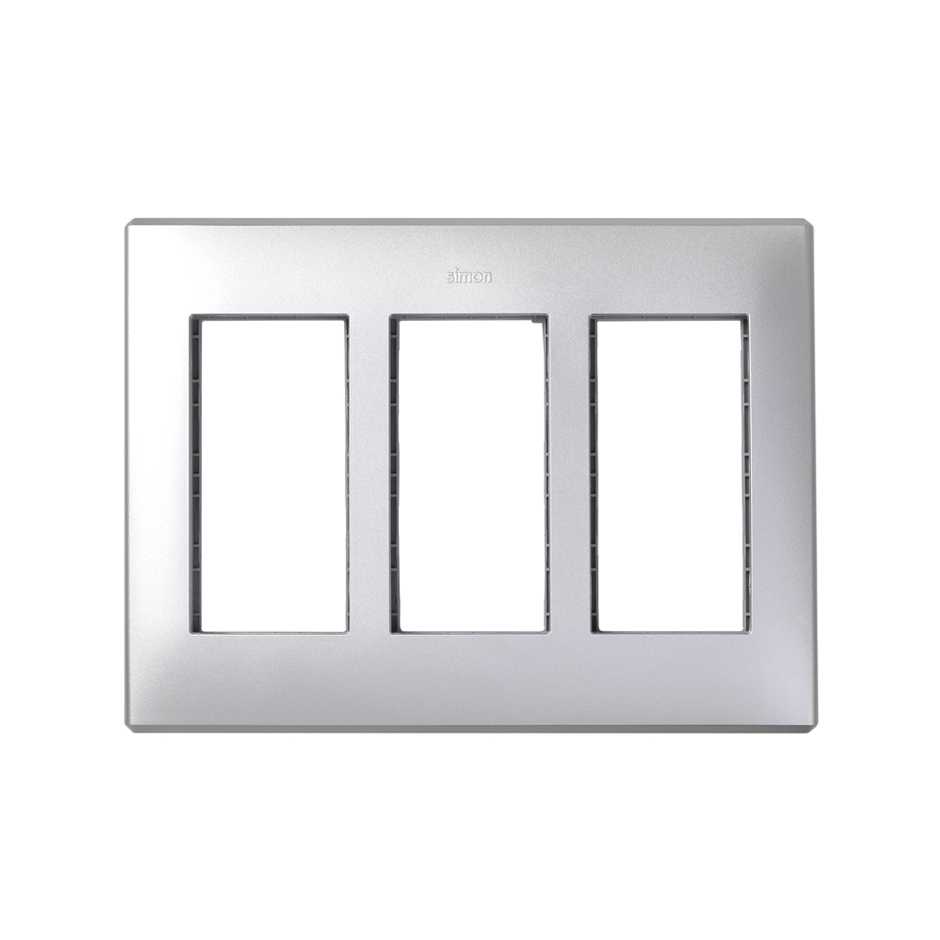

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima aluminium front view

solucion-bases-dobles-placas-voz-datos-pared-superficie-aluminio-simon-500-cima_8.jpg

Flush-mount wall frame with energy and voice/data solutions Simon 500 Cima aluminium front view

solucion-bases-dobles-placas-voz-datos-pared-superficie-aluminio-simon-500-cima_8.jpg

INSTALLATION MANUAL

manual
Instruction sheet Flush mount wall frame and centre frames for 3 double elements aluminium Simon 500 Cima DOWNLOAD

DRAWING AND DIMENSIONS

manual
Drawing Flush mount wall frame and centre frames for 3 double elements aluminium Simon 500 Cima DOWNLOAD
