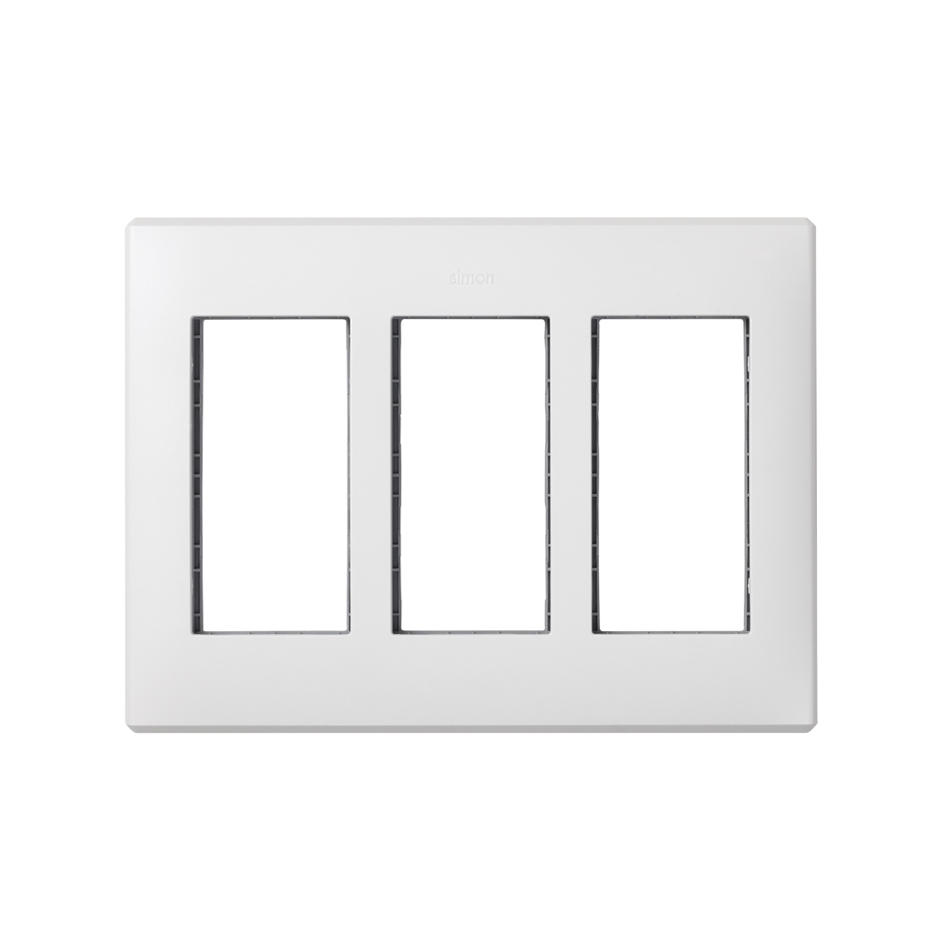

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima white front view

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima white front view

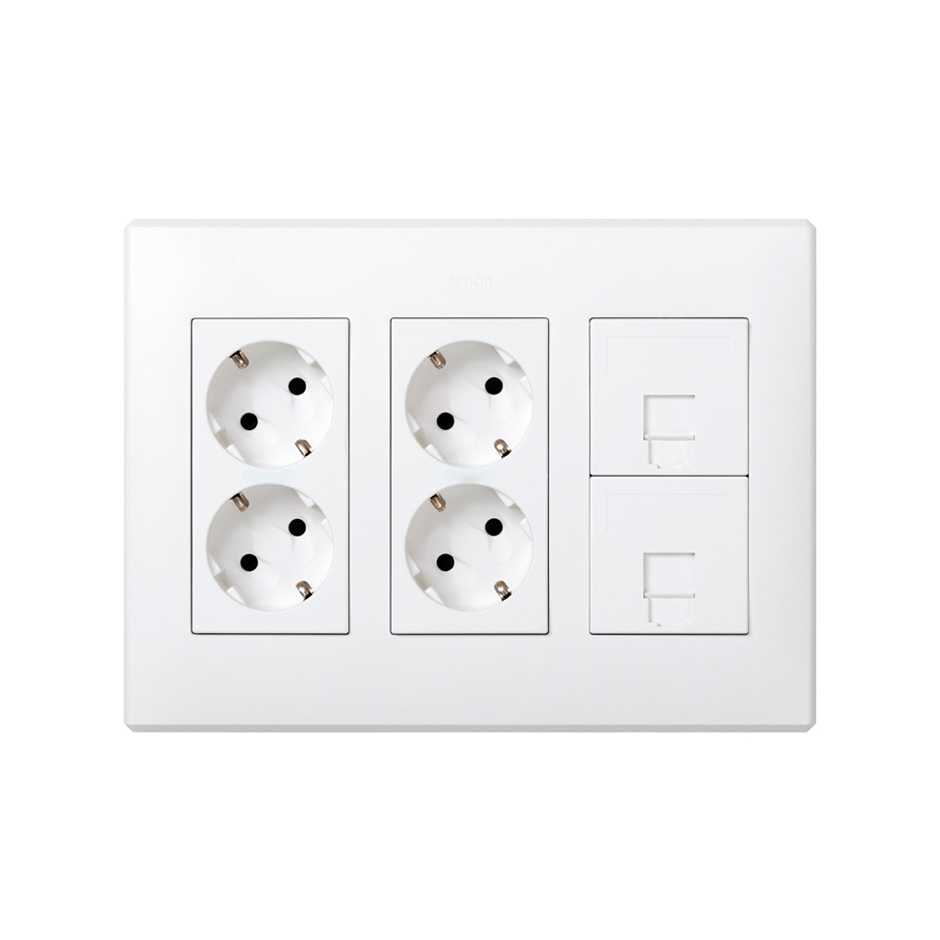

This image represents the combined solution of different references

This image represents the combined solution of different references

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima white packaging

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima white packaging

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima white front view

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima white front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima white packaging

Flush-mount wall frame and frame holders for 3 double elements Simon 500 Cima white packaging

Ref
51010103-030

Flush-mount wall frame and frame holders for 3 double elements white Simon 500 Cima

Price/Unit
€19.25
Packaging quantity
10 Units

Available downloads

Technical specifications
51010103-030-datasheet-en.pdf
Installation manual

  1. Hoja de instrucciones cajas de pared Simon 500 Cima_2.pdf [9MB]

Product declaration

  1. UES0106.pdf [628KB]

Drawing files

  1. Plano 51010103_3.pdf []

Ask for advice
Outstanding Features
Series
Simon 500 Cima
Series Compatibility

Simon 500 Cima

Adaptor plate for Simon K45 mechanisms Simon 500 Cima white front view
Ref
50012088-030
Adaptor plate for Simon K45 mechanisms for 1 element white Simon 500 Cima
Angled voice and data plate with dust cover for 2 RJ45 white Simon 500 Cima front view
Ref
50000086-030
Angled voice and data plate with dust cover 1 element for 2 RJ45 white Simon 500 Cima
Angled voice and data plate with dust cover for 1 RJ45 white Simon 500 Cima front view
Ref
50000081-030
Angled voice and data plate with dust cover 1 element for 1 RJ45 white Simon 500 Cima
Flat voice and data plate with dust cover for 2 RJ45 white Simon 500 Cima front view
Ref
50000089-030
Flat voice and data plate with dust cover 1 element for 2 RJ45, compatible other manufacturers white Simon 500 Cima
Flat voice and data plate with dust cover for 1 RJ45 white Simon 500 Cima front view
Ref
50000085-030
Flat voice and data plate with dust cover 1 element for 1 RJ45, compatible other manufacturers white Simon 500 Cima
Two-pole MCB 16 A with trim plate Simon 500 Cima white front view
Ref
50000075-030
Two-pole MCB 16 A for 2 elements with trim plate white Simon 500 Cima
German double socket outlet 16A 250V~ Simon 500 Cima red front view
Ref
50010432-037
German double socket outlet 16A 250V~ with safety device, LED and 1Click® terminal connection system red Simon 500 Cima
German double socket outlet 16A 250V~ Simon 500 Cima white front view
Ref
50010432-030
German double socket outlet 16A 250V~ with safety device, LED and 1Click® terminal connection system white Simon 500 Cima
Información de Producto
Soporte
Basic information

  • Compatibility

    Simon 500 Cima and Simon 27 Play/Simon K45 mechanisms (using specific adaptors), combinable with the Simon Trunking range

  • Remarks

    Alternatively, you can screw the frame holders into the box if additional fastening is required.

  • Finish

    White

  • Material

    Plastic

  • Packaging contents

    Flush-mount wall frame, frame holders, metal partition wall, ground connection cable and installation manual

Technical information

  • Market available

    CE

  • IK Classification

    7

  • RAL

    9003

  • Available in

    1, 2, 3, 4 and 6 double elements

  • Dielectric strength

    No holes or contours, with 2000V at 50 Hz for 1 minute

  • Electromagnetic immunity for VDM wiring

    Secured by installing the metal partition wall in the housing fitted into the box for this purpose.

  • Heat resistance (ºC)

    +125ºC (according rule IEC 60695-10-2)

  • Insulation resistance (V-MΩ)

    >5MOhms at 500V

  • IP Rating

    IP4X

  • Max temp during construction work (ºC)

    +90 ºC

  • Number of modules

    6

  • Recess dimension (mm)

    141 x 199 mm

  • Temperature range during installation (ºC)

    -5 to 60 ºC

  • Version

    3 double elements

  • Depth (mm)

    21 mm

  • Dimensions (mm)

    220 x 164 x 30

  • Distance between flush mount boxes for optimum alignment (mm)

    22 mm

Installation and maintenance

  • Extinguishing (ºC)

    +850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)

  • Installable in flush mount junction box

    Specific Simon 500 Cima

  • Installation direction

    Vertical, corresponding with the direction of the mechanisms

  • Installation type

    Suitable for flush mounting on the wall

  • Removal of components

    Only with tool

  • Removal of the frame

    Only with tool

  • Type of fastening

    By direct snap-fit in the selected box (no tools needed for fastening)

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    Directive 2014/35/UE LVD + EN 60670-1:2005

Logistics Information

  • Product net weight

    0.206 KGM

  • Product gross weight

    0.206 KGM

  • Packaging quantity

    10

  • Packaging height

    210 MMT

  • Packaging width

    230 MMT

  • Packaging length

    340 MMT

  • Packaging volume

    16.422 DMQ

  • Packaging net weight

    2.06 KGM

  • Packaging EAN

    8421053090749
