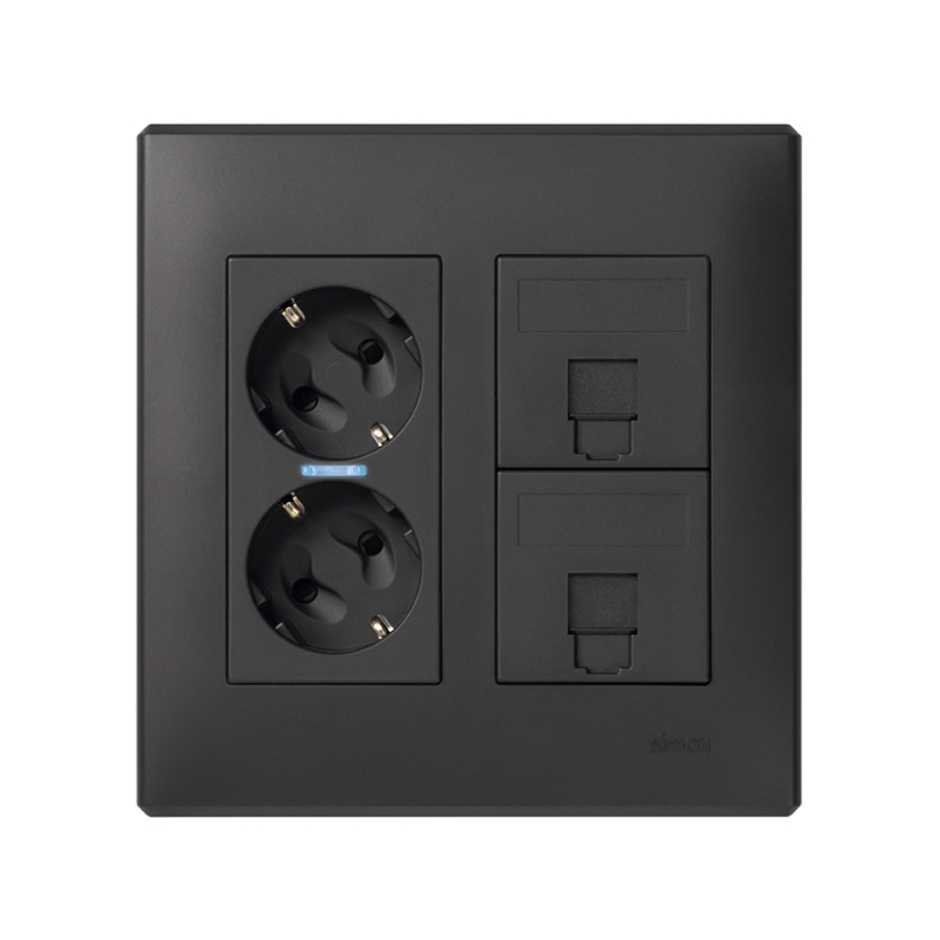

Surface mount or flush-mount wall box kit for 2 double elements with 1 double socket, 2 plates for 1 RJ45 graphite Simon 500 Cima
REFERENCE NO.:
51000202-038
R.P.:
Price on request
PACKAGING:
1Unit
BASIC INFORMATION
Series:
Simon 500 Cima
Version:
2 double elements
Intensity:
16 A
Voltage:
250 V~
Number of modules:
4
Number of sockets:
1 double socket for standard current circuit
Format:
Schuko
Type of terminal connection:
1 click connection (1 click®)
Number of terminals:
3 inputs and 3 outputs
Number of connections per terminal:
1 terminal connection for click terminal connection system and 2 terminal connections for screw terminal connection system
Type of mechanism:
Insertion
Indicator function:
Yes
Number of plates:
2 voice and data plates
Plate type:
Flat
Snap-fit type:
Keystone I, Keystone II and Systimax
Number of connectors:
2
Compatible with connectors:
Simon©, AMP netconnect© Standard 110, SL110, SL Tool-less, 216000 and 216005, Brand-Rex©, ADC Krone© KM8 Keystone, BeldenCDT© Giga Flex Keystone, Ersys©, General Cable©, Molex©, Panduit© Netkey, Ortronics© Clarity TechChoice Keystone, Rit© and other manufacturers with Keystone snap-fit system.
Dust shutter:
Yes
RJ45 adaptor module:
Included in voice and data plates
RJ45 connectors:
Not included
Finish:
Graphite
Kit configuration:
1 German double electrical socket for standard current and voice and data plates for 2 RJ45 connectors (RJ45 connectors not included)
Packaging contents:
Wall kit, metal partition wall, ground connection cable and installation manual
Remarks:
To complete the installation of the product, it must be combined with a flush-mount wall box (ref.51020102-039) or with a surface-mount wall box base (ref.51050002-038).
TECHNICAL INFORMATION
Dimensions:
157 x 164 mm
Depth:
46 mm
Cable section admitted:
From 1.5 to 2.5 mm
Cable stripping necessary:
Not necessary
LED consumption indicator:
0.55 mA
Heat resistance:
+125 ºC (in accordance with standard IEC 60695-10-2)
Extinguishing:
+850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)
Insulation resistance:
>5MOhms at 500V
Dielectric strength:
No holes or contours, with 2000V at 50 Hz for 1 minute
Electromagnetic immunity for VDM wiring:
Secured by installing the metal partition wall in the housings fitted into the selected wall enclosure.
IP rating:
20
RAL:
7021
Manufacturing material:
Metal components with self-extinguishing, halogen-free thermoplastic insulation that guarantees no flame propagation in case of fire and low toxicity in case of smoke emission.
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50173-1:2011 + EN 50581:2012 + EN 60670-1:2005 + IEC 60884-1 Ed 3.2
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for flush mounting or surface mounting onto wall in combination with the corresponding enclosure
Type of fastening:
By direct snap-fit in the selected enclosure (no tools needed for fastening))
Installation direction:
Vertical, corresponding with the direction of the mechanisms
Installable in flush mount junction box:
Specific Simon 500 Cima
Removal of the socket:
Only with tool
Removal of cover:
Only with tool
Removal of the plate:
Only with tool
Removal of the frame:
Only with tool
Recess dimension:
141 x 135 mm (* for flush-mount wall installation)
Distance between flush mount boxes for optimum alignment:
22 mm
Temperature range during installation:
-5 to 60 ºC
Max. temp. during construction work:
+60 ºC in surface-mount wall installation and +90 ºC in flush-mount wall installation
Maintenance:
Clean with a soft, dry cloth.
Do not use abrasive cloths or cleaning products that contain chlorine.
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
1
Box measurement unit:
MM
Height:
75.000
Wide:
165.000
Depth:
170.000
Box volume:
2.104
Box volume measurement unit:
CDM
Net weight of box:
0.370
Gross weight of box:
0.000
Unit weight of box:
KGM
EAN code:
8421053100226
Available in multiple box:
No
Available on pallet:
No
