Surface mount or flush-mount wall box kit for 2 double elements with 2 double socket outlets graphite Simon 500 Cima

REFERENCE NO.: 51000201-038
R.P.: Price on request
PACKAGING: 1 Unit
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 500 Cima
Version:  2 double elements
Intensity:  16 A
Voltage:  250 V~
Number of modules:  4
Number of sockets:  2 double sockets for standard current circuits
Format:  Schuko
Type of terminal connection:  1 click connection (1 click®)
Number of terminals:  3 inputs and 3 outputs
Number of connections per terminal:  1 terminal connection for click terminal connection system and 2 terminal connections for screw terminal connection system
Type of mechanism:  Insertion
Indicator function:  Yes
Linkable:  Yes, using accessory included 50000996-039
Finish:  Graphite
Kit configuration:  2 linkable German double electrical sockets for standard current
Packaging contents:  Wall kit, metal partition wall, ground connection cable and installation manual
Remarks:  To complete the installation of the product, it must be combined with a flush-mount wall box (ref.51020102-039) or with a surface-mount wall box base (ref.51050002-038).

TECHNICAL INFORMATION

Dimensions:  157 x 164 mm
Depth:  46 mm
Cable section admitted:  From 1.5 to 2.5 mm
Cable stripping necessary:  Not necessary
LED consumption indicator:  0.55 mA
Heat resistance:  +125 ºC (in accordance with standard IEC 60695-10-2)
Extinguishing :  +850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)
Insulation resistance:  >5MOhms at 500V
Dielectric strength:  No holes or contours, with 2000V at 50 Hz for 1 minute
Electromagnetic immunity for VDM wiring:  Secured by installing the metal partition wall in the housings fitted into the selected wall enclosure.
IP rating:  20
RAL:  7021
Manufacturing material:  Metal components with self-extinguishing, halogen-free thermoplastic insulation that guarantees no flame propagation in case of fire and low toxicity in case of smoke emission.
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60670-1:2005 + IEC 60884-1 Ed 3.2

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for flush mounting or surface mounting onto wall in combination with the corresponding enclosure
Type of fastening:  By direct snap-fit in the selected enclosure (no tools needed for fastening))
Installation direction:  Vertical, corresponding with the direction of the mechanisms
Installable in flush mount junction box:  Specific Simon 500 Cima
Removal of the socket:  Only with tool
Removal of cover:  Only with tool
Removal of the frame:  Only with tool
Recess dimension:  141 x 135 mm (* for flush-mount wall installation)
Distance between flush mount boxes for optimum alignment:  22 mm
Temperature range during installation:  -5 to 60 ºC
Max. temp. during construction work:  +60 ºC in surface-mount wall installation and +90 ºC in flush-mount wall installation
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

GALLERY


Flush-mount wall kit aluminium application in office

51000201-038-kit-caja-pared-superficie-empotrar-4-elementos-2-bases-electricas-dobles-grafito-simon-500-cima-frontal_8.jpg

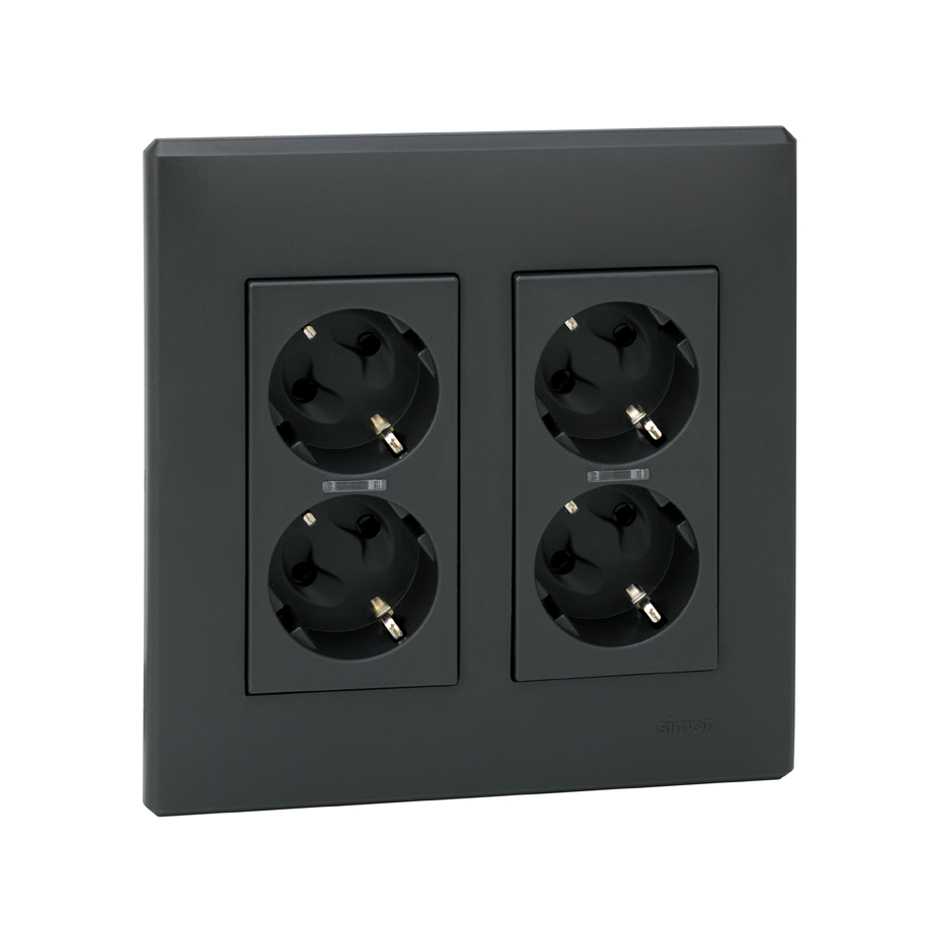

Surface mount or flush-mount wall box kit for 2 double elements Simon 500 Cima graphite front view

51000201-038-kit-caja-pared-superficie-empotrar-4-elementos-2-bases-electricas-dobles-grafito-simon-500-cima-transversal_8.jpg

Surface mount or flush-mount wall box kit for 2 double elements Simon 500 Cima graphite oblique view

51000201-038-kit-caja-pared-superficie-empotrar-4-elementos-2-bases-electricas-dobles-grafito-simon-500-cima-frontal_8.jpg
51000201-038-kit-caja-pared-superficie-empotrar-4-elementos-2-bases-electricas-dobles-grafito-simon-500-cima-transversal_8.jpg

INSTALLATION MANUAL

manual
Instruction sheet Surface mount or flush mount wall box kit for 2 double elements with 2 double socket outlets graphite Simon 500 Cima DOWNLOAD

DRAWING AND DIMENSIONS

manual
Drawing Surface mount or flush mount wall box kit for 2 double elements with 2 double socket outlets graphite Simon 500 Cima DOWNLOAD
