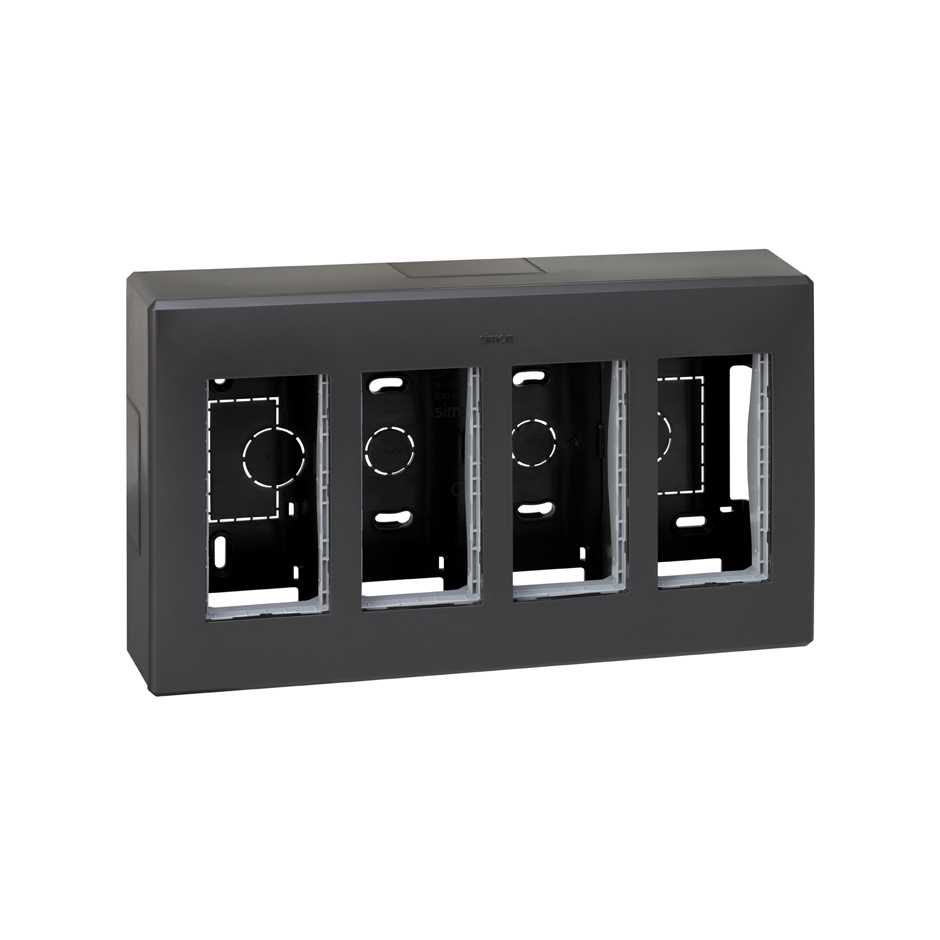

- Surface-mount wall box for 4 double elements graphite Simon 500 Cima
Surface-mount wall box for 4 double elements graphite Simon 500 Cima
REFERENCE NO.:
51000004-038
R.P.:
Price on request
PACKAGING:
1Unit
BASIC INFORMATION
Series:
Simon 500 Cima
Version:
4 double elements
Number of modules:
8
Finish:
Graphite
Available in:
1, 2, 3, 4 and 6 double elements
KIT availability:
No
Compatibility:
Simon 500 Cima and Simon 27 Play/Simon K45 mechanisms using a specific adaptor
Packaging contents:
Floor box, metal partition wall, ground connection cable, fixing studs, screws and installation manual
Remarks:
Alternatively, you can screw the frame holders into the box if you need extra fastening.
TECHNICAL INFORMATION
Dimensions:
286 x 167 mm
Depth:
50 mm
Heat resistance:
+125 ºC (in accordance with standard IEC 60695-10-2)
Extinguishing:
+850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)
Insulation resistance:
>5MOhms at 500V
Dielectric strength:
No holes or contours, with 2000V at 50 Hz for 1 minute
Number of side entrances:
5
No. of pre-punched holes Ø20 mm:
2
No. of pre-punched holes Ø25 mm:
2
No. of pre-punched holes 30 x 50 mm:
2
No. of pre-punched holes 40 x 80 mm:
0
Number of clamp-holder holes:
16
Number of housings for ground connection:
2
Electromagnetic immunity for VDM wiring:
Secured by installing the metal partition wall in the housings fitted into the box for this purpose.
IP rating:
4X
IK Classification:
7
RAL:
7021
Manufacturing material:
Halogen-free thermoplastic that guarantees no flame propagation in case of fire and low toxicity in case of smoke emission.
Type of product:
Standard
Market available:
CE
REGULATIONS
Regulations:
Directive 2014/35/UE LVD + EN 60670-1:2005
INSTALLATION AND MAINTENANCE
Installation type:
Suitable for surface-mount wall installation
Type of fastening:
Using the screws supplied
Installation direction:
Vertical, corresponding with the direction of the mechanisms
Removal of the frame:
Only with tool
Removal of components:
Only with tool
Temperature range during installation:
-5 to 60 ºC
Max. temp. during construction work:
+60 ºC
Maintenance:
Clean with a soft, dry cloth.
Do not use abrasive cloths or cleaning products that contain chlorine.
LOGISTIC DATA
Available in display box:
Yes
Packaging quantity:
1
Box measurement unit:
MM
Height:
75.000
Wide:
165.000
Depth:
290.000
Box volume:
3.589
Box volume measurement unit:
CDM
Net weight of box:
0.660
Gross weight of box:
0.000
Unit weight of box:
KGM
EAN code:
8421053091654
Available in multiple box:
No
Available on pallet:
No
GALLERY
INSTALLATION MANUAL
DRAWING AND DIMENSIONS
PRODUCT DECLARATIONS
MODULAR SOLUTION

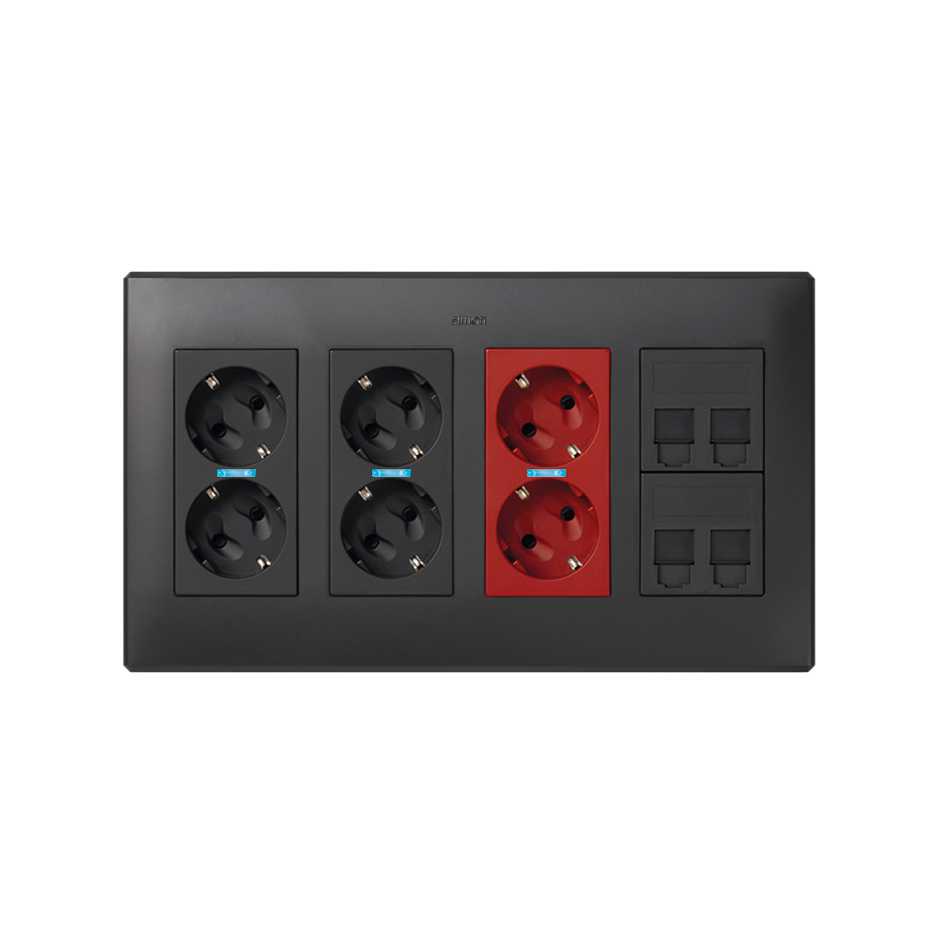

Set of double socket outlets and voice and data plates with category 6 UTP RJ45 connector in surface mount wall box Simon 500 Cima graphite
R.P.:
Price on request
REFERENCE NO.: 51000004-038
R.P.:
Price on request
Surface-mount wall box for 4 double elements graphite Simon 500 Cima
