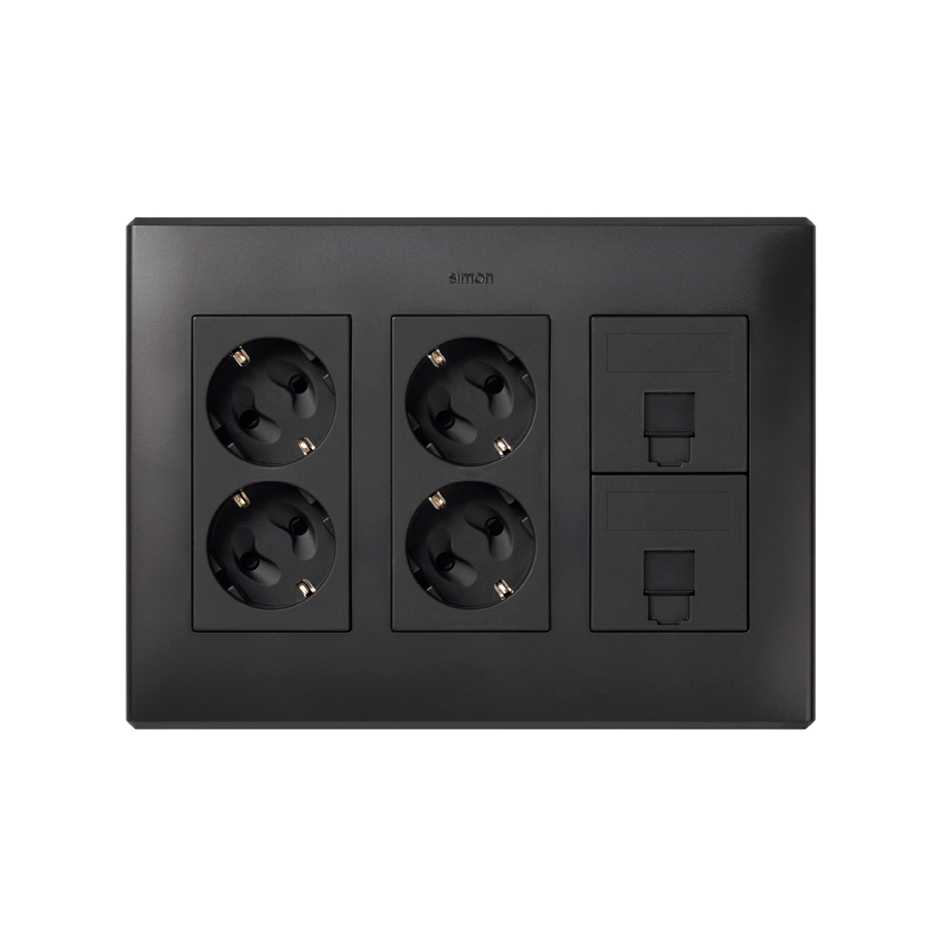

Simon 500 Cima
Simon 500 Cima and Simon 27 Play/Simon K45 mechanisms using a specific adaptor
Alternatively, you can screw the frame holders into the box if you need extra fastening.
Floor box, metal partition wall, ground connection cable, fixing studs, screws and installation manual
Number of clamp-holder holes
Number of pre-punched holes 30 x 50 mm
Number of pre-punched holes Ø20 mm
Number of pre-punched holes Ø25 mm
1, 2, 3, 4 and 6 double elements
No holes or contours, with 2000V at 50 Hz for 1 minute
Electromagnetic immunity for VDM wiring
Secured by installing the metal partition wall in the housings fitted into the box for this purpose.
Heat resistance (ºC)
+125ºC (according rule IEC 60695-10-2)
Insulation resistance (V-MΩ)
>5MOhms at 500V
Max temp during construction work (ºC)
Number of housings for ground connection
Number of modules
Number of side entrances
Temperature range during installation (ºC)
-5 to 60 ºC
3 double elements
223 x 167 x 59
+850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-2-11)
Vertical, corresponding with the direction of the mechanisms
Suitable for surface-mount wall installation
Removal of components
Only with tool
Removal of the frame
Only with tool
Type of fastening
Using the screws supplied
Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.
Directive 2014/35/UE LVD + EN 60670-1:2005
Product net weight
Product gross weight
Packaging net weight
