Cover for German double socket outlet mechanism with viewer and LED indicator orange Simon 500 Cima

REFERENCE NO.: 50011041-072
R.P.: Price on request
PACKAGING: 10Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 500 Cima
Version:  2 elements
Number of modules:  2
Finish:  Orange
Format:  Schuko
Indicator function:  Yes
Available in:  Plate with viewer and LED light indicator, plate without viewer and as a replacement for plate with viewer
KIT availability:  No
Compatibility:  German double socket outlets Simon 500 Cima
Packaging contents:  Cover for German double socket outlet mechanism with viewer and LED light indicator and installation manual
Remarks:  Must be combined with a German double socket outlet

TECHNICAL INFORMATION

Dimensions:  100 x 50 mm
Depth:  9 mm
LED consumption indicator:  0.55 mA
IP rating:  20
RAL:  2009
Manufacturing material:  Halogen-free thermoplastic that guarantees no flame propagation in case of fire and low toxicity in case of smoke emission.
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2011/65/UE RoHS + EN 50581:2012 + IEC 60884-1 Ed. 3.2

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface or flush-mount installation
Type of fastening:  By direct snap-fit on the double socket outlet (no tools needed for fastening))
Installation direction:  Vertical, corresponding with the direction of the mechanisms
Removal of cover:  Only with tool
Temperature range during installation:  -5 to 60 ºC
Max. temp. during construction work:  +60 ºC in surface-mount wall installation and +90 ºC in flush-mount wall installation
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  10
Box measurement unit:  MM
Height:  52.000
Wide:  105.000
Depth:  220.000
Box volume:  1.201
Box volume measurement unit:  CDM
Net weight of box:  0.280
Gross weight of box:  0.000
Unit weight of box:  KGM
EAN code:  8421053093566
Available in multiple box:  No
Available on pallet:  No

GALLERY

50011041-072-tapa-mecanismo-base-enchufe-doble-schuko-con-visor-y-led-indicador-naranja-simon-500-cima-frontal_6.jpg

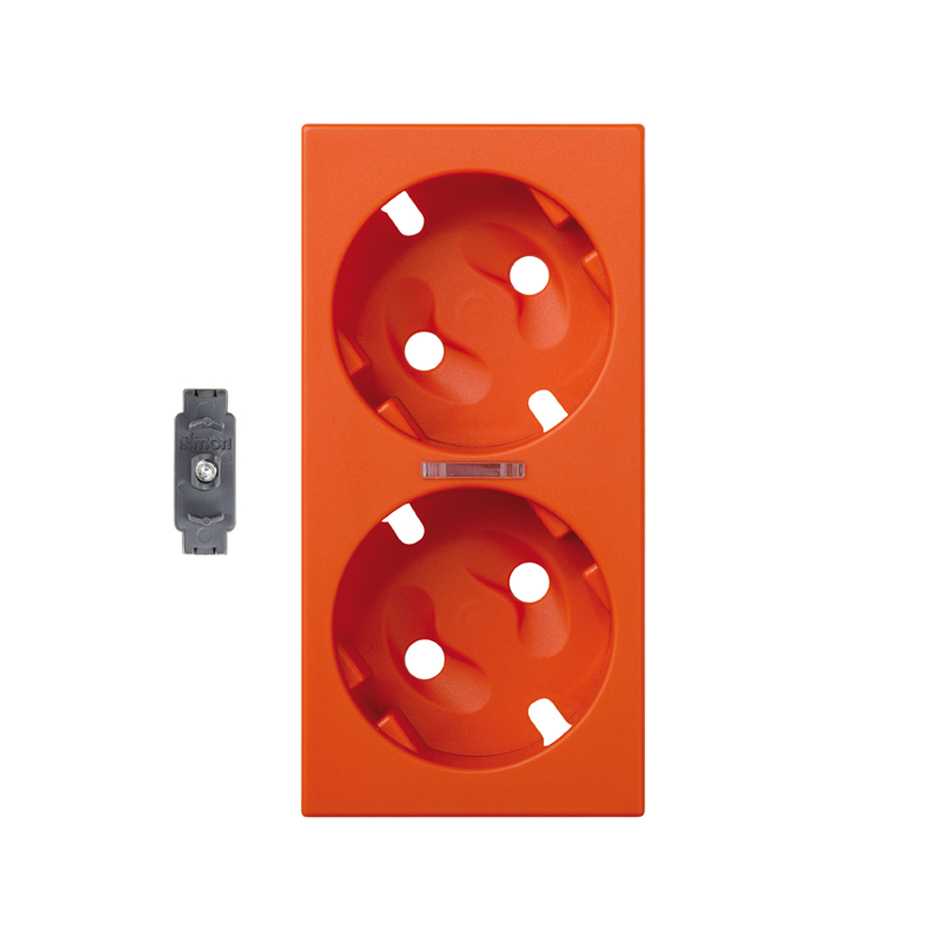

Cover for German double socket outlet mechanism Simon 500 Cima orange front view

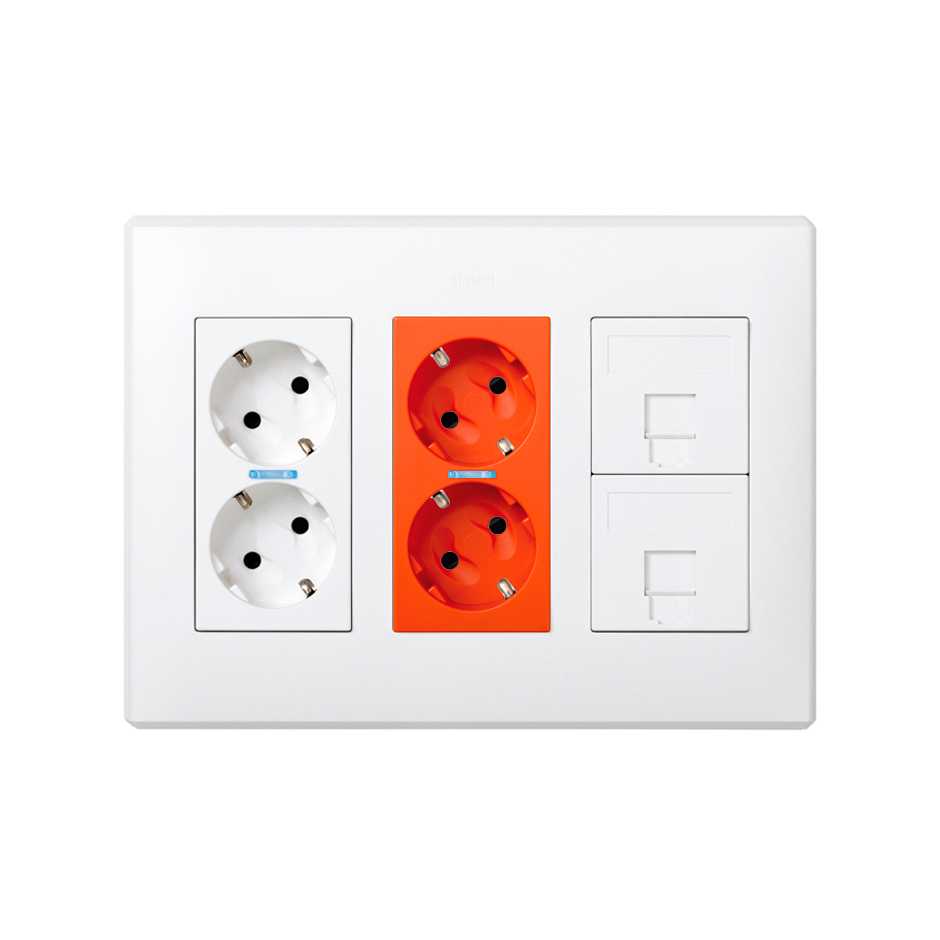

This image represents the combination of different references
