Flat voice and data plate with dust cover for 1 element with 1 RJ45 category 6 FTP white Simon 500 Cima

REFERENCE NO.: 50003085-030
R.P.: Price on request
PACKAGING: 20Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 500 Cima
Version:  Single
Number of modules:  1
Plate type:  Flat
Snap-fit type:  Keystone I, II, ATT®/Avaya®
Number of connectors:  1
RJ45 connection:  Without insertion tool
Available in:  Plate for 1 and 2 RJ45
Dust shutter:  Yes
RJ45 adaptor module:  Included in voice and data plate
RJ45 connectors:  Included in voice and data plate
Finish:  White
KIT availability:  No
Compatibility:  Simon 500 Cima enclosures
Packaging contents:  Flat voice and data plate with dust cover, category 6 FTP RJ45 connector and installation manual
Remarks:  The plate is snap-fitted for mounting in vertical and horizontal enclosures without the need for an adaptor.

TECHNICAL INFORMATION

Dimensions:  50 x 50 x 45.4 mm
Depth:  45.4 mm
Cable section admitted:  22-26 AWG wiring
IP rating:  20
RAL:  9003
Manufacturing material:  Metal components with self-extinguishing, halogen-free thermoplastic insulation that guarantees no flame propagation in case of fire and low toxicity in case of smoke emission.
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2011/65/UE RoHS + EN 50173-1:2011 + EN 50581:2012 + IEC 60603-7-5 Ed 2.0

INSTALLATION AND MAINTENANCE

Installation type:  Fixing by direct snap-fit, no tools needed.
Installation direction:  Vertical, corresponding with the direction of the mechanisms
Removal of the plate:  Only with tool
Installable in flush mount junction box:  Specific Simon 500 Cima
Temperature range during installation:  -5 to 60 ºC
Max. temp. during construction work:  +60 ºC
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  20
Box measurement unit:  MM
Height:  80.000
Wide:  224.000
Depth:  290.000
Box volume:  0.052
Box volume measurement unit:  HL
Net weight of box:  0.720
Gross weight of box:  0.000
Unit weight of box:  KGM
EAN code:  8421053098011
Available in multiple box:  No
Available on pallet:  No

GALLERY

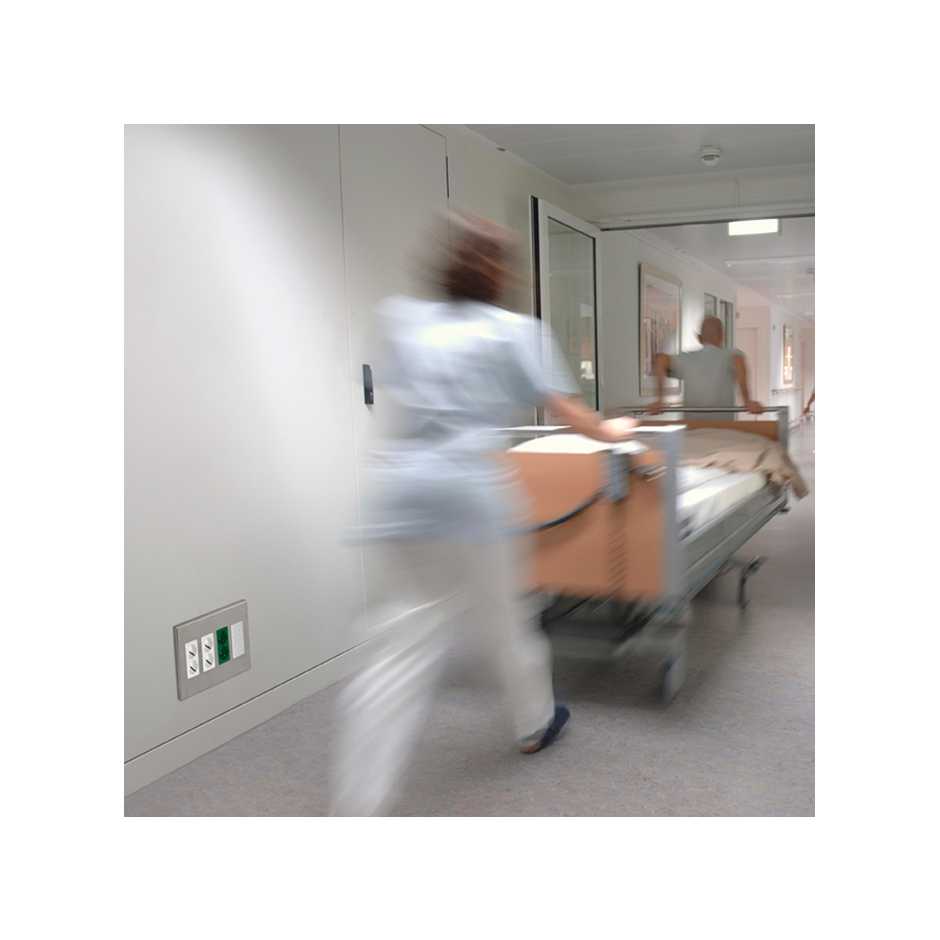

Flat voice and data plate in flush-mount wall box white application in hospital
