German double socket outlet 16A 250V with safety device and screw terminal connection system red Simon 500 Cima

REFERENCE NO.: 50000472-037
R.P.: Price on request
PACKAGING: 10Units
Variables de unidades de obras ---> -false-false

BASIC INFORMATION

Series:  Simon 500 Cima
Version:  Double
Intensity:  16 AX
Voltage:  250 V~
Number of sockets:  2
Number of modules:  2
Finish:  Red
Format:  Schuko
Monoblock:  No
Available in:  German and French format
Type of terminal connection:  Screw
Number of terminals:  3 inputs and 3 outputs
Number of connections per terminal:  2 connections per terminal
Type of mechanism:  Insertion
Indicator function:  No
Linkable:  Yes, using accessory 50000996-039
KIT availability:  No
Compatibility:  Simon 500 Cima enclosures
Packaging contents:  Double socket outlet with cover and installation manual
Remarks:  Possibility to order replacement cover in case of breakage, with article no.50001841-037

TECHNICAL INFORMATION

Dimensions:  100 x 50 mm
Depth:  46 mm
Cable section admitted:  From 1.5 to 2.5 mm
Cable stripping necessary:  12 mm
Heat resistance:  +125 ºC (in accordance with standard IEC 60695-10-2)
Extinguishing:  +850 ºC / 30 seconds (GWFI in accordance with standard IEC 60695-10-2)
Insulation resistance:  >5MOhms at 500V
Dielectric strength:  No holes or contours, with 2000V at 50 Hz for 1 minute
IP rating:  20
RAL:  3002
Manufacturing material:  Metal components with self-extinguishing, halogen-free thermoplastic insulation that guarantees no flame propagation in case of fire and low toxicity in case of smoke emission.
Type of product:  Standard
Market available:  CE

REGULATIONS

Regulations:  Directive 2011/65/UE RoHS + EN 50581:2012 + IEC 60884-1 Ed. 3.2

INSTALLATION AND MAINTENANCE

Installation type:  Suitable for surface and flush mounting
Installation direction:  Vertical and horizontal
Installable in flush mount junction box:  Specific Simon 500 Cima
Removal of the socket:  Only with tool
Removal of cover:  Only with tool
Temperature range during installation:  -25 to 60 ºC
Max. temp. during construction work:  +60 ºC
Maintenance:  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box:  Yes
Packaging quantity:  10
Box measurement unit:  MM
Height:  112.000
Wide:  117.000
Depth:  269.000
Box volume:  3.525
Box volume measurement unit:  CDM
Net weight of box:  1.080
Gross weight of box:  0.000
Unit weight of box:  KGM
EAN code:  8421053093160
Available in multiple box:  No
Available on pallet:  No

GALLERY

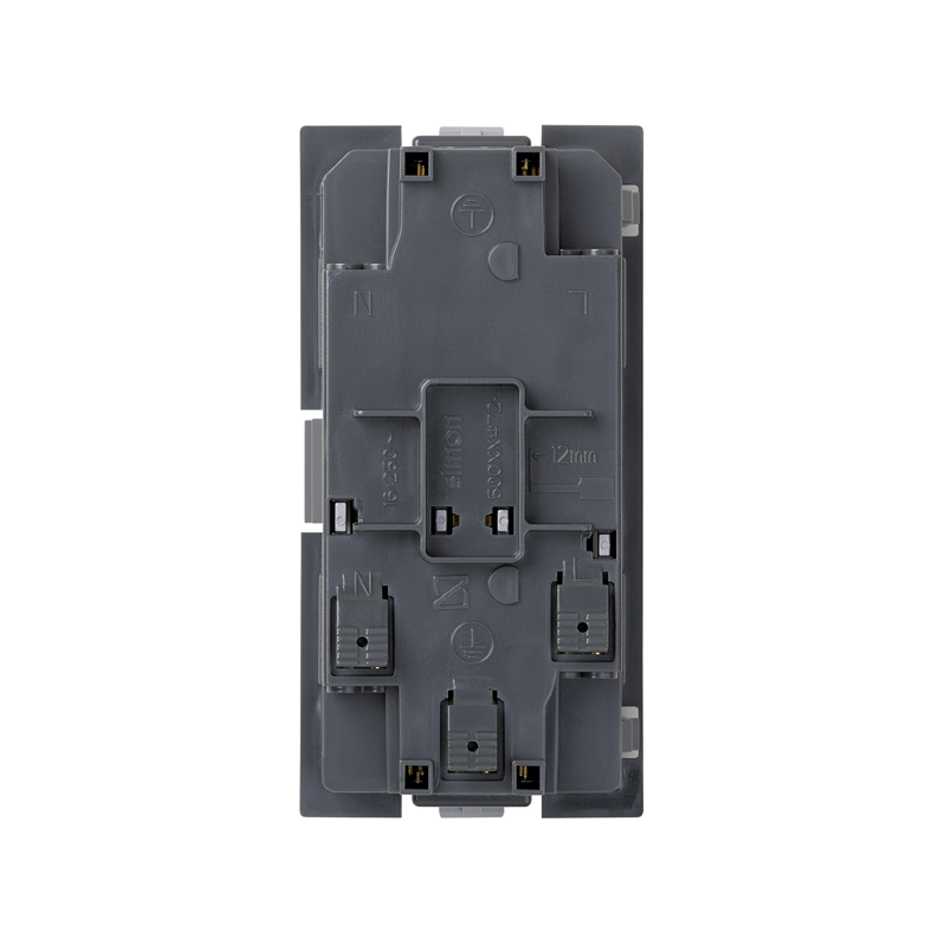

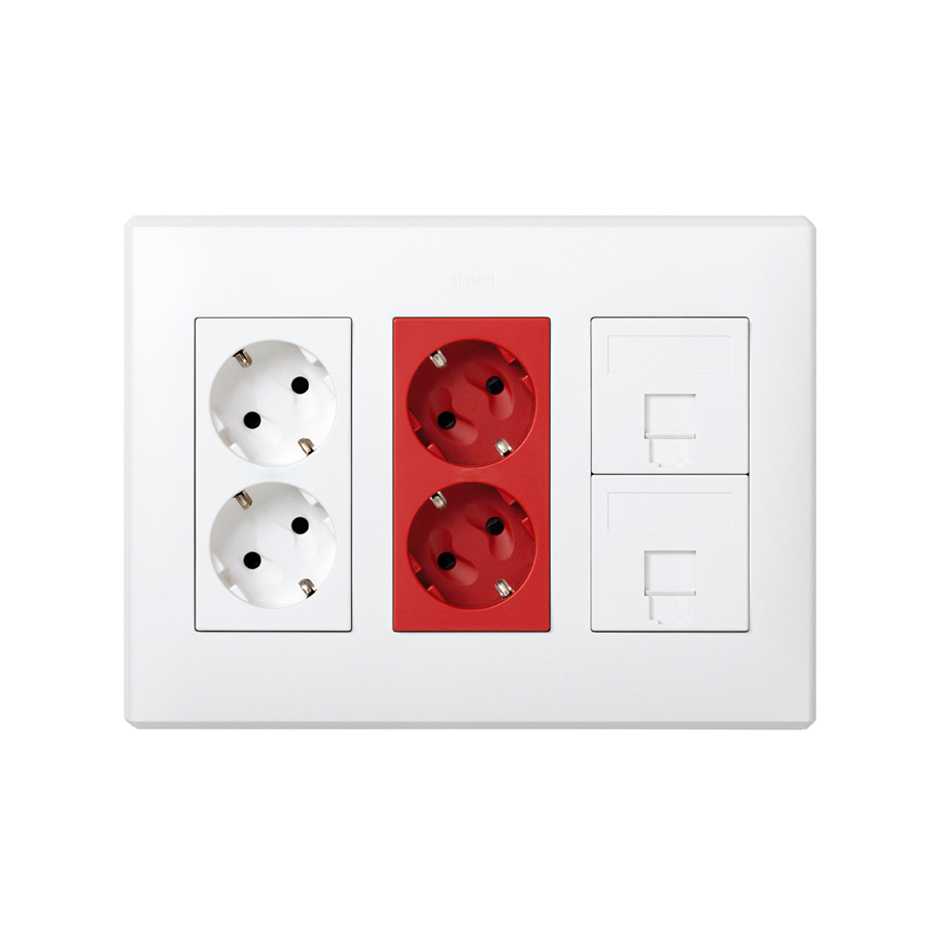

Double socket outlet red application in office


Double socket outlet red application in office

50000472-037-base-doble-schuko-16-250v-dispositivo-seguridad-embornamiento-tornillo-rojo-simon-500-cima-frontal.jpg

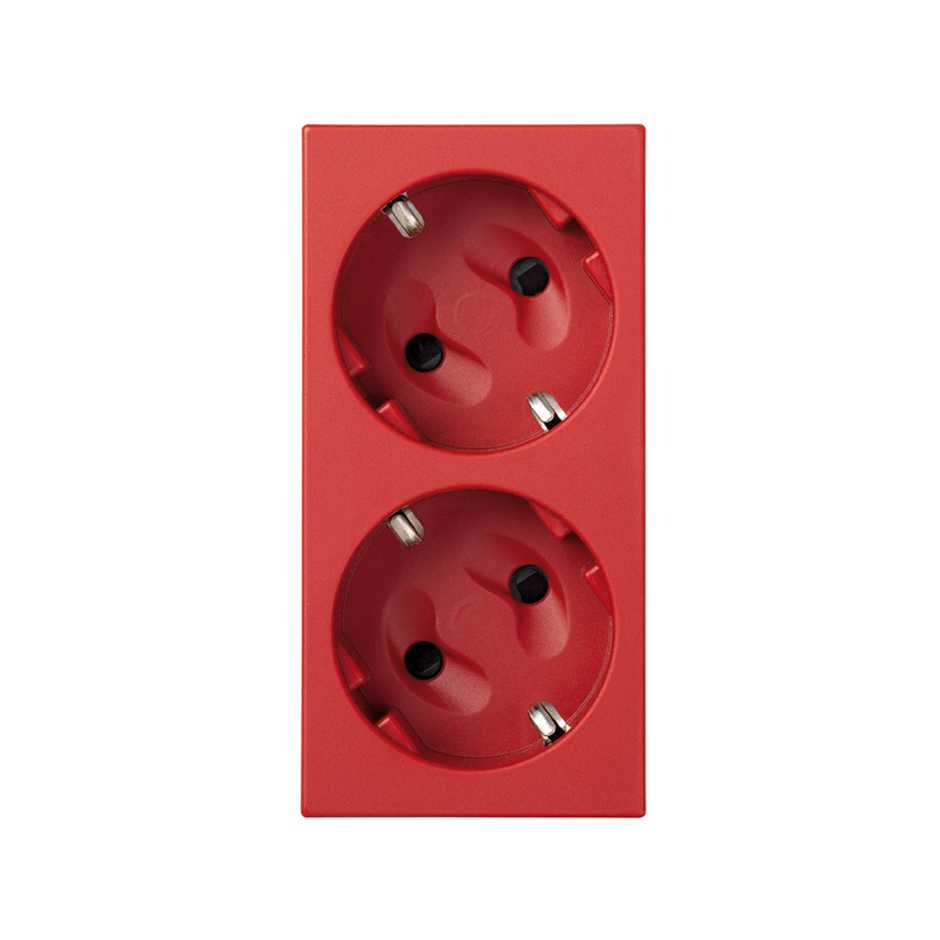

German double socket outlet 16A 250V~ Simon 500 Cima red front view
