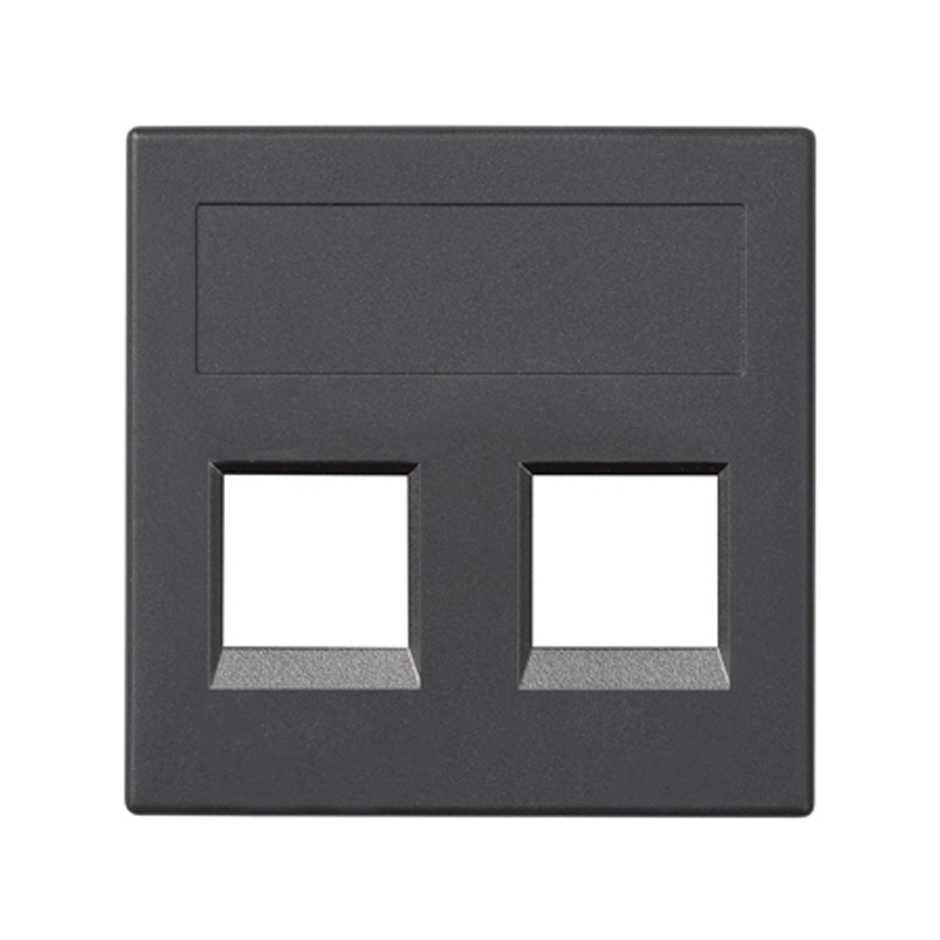

Flat voice and data plate without dust cover for 2 RJ45 graphite Simon 500 Cima front view

This image represents the combined solution of different references

Ref
50000189-038

Flat voice and data plate without dust cover 1 element for 2 RJ45 compatible other manufacturers graphite Simon 500 Cima

Price/Unit
Price on request
Packaging quantity
20 Units
Outstanding Features
Series
Simon 500 Cima
Series Compatibility

Simon 500 Cima

Plate in graphite colour for data and voice of the Simon 500 Cima series without dust cover and with an element for 1 RJ45 compatible with other manufacturers with, such as Keystone I, II, ATT ® / Avaya ®.

It measures 50 x 50 x 11 mm and is manufactured in accordance with the regulation UNE-EN 60670-1: 2006 and made of thermoplastic material, which is fully book insulation. This material is very safe, as it guarantees that, in case of fire, there is no flame spread and also that if there is smoke, there is a high toxicity.

This plate of the series Simon K45 includes the clips for its correct fastening in both vertical and horizontal enclosures without the need of that you have to use any type of adapter.

It is a flat base plate whose cleaning is quite simple, as you will only have to clean it with a soft, dry cloth, without the need to use another type of products.

Basic information
  • Compatibility

    Simon 500 Cima enclosures

  • Remarks

    The plate is snap-fitted for mounting in vertical and horizontal enclosures without the need for an adaptor.

  • Finish

    Graphite

  • Packaging contents

    Flat voice and data plate without dust cover

Technical information
  • Market available

    CE

  • RAL

    7021

  • Compatible with connectors

    Simon®, ADC Krone® KM8 Keystone Series, AMP netconnect® Serie Standard 110, SL110, SL Tool less, 216000 and 216005, BeldenCDT® GigaFlex Keystone Series, Brand-Rex®, Ersys®, General Cable®, Molex®, Panduit® Netkey Series, Ortronics® Clarity TechChoice Keystone Series, Rit®, Systimax® and manufacturers of RJ45 with Keystone I and II format snap fitting.

  • Format

    RJ45

  • IP Rating

    IP20

  • Max temp during construction work (ºC)

    +60 ºC

  • Number of modules

    1

  • Plate type

    Flat

  • RJ45 adaptor module

    Included in voice and data plate

  • RJ45 connectors

    Not included in voice and data plate

  • Snap-fit RJ45 plates

    Keystone I, II, ATT®/Avaya®

  • Snap-fit type

    Keystone I, II, ATT®/Avaya®

  • Temperature range during installation (ºC)

    -5 to 60 ºC

  • Version

    Single

  • Depth (mm)

    11

  • Dimensions (mm)

    50 x 50 x 11

Installation and maintenance
  • Installable in flush mount junction box

    Specific Simon 500 Cima

  • Installation direction

    Vertical, corresponding with the direction of the mechanisms

  • Installation type

    Fixing by direct snap-fit, no tools needed.

  • Removal of the plate

    Only with tool

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50173-1:2011 + EN 50581:2012 + IEC 60603-7-2 Ed 2.0*1 + IEC 60603-7-3 Ed 2.0*2 + IEC 60603-7-4 Ed 2.0*3 + IEC 60603-7-5 Ed 2.0*4

Logistics Information
  • Product net weight

    0.017KGM

  • Product gross weight

    0.017KGM

  • Packaging quantity

    20

  • Packaging height

    88MMT

  • Packaging width

    123MMT

  • Packaging length

    136MMT

  • Packaging volume

    1.472DMQ

  • Packaging net weight

    0.34KGM

  • Packaging gross weight

    0KGM

  • Packaging EAN

    8421053095058
