Simon 500 Cima

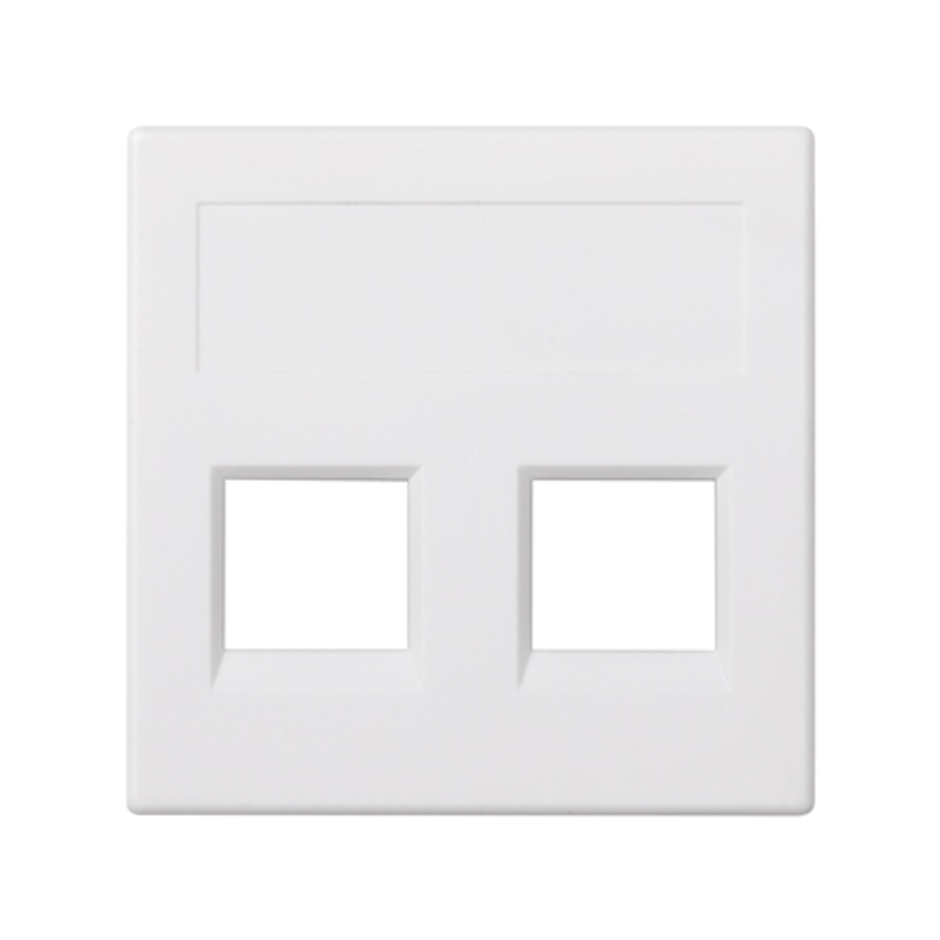

Plate of voice and data of the Simon 500 Cima series. It is a plate completely plate without dust shutter and with an element for one or two RJ45 connectors. The most characteristic of this product is that it is compatible with other manufacturers. Its finish is white, makes it a plate of voice and data very versatile to be placed in an infinite number of spaces.
This is the individual plate for a module, it is possible to set it in horizontal or vertical enclosures without buying adapters for this, as it includes the clips needed for installation in this type of modules, its dimensions are very lamps (50 x50 x 11 mm).
The manufacture of the voice and data plates of the Simon 500 Cima series commitment to the security, resort to halogen-free thermoplastic materials. These components of prevent the propagation of the fire in case of fire.
This plate does not require any type of maintenance, you just need to clean it with a soft, clean cloth and dry and avoid contact with chemical products.
Compatibility
Simon 500 Cima enclosures
Remarks
The plate is snap-fitted for mounting in vertical and horizontal enclosures without the need for an adaptor.
Finish
White
Packaging contents
Flat voice and data plate without dust cover
Market available
CE
RAL
9003
Compatible with connectors
Simon®, ADC Krone® KM8 Keystone Series, AMP netconnect® Serie Standard 110, SL110, SL Tool less, 216000 and 216005, BeldenCDT® GigaFlex Keystone Series, Brand-Rex®, Ersys®, General Cable®, Molex®, Panduit® Netkey Series, Ortronics® Clarity TechChoice Keystone Series, Rit®, Systimax® and manufacturers of RJ45 with Keystone I and II format snap fitting.
Format
RJ45
IP Rating
IP20
Max temp during construction work (ºC)
+60 ºC
Number of modules
1
Plate type
Flat
RJ45 adaptor module
Included in voice and data plate
RJ45 connectors
Not included in voice and data plate
Snap-fit RJ45 plates
Keystone I, II, ATT®/Avaya®
Snap-fit type
Keystone I, II, ATT®/Avaya®
Temperature range during installation (ºC)
-5 to 60 ºC
Version
Single
Depth (mm)
11 mm
Dimensions (mm)
50 x 50 x 11
Installable in flush mount junction box
Specific Simon 500 Cima
Installation direction
Vertical, corresponding with the direction of the mechanisms
Installation type
Fixing by direct snap-fit, no tools needed.
Removal of the plate
Only with tool
Maintenance
Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.
Regulations
Directive 2011/65/UE RoHS + EN 50173-1:2011 + EN 50581:2012 + IEC 60603-7-2 Ed 2.0*1 + IEC 60603-7-3 Ed 2.0*2 + IEC 60603-7-4 Ed 2.0*3 + IEC 60603-7-5 Ed 2.0*4
Product net weight
0.016 KGM
Product gross weight
0.016 KGM
Product EAN
8421053254554
Packaging quantity
20
Packaging height
88 MMT
Packaging width
123 MMT
Packaging length
136 MMT
Packaging volume
1.472 DMQ
Packaging net weight
0.32 KGM
Packaging EAN
8421053095041
