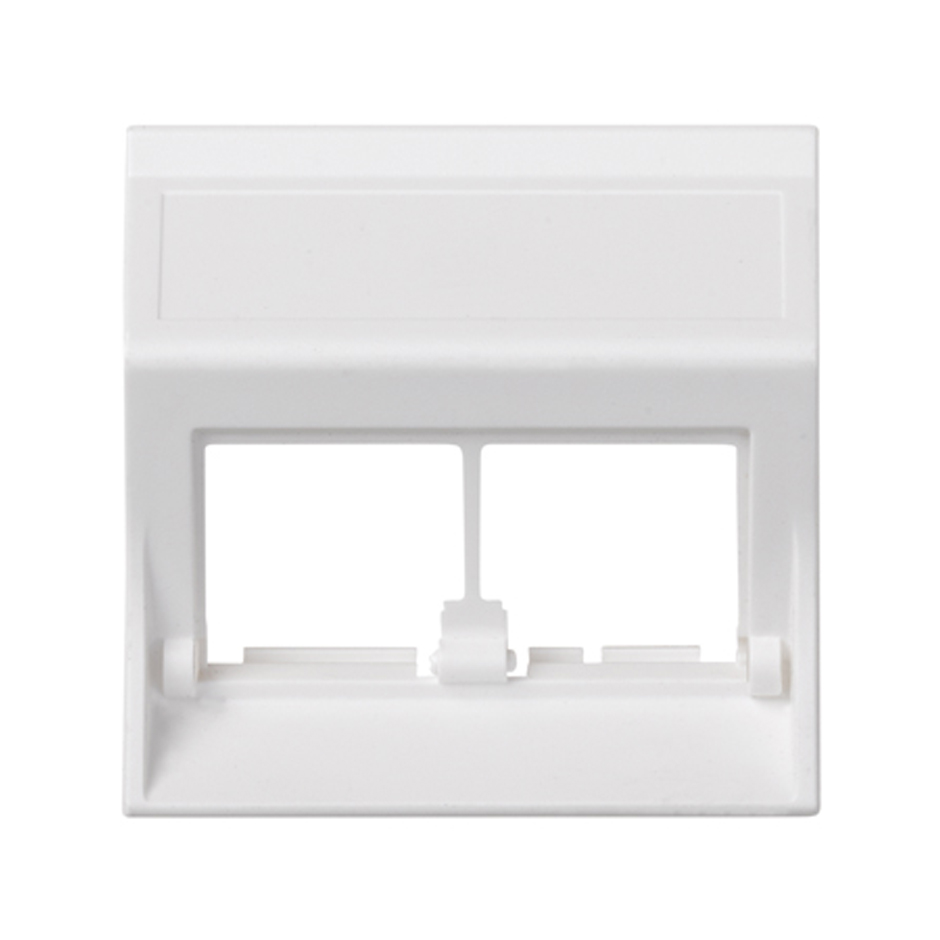

Angled voice and data plate without dust cover for 2 RJ45 white Simon 500 Cima front view

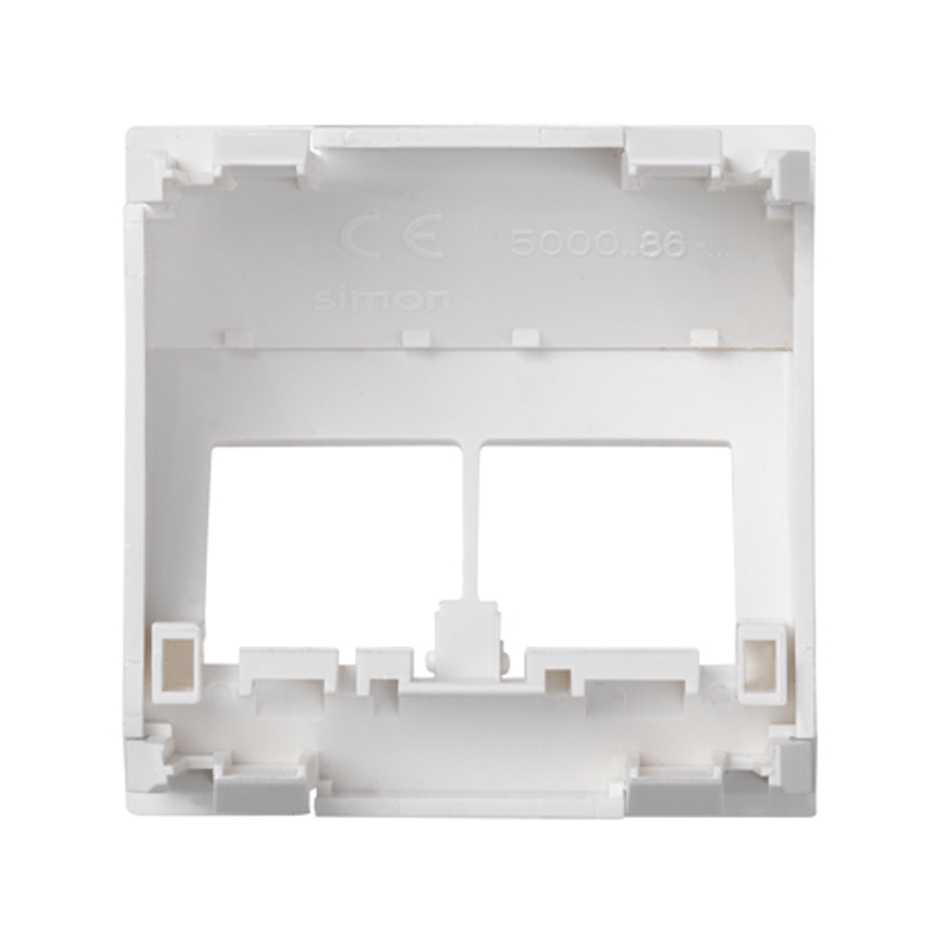

Angled voice and data plate without dust cover for 2 RJ45 white Simon 500 Cima rear view

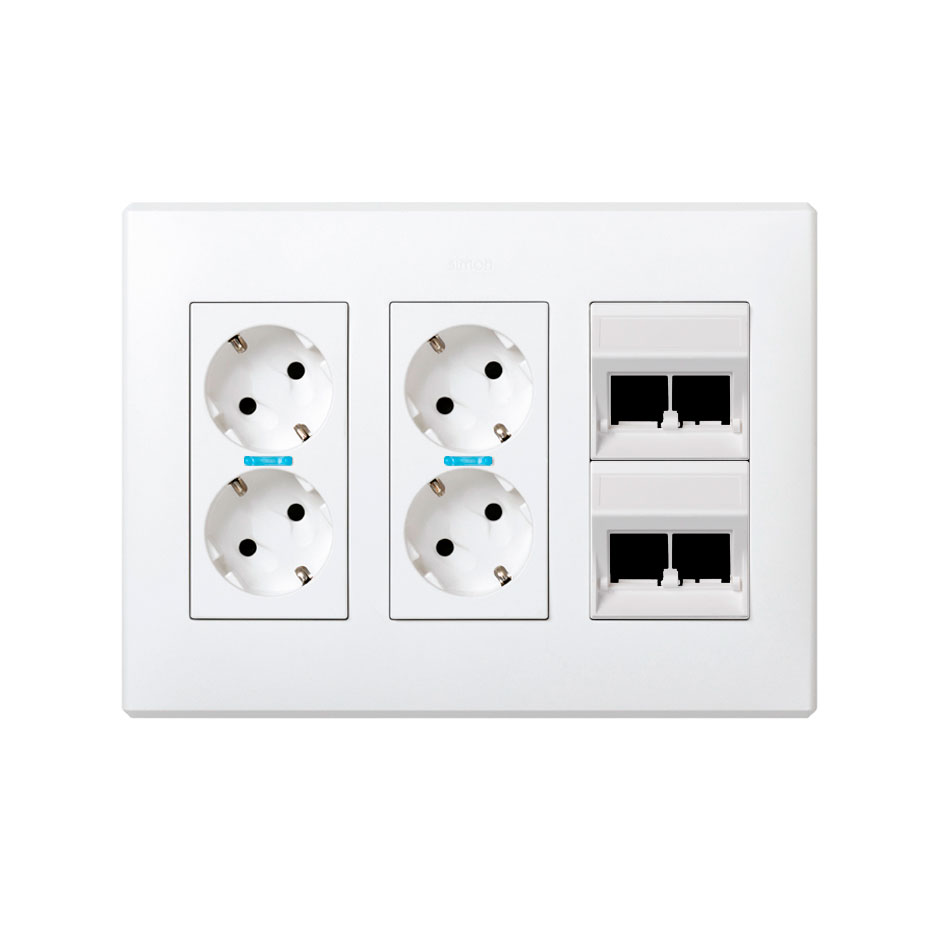

This image represents the combined solution of different references

Ref
50000186-030

Angled voice and data plate without dust cover 1 element for 2 RJ45 white Simon 500 Cima

Price/Unit
Price on request
Packaging quantity
20 Units
Outstanding Features
Series
Simon 500 Cima
Series Compatibility

Simon 500 Cima

Finished in white, this angled voice and data plate of 1 element for 2 RJ45 is made of halogen-free thermoplastic material. It is a resistant material and 100% safe in case of fire, guaranteeing no flame spread in case of fire, as well as the minimum toxicity in case of smoke.

The piece measures 50x50x21 mm and complies with the current regulation. The article comes with clips for fastening in vertical and horizontal enclosures without that requires a adapter. It corresponds to the Simon 500 Cima series, an innovative collection that is committed to the workplace solutions of the spaces.

Another of the features of this series is that presents the click terminal connection, using the will only be necessary to insert and tighten the mechanisms for its installation times, therefore, are reduced considerably. For the cleanliness of this product, use a soft, dry cloth.

Basic information
  • Compatibility

    Simon 500 Cima enclosures

  • Remarks

    The plate is snap-fitted for mounting in vertical and horizontal enclosures without the need for an adaptor.

  • Finish

    White

  • Packaging contents

    Angled voice and data plate without dust cover

Technical information
  • Market available

    CE

  • RAL

    9003

  • Format

    RJ45

  • IP Rating

    IP20

  • Max temp during construction work (ºC)

    +60 ºC

  • Number of modules

    1

  • Plate type

    Angled

  • RJ45 adaptor module

    Not included in voice and data plate

  • RJ45 connectors

    Not included in voice and data plate

  • Snap-fit RJ45 plates

    Corresponding to combined MD module

  • Snap-fit type

    Corresponding to combined MD module

  • Temperature range during installation (ºC)

    -5 to 60 ºC

  • Version

    Single

  • Depth (mm)

    21

  • Dimensions (mm)

    50 x 50 x 21

Installation and maintenance
  • Installable in flush mount junction box

    Specific Simon 500 Cima

  • Installation direction

    Vertical, corresponding with the direction of the mechanisms

  • Installation type

    Fixing by direct snap-fit, no tools needed.

  • Removal of the plate

    Only with tool

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50173-1:2011 + EN 50581:2012 + IEC 60603-7-2 Ed 2.0*1 + IEC 60603-7-3 Ed 2.0*2 + IEC 60603-7-4 Ed 2.0*3 + IEC 60603-7-5 Ed 2.0*4

Logistics Information
  • Product height

    80MMT

  • Product width

    224MMT

  • Product length

    290MMT

  • Product volume

    5196800MMQ

  • Product net weight

    0.012KGM

  • Product gross weight

    0.012KGM

  • Packaging quantity

    20

  • Packaging height

    80MMT

  • Packaging width

    224MMT

  • Packaging length

    290MMT

  • Packaging volume

    1.472MMQ

  • Packaging net weight

    0.24KGM

  • Packaging gross weight

    0KGM

  • Packaging EAN

    8421053095317
