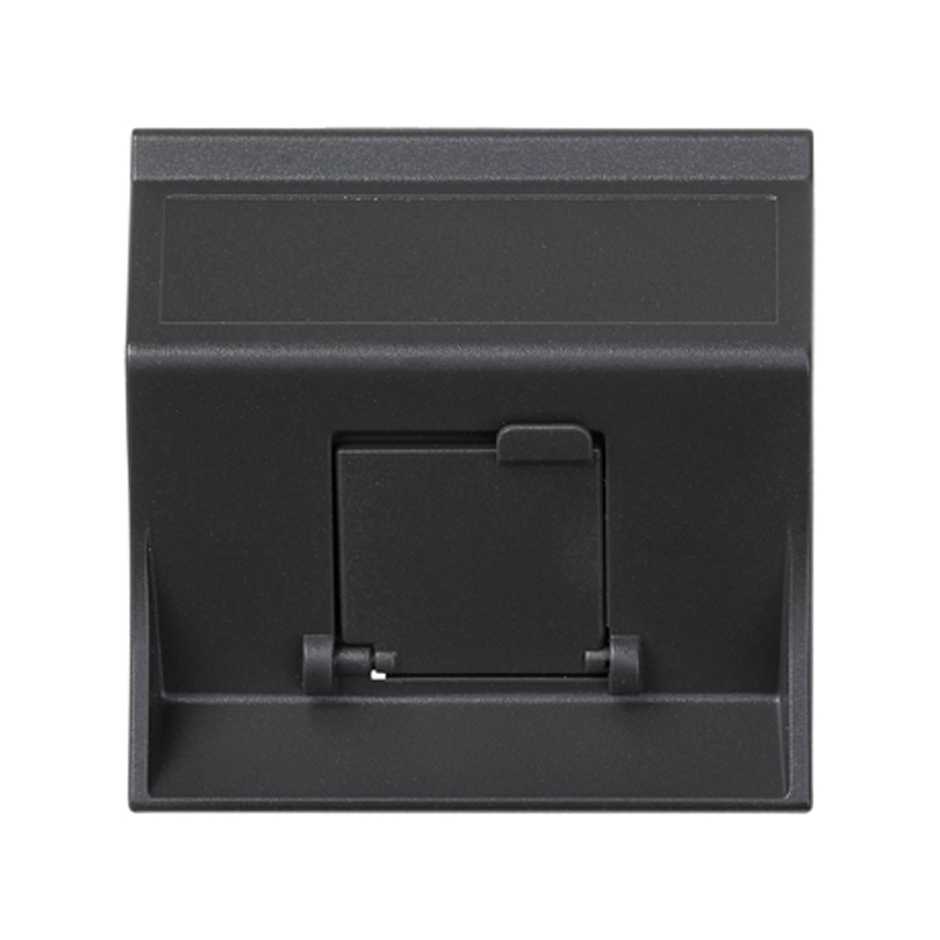

Angled voice and data plate with dust cover for 1 RJ45 graphite Simon 500 Cima front view

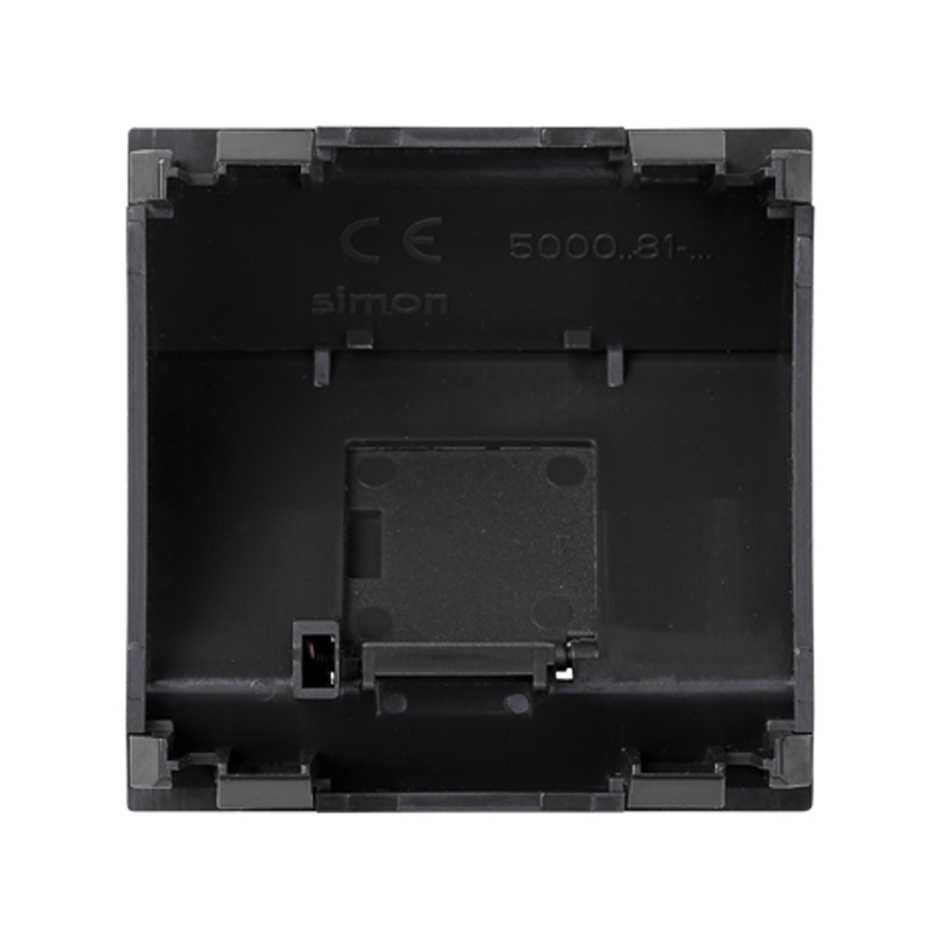

Angled voice and data plate with dust cover for 1 RJ45 graphite Simon 500 Cima rear view

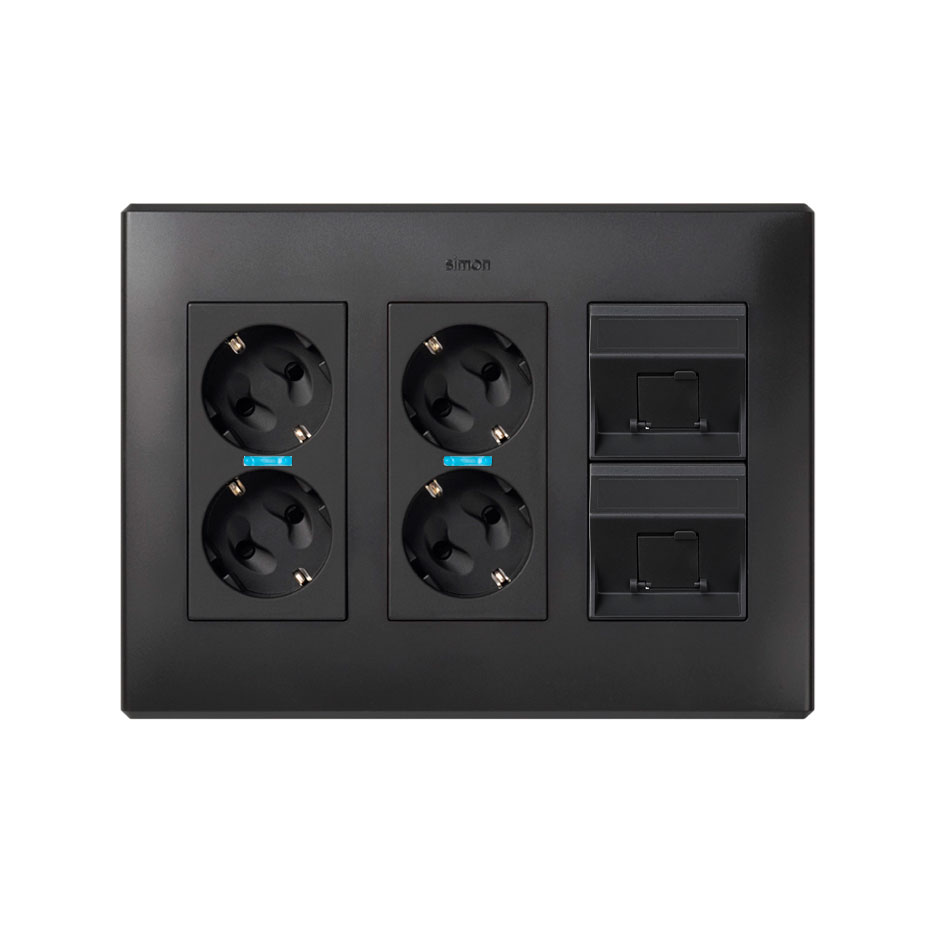

This image represents the combined solution of different references

Ref
50000081-038

Angled voice and data plate with dust cover 1 element for 1 RJ45 graphite Simon 500 Cima

Price/Unit
Price on request
Packaging quantity
20 Units
Outstanding Features
Series
Simon 500 Cima
Series Compatibility

Simon 500 Cima

Simon offers you a solution for every need in connectivity systems for voice, data and multimedia connections, and electrical system.

Compatibility with IT connectors of other brands, easy installation without the need for special tools or screws.

Modularity, speed, convenience and security, not only for people, but for installations. Allows you to expand the system, whenever necessary, adapting to the new technologies or reconnecting with existing installations.

The Cima 500 range, facilitates installation, as it has the same plate for all types of housings: Snap-fit horizontal and vertical. New window format to indicate the correct position of the patch cord. This is a an angled voice and data plate with dust cover and 1 element for 1 RJ45. Graphite finish, Simon 500 Cima range.

Suitable for combined MD module. Single Angled Plate. Plate for 1 and 2 RJ45. The plate includes clips for fastening in vertical and horizontal housings without the need for an adaptor.

Dimensions 50 x 50 x 21 mm

Halogen-free thermoplastic material; guarantees no flame propagation in case of fire and low toxicity in the event of smoke generation. Resistant to corrosion and extreme temperatures. Easy maintenance.

Clean with a soft and dry clean. It is not recommended to use cleaners that contain chlorine.

Basic information
  • Compatibility

    Simon 500 Cima enclosures

  • Remarks

    The plate is snap-fitted for mounting in vertical and horizontal enclosures without the need for an adaptor.

  • Finish

    Graphite

  • Packaging contents

    Angled voice and data plate with dust cover

Technical information
  • Market available

    CE

  • RAL

    7021

  • Format

    RJ45

  • IP Rating

    IP20

  • Max temp during construction work (ºC)

    +60 ºC

  • Number of modules

    1

  • Plate type

    Angled

  • RJ45 adaptor module

    Not included in voice and data plate

  • RJ45 connectors

    Not included in voice and data plate

  • Snap-fit RJ45 plates

    Corresponding to combined MD module

  • Snap-fit type

    Corresponding to combined MD module

  • Temperature range during installation (ºC)

    -5 to 60 ºC

  • Version

    Single

  • Depth (mm)

    21

  • Dimensions (mm)

    50 x 50 x 21

Installation and maintenance
  • Installable in flush mount junction box

    Specific Simon 500 Cima

  • Installation direction

    Vertical, corresponding with the direction of the mechanisms

  • Installation type

    Fixing by direct snap-fit, no tools needed.

  • Removal of the plate

    Only with tool

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2011/65/UE RoHS + EN 50173-1:2011 + EN 50581:2012 + IEC 60603-7-2 Ed 2.0*1 + IEC 60603-7-3 Ed 2.0*2 + IEC 60603-7-4 Ed 2.0*3 + IEC 60603-7-5 Ed 2.0*4

Logistics Information
  • Product net weight

    0.014KGM

  • Product gross weight

    0.014KGM

  • Packaging quantity

    20

  • Packaging height

    88MMT

  • Packaging width

    123MMT

  • Packaging length

    136MMT

  • Packaging volume

    1.472DMQ

  • Packaging net weight

    0.28KGM

  • Packaging gross weight

    0KGM

  • Packaging EAN

    8421053095300
