Customisable set with cover and brush, 3 schuko socket outlets and 3 empty elements black S400 Indesk
Simon 400

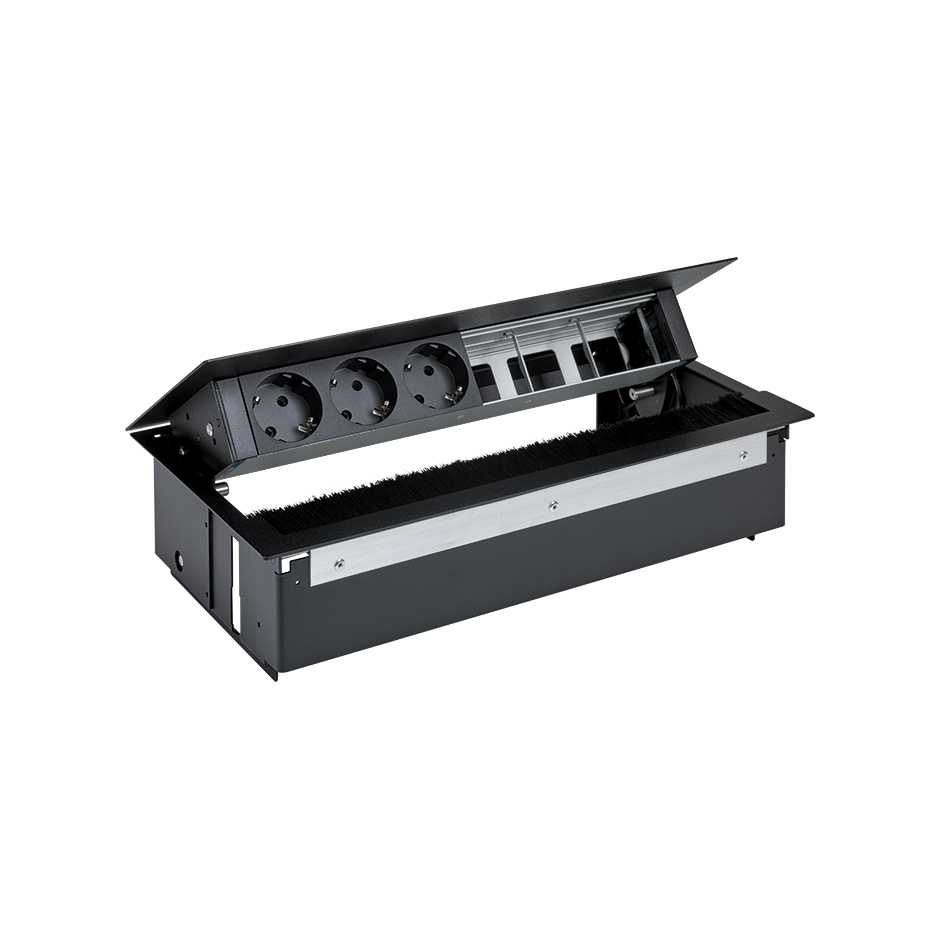

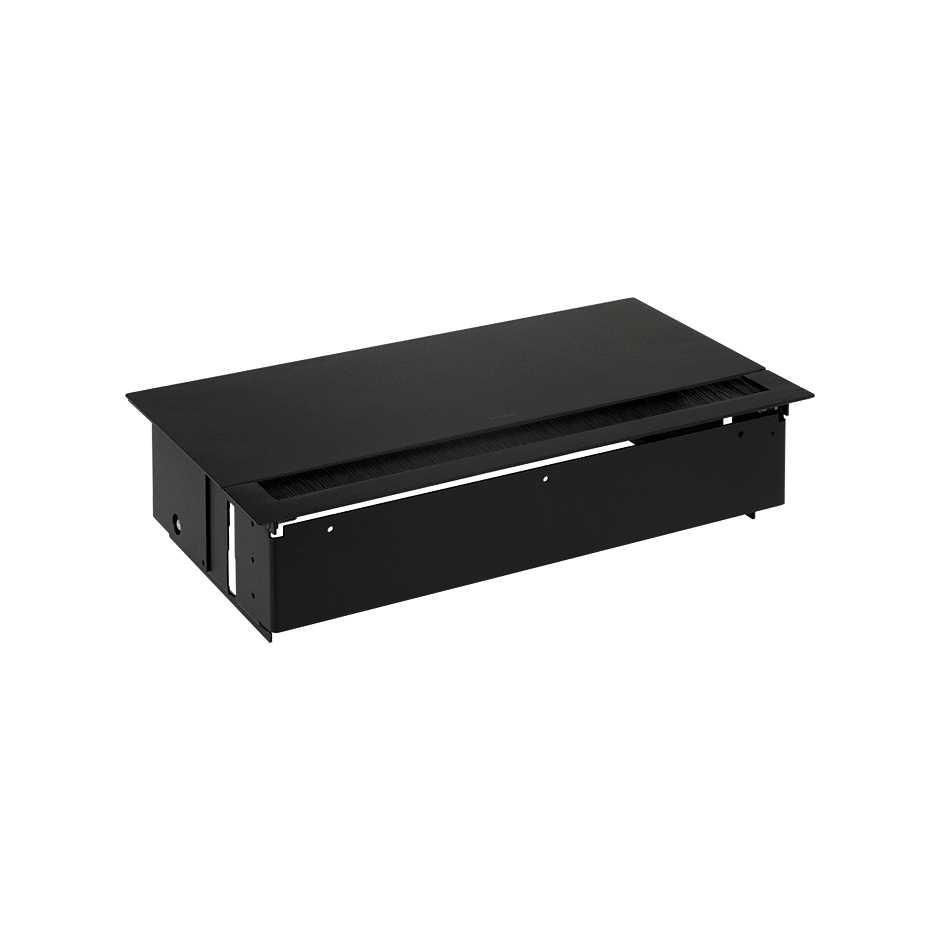

Kit within the table customizable in black colour, series Simon 400 Indesk with cover and brush strip and 3 sockets for Schuko plugs and 3 empty elements.
It is manual elevation and access to the cabling is done with brush strip and has dimensions of 340 x 185 x 85 mm, approximately.
It is made of painted steel enclosure, profile of anodised aluminium and the covers and fastenings are manufactured in self-extinguishing thermoplastic and halogen-free, so that it is to guarantee the no-propagation of the spread in case of fire and a level of low toxicity in case of smoke.
When cleaning, it is a task quite simple because just need to use a dry and soft cloth, without having to use never abrasive cloths or cleaners containing chlorine in its formulation, as it could be damaged and does not operate correctly.
-
Compatibility
Functions of the Simon 400 range, combinable with the Simon Electric Cabling range.
-
Remarks
To complete the product installation combine it with the Simon 400 functions (refs. 400XXXXX-03X).
-
Finish
Black
-
Material
Metal
-
Packaging contents

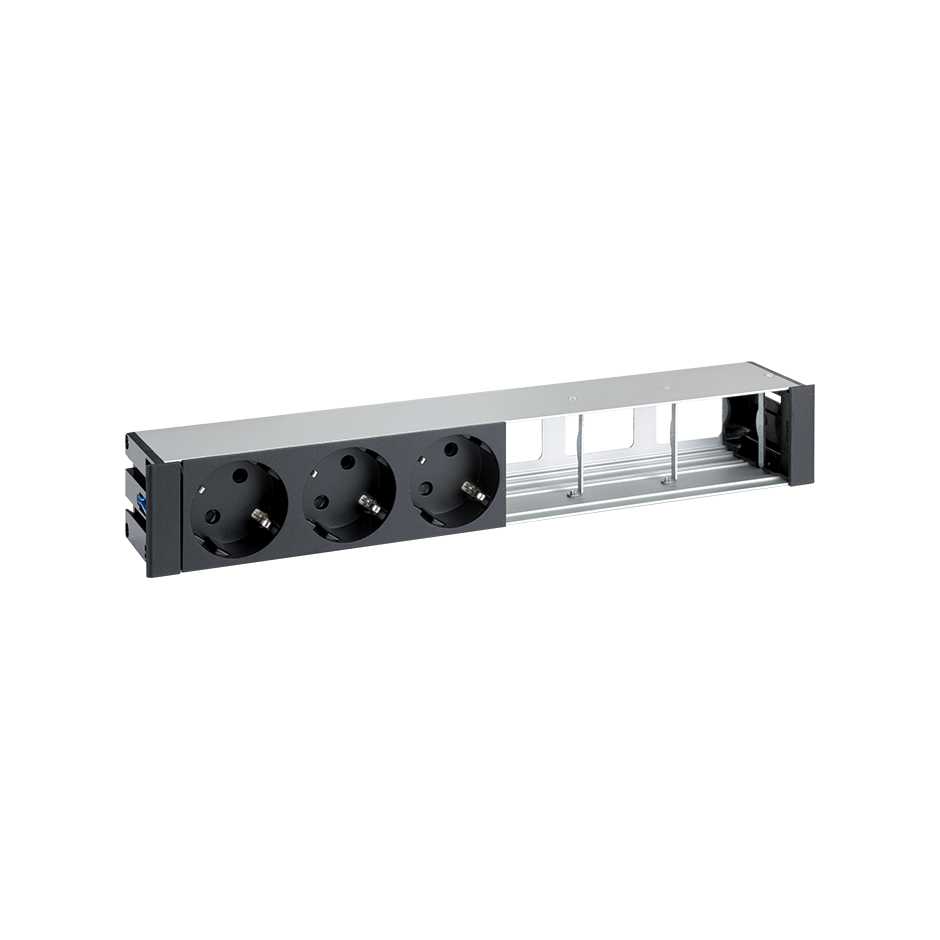

Pre-wired profile, enclosure, fastening claws and installation manual.
-
Description Video
In desk Installation Simon 400
-
Market available
CE
-
Number of rear entrances
3
-
RAL
9005
-
Dielectric strength
No holes or contours, with 2000V at 50 Hz for 1 minute
-
Format
Schuko
-
Heat resistance (ºC)
+70ºC (according to standard IEC 60670)
-
Insulation resistance (V-MΩ)
>5 M? at 500 V
-
Intensity (A)
16 A
-
IP Rating
IP30
-
Max temp during construction work (ºC)
+60�C
-
Number of possible elements
3
-
Number of sockets
3 sockets for standard current circuit
-
Protection against entry of dust and small objects
Yes, thanks to the included protective cover and cable outlet with brush
-
Recess dimension (mm)
318 x 175 mm (± 2mm)
-
Temperature range during installation (ºC)
-5 at +60� C
-
Type of power supply connector
Wieland� GST 18i male 3-pole overhead connector with 22 cm patch cord
-
Version
6 elements
-
Voltage (V~)
250 V~
-
Depth (mm)
85
-
Dimensions (mm)
338 x 185 x 85
-
Description Video
In desk Installation Simon 400
-
Number of cover opening positions
1
-
Cabling access
With brush
-
Claw range of operation (mm)
Between 20 and 40 mm
-
Extinguishing (ºC)
+70 ºC (according to standard IEC 60670)
-
Installation type
Suitable for recessed mount in furniture.
-
Opening orientation
At 45�
-
Removal of the frame
Only with tool
-
Removal of the plate
Only with tool
-
Securing possibilities
Using supplied claws or screws in the available holes
-
Securing without accessories
Supplied with all necessary materials for installation.
-
Type of fastening
By lateral tightening of claws provided with the enclosure. Optional possibility to fasten the enclosure with screws through the provided holes in the sides of the enclosure chassis.
-
Description Video
In desk Installation Simon 400
-
Video installation
Watch video -
Maintenance
Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.
-
Regulations
Directiva 2014/35/UE LVD;Directiva 2011/65/UE RoHS;EN 50581:2012;EN 60670-1:2005;EN 60670-1:2005 A1:2013;IEC 60884-1 Ed 3.2;
-
Product net weight
1.95KGM
-
Product gross weight
1.95KGM
-
Product EAN
8421053196625
-
Packaging quantity
1
-
Packaging height
365.00MMT
-
Packaging width
192.00MMT
-
Packaging length
95.00MMT
-
Packaging volume
6657600.00MMQ
-
Packaging net weight
1.95KGM
-
Packaging gross weight
0.00KGM
-
Packaging EAN
8421053196625
