Ref
44570-38

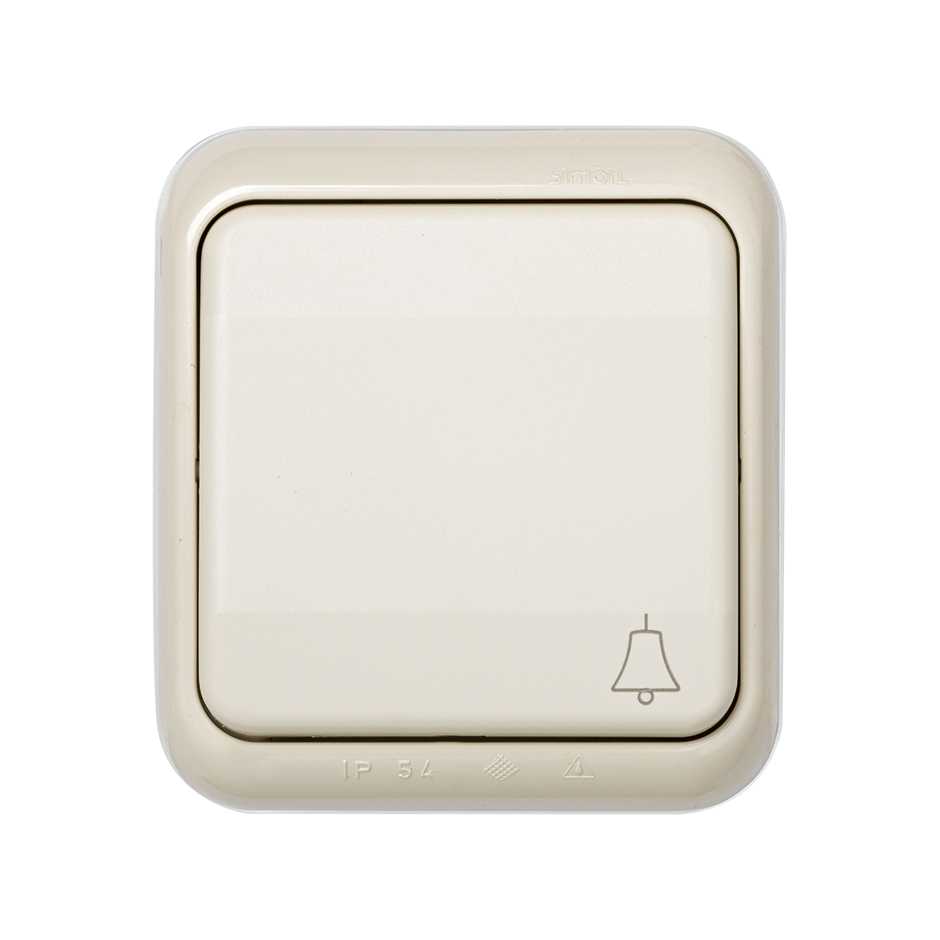

Monoblock push-button switch IP54 10A 250V~ with bell symbol and screw terminal connection system ivory Simon 44

Price/Unit
€23.14
Packaging quantity
10 Units

Available downloads

Data sheet

44570-38.pdf

Outstanding Features
Series
Simon Aqua
Series Compatibility

Simon Aqua

Product Information

Monoblock push-button switch IP54, in ivory colour and with bell symbol, belonging to the series Simon 44, one of the series of Simon that has products with great durability and that stand out for its compatibility with all kinds of environments.

Simon 44 is a range of products that stands out for offering solutions for harsh environments, (with water and dust, namely) and also for outdoor areas. The entire range of products of the Simon 44 is comprised by an enclosure, which protects from water and dust protection to the mechanisms of the series Simon 27. Also, you may note that offers a great quantity (QTY.) of electronic functions such as: Control and adjustment of lighting, control of lighting, programming of temperature, centralization of blinds, signalling, security and protection, sound and programming and clocks..

Its current is 10 A, its screw-terminal connection/screw-terminals connection and works by tilting. It also has an element and works with a voltage of 250 V.

Basic information
  • Compatibility

    Simon 27 mechanisms

  • Remarks

    Only for replacement

  • Finish

    Ivory

  • Packaging contents

    Mechanism and frame with rocker

Technical information
  • Market available

    CE

  • IP Rating

    IP54

  • Number of possible elements

    1 element

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Claw

    Simon 27

  • Installable in flush mount junction box

    Universal

  • Installation direction

    Vertical

  • Installation type

    Suitable for surface mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    Directive 2014/35/UE LVD + Directive 2011/65/UE RoHS + EN 50581:2012 + EN 60669-1:1999 + EN 60669-1:1999 A1:2002 + EN 60669-1:1999 A2: 2008 + EN 60670-1:2005

Logistics Information
  • Product net weight

    0.094 KGM

  • Product gross weight

    0.094 KGM

  • Packaging quantity

    10

  • Packaging height

    91 MMT

  • Packaging width

    174 MMT

  • Packaging length

    223 MMT

  • Packaging volume

    3530982 MMQ

  • Packaging net weight

    0.94 KGM

  • Packaging gross weight

    0.94 KGM

  • Packaging EAN

    8421053041567
