Ref
36000026-099

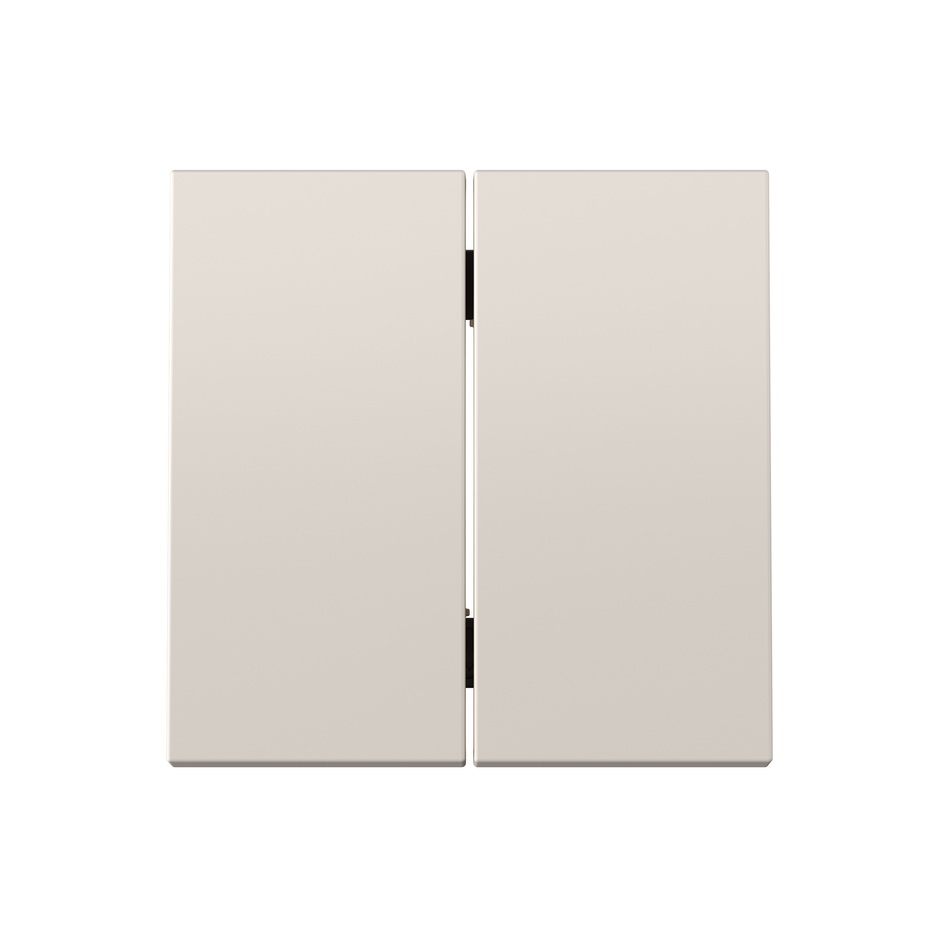

Double rocker for tilting mechanism sand matte Simon 360

Price/Unit
Price on request
Packaging quantity
5 Units

Available downloads

Product declaration

  1. UES0326.pdf [543KB]

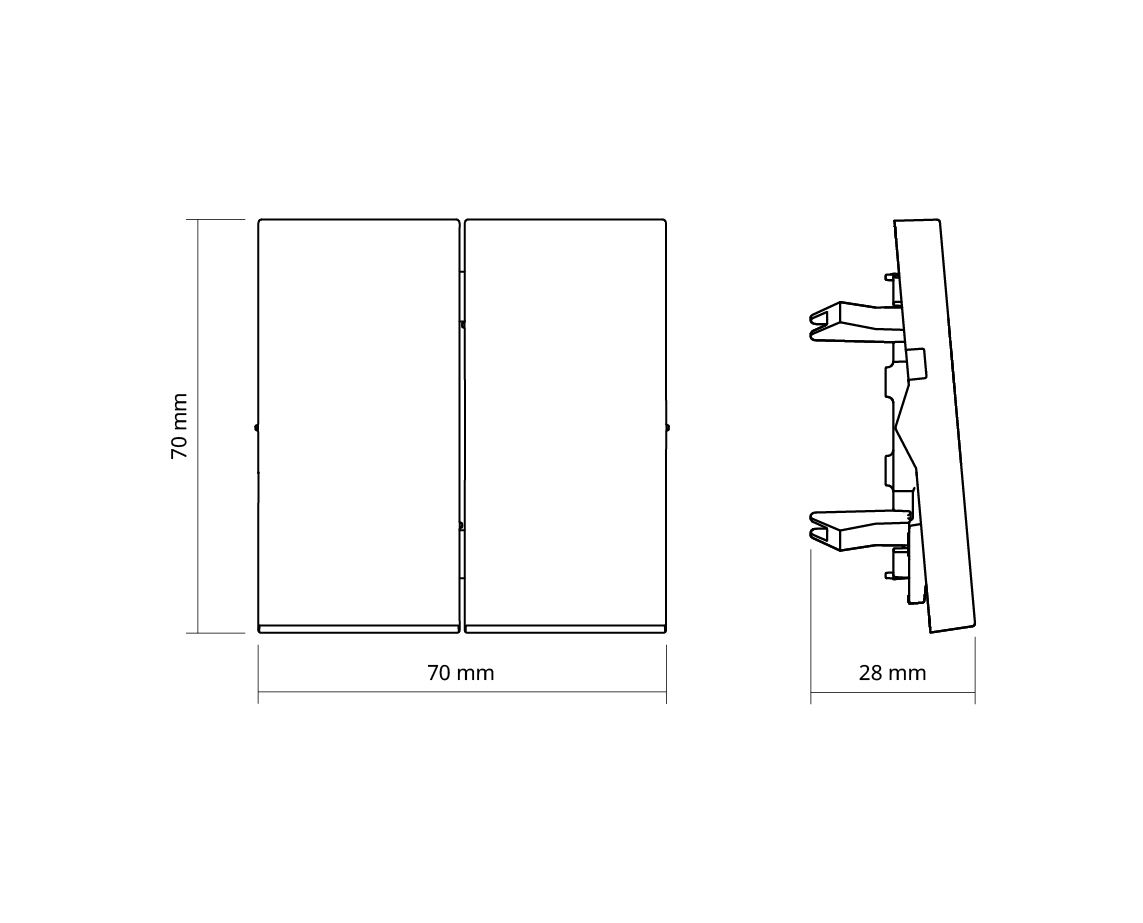

Drawing and dimensions

  1. D36000026.jpg [66KB]

Do you need advice?
Outstanding Features
Series
Simon 360
Series Compatibility

Simon 360

<p class=>Set 2 push-button switches 10A 250V~ front view</p>
Ref
75399-39
Group of 2 push buttons 10 A 250V~ (1 input + 2 outputs) with quick terminal connection system Simon 75
<p class=></p>
Ref
7502251-039
Group of 2 intermediate switches 10AX 250V~ with quick terminal connection system Simon 75
<p class=>Set 2 switches 10AX 250V~ front view</p>
Ref
75398-39
Group of 2 switches 10 AX 250V~ with quick terminal connection system Simon 75
<p class=>Set 2 2-way switches 10AX 250V~ front view</p>
Ref
75397-39
Group of 2 two-way switches 10 AX 250V~ with quick terminal connection system Simon 75
<p class=></p>
Ref
36000610-099
Frame for 1 element sand matte with aligner Simon 360
Product Information
Downloads
Support

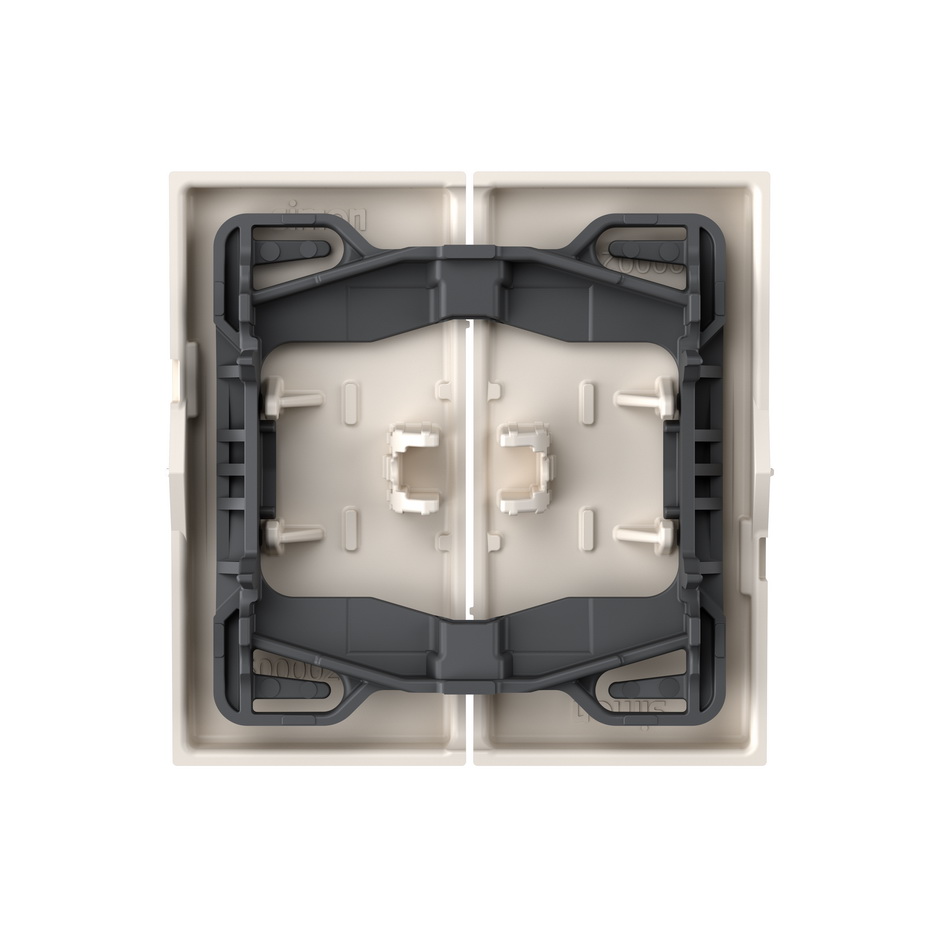

Double key for tilting mechanism in sand finish of the Simon 360 series. The matte finish, in addition to being trendy and integrating into any environment, prevents light reflections and reduces maintenance by minimizing stains and fingerprints. Soft and quality feel that provides a sophisticated product sensation in all colors of the series. Urea is the main material and has high resistance and durability, ensuring a long service life. Key designed for installation in Simon 75 tilting mechanisms.

Basic information

  • Compatibility

    Mecanismos Simon 75

  • Remarks

    Available in 3 matte finishes s360. Frame available in the same color as the selected interior to create a single-color set or the possibility of a bicolor set. For cleaning, it is recommended to use a cloth slightly dampened with soapy water, avoiding the use of abrasive cloths or cleaners containing chlorine, to prevent damage to the product's surface.

  • Finish

    Sand

  • Material

    Thermostable

Technical information

  • RAL

    7044

  • Format

    Push-button

  • IP Rating

    IP20

  • Dimensions (mm)

    70 x 70 x 28

Installation and maintenance

  • Installation direction

    Horizontal, Vertical

  • Removal of cover

    Only with tool

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Logistics Information

  • Product height

    0MMT

  • Product width

    0MMT

  • Product length

    0MMT

  • Product volume

    0MMQ

  • Product net weight

    0.031KGM

  • Product gross weight

    0.036KGM

  • Product EAN

    8421053436998

  • Packaging quantity

    5

  • Packaging height

    85MMT

  • Packaging width

    80MMT

  • Packaging length

    120MMT

  • Packaging volume

    816000MMQ

  • Packaging net weight

    0.155KGM

  • Packaging gross weight

    0.185KGM

  • Packaging EAN

    8421053437001
