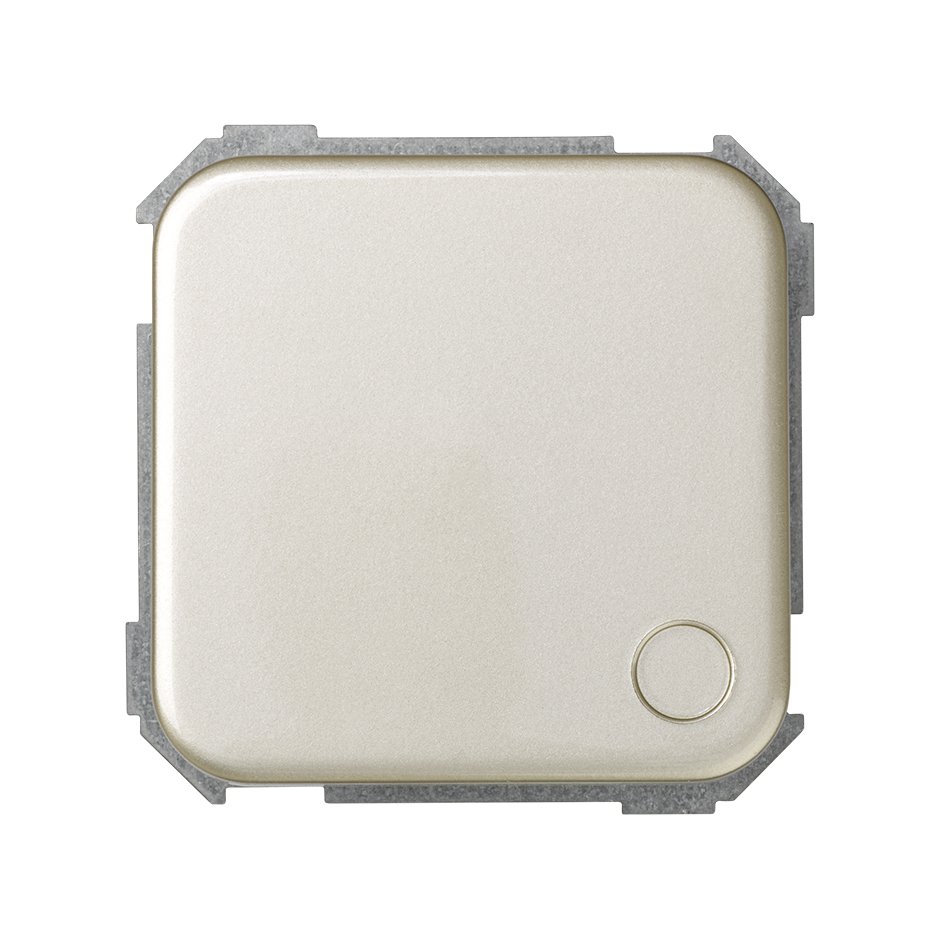

Neutral push-button switch for pictogram 10AX 250V~ Simon 31 champagne front view

Neutral push-button switch for pictogram 10AX 250V~ Simon 31 champagne front view

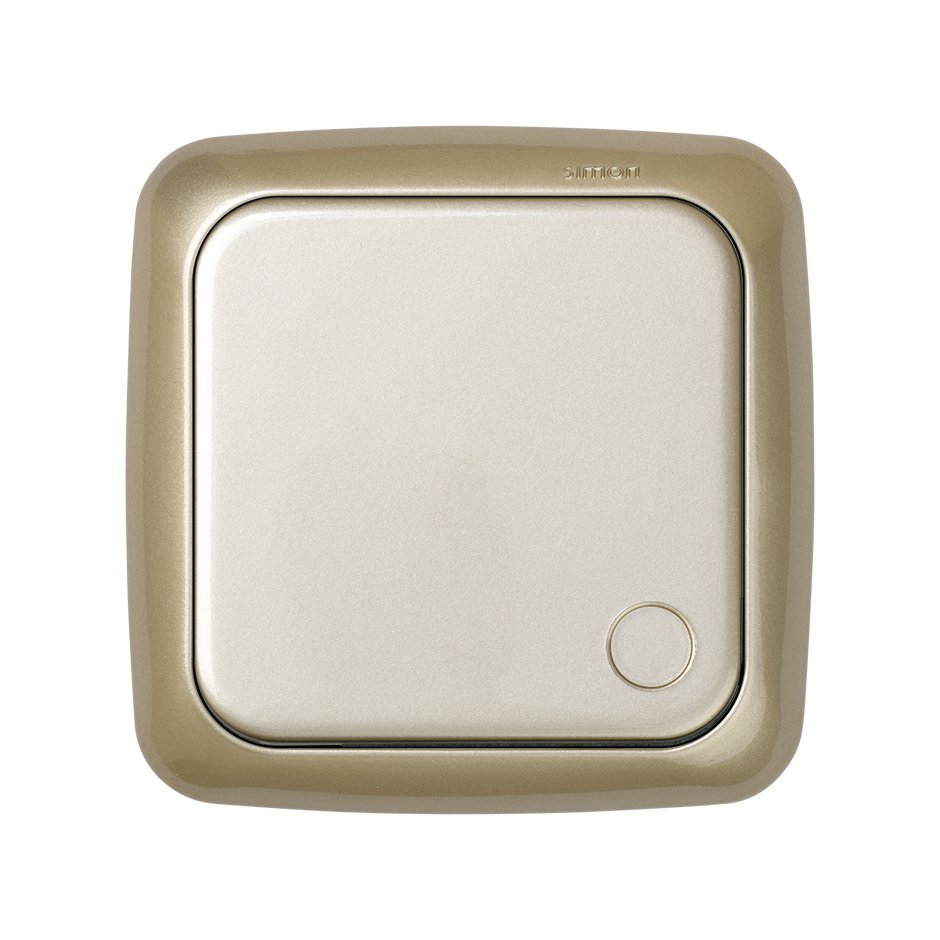

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31659-34

Neutral push-button switch 10AX 250V~ with housing for pictogram and fast terminal connection system champagne Simon 31

Price/Unit
€11.33
Discontinued
Packaging quantity
10 Units

Available downloads

Data sheet

31659-34.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

Neutral push-button switch 10A current and 250V. Has housing for pictograms and it has a quick terminal system. It has a rocker operation. This push-button switch is part of the Simon 31 series and has a beautiful finished in champagne colour.

The push button of the Simon 31 series are available in three different finishes, to ensure a enviable appearance, it is recommended to use the frame in the same colour as the rocker selected. In this case, the recommendation is resorting to the frame Simon in champagne colour.

This is the individual version, for one element and two modules of the push-button switch, measures lamps, 64 x 65 millimetres and does not include any type of engraving. The wire section admitted is from 1.5 to 2.5 millimetres and the stripping of wire necessary is 11 millimetres.

It is manufactured from metal materials, isolated thermoplastically and halogen-free. The trim is metallized thermoplastic. These materials are perfect for increasing safety during use, as they withstand very variable and extreme temperatures.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Available in 3 finishes. It is recommended to choose a frame the same colour as the selected rocker.

  • Finish

    Champagne

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.082 KGM

  • Product gross weight

    0.082 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    0.82 KGM

  • Packaging gross weight

    0.82 KGM

  • Packaging EAN

    8421053009178
