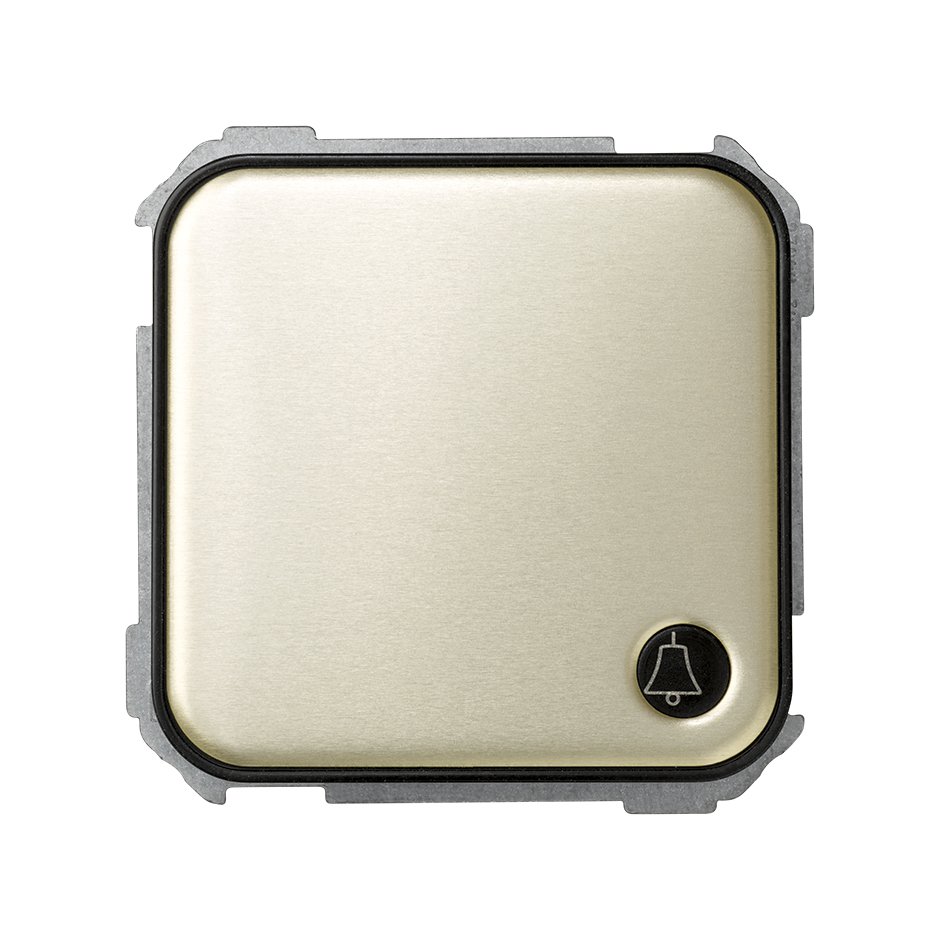

Push-button switch with bell symbol 10A 250V~ and fast terminal connection system decorative brown Simon 31 front view

This image represents the combined solution of different references

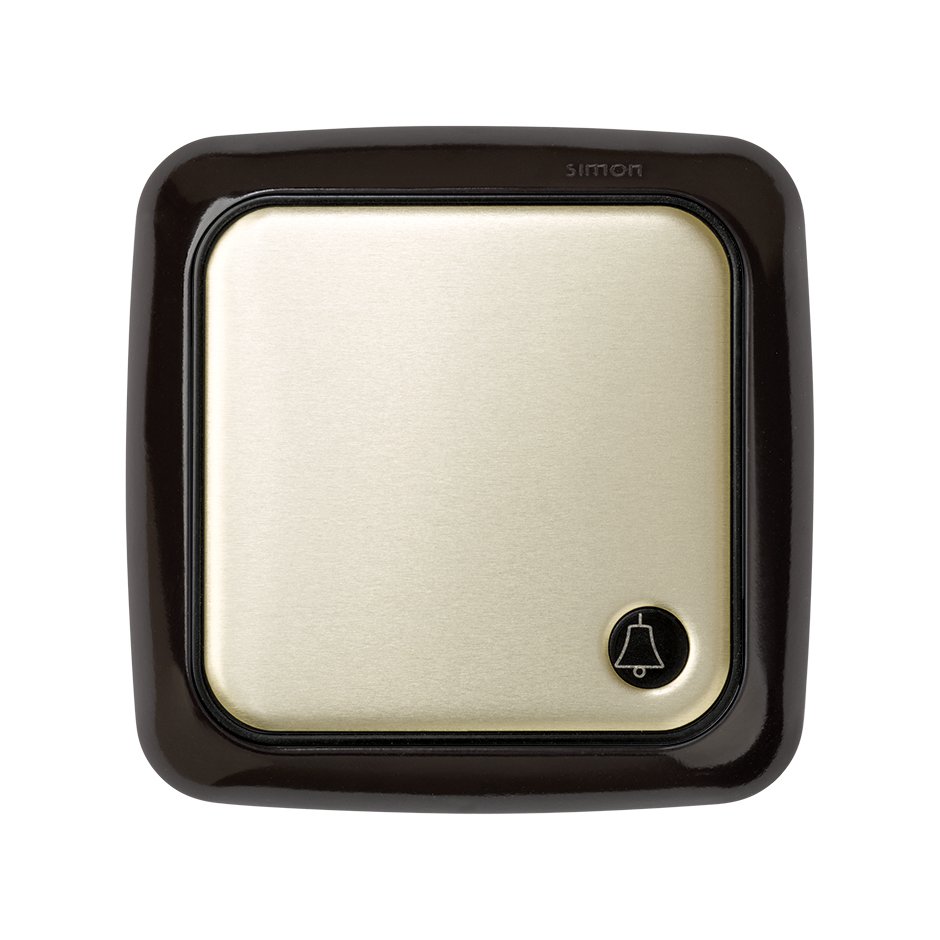

Push-button switch with bell symbol 10A 250V~ and fast terminal connection system decorative brown Simon 31 front view

This image represents the combined solution of different references

Ref
31650-36

Push-button switch with bell symbol 10A 250V~ and fast terminal connection system decorative brown Simon 31

Price/Unit
Price on request
Discontinued
Packaging quantity
10 Units

Available downloads

Technical specifications
31650-36-datasheet-en.pdf
Do you need advice?
Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information
Support

The Simon 31 series, among its mechanisms, it includes the push-button switch in brown finish with bell symbol. For use in stamps. Presents a single element and two modules, in its individual version. Its reference is the 31650-36.

It has a quick terminal connection system and a rocker operation.

Supports up to 10.00 A and a voltage of 250V~

It is recommended to choose the frame in the same colour as the rocker selected.

It includes the engraving in the form of bell in rockers, covers and plates.

The cross-cable section is between 1.5 to 2.5mm and the stripping of wire necessary of 11mm.

It is composed of several elements components with insulation, halogen-free and with a trim finished in metal.

It measures 64x65mm.

Basic information

  • Compatibility

    Simon 31 frames

  • Remarks

    Available in 5 finishes. It is recommended to choose a frame the same colour as the selected rocker.

  • Finish

    Decorative brown

  • Packaging contents

    Mechanism with rocker

Technical information

  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance

  • Cable stripping necessary (mm)

    11

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information

  • Product volume

    3026595MMQ

  • Product net weight

    0.097KGM

  • Product gross weight

    0.097KGM

  • Packaging quantity

    10

  • Packaging height

    83MMT

  • Packaging width

    165MMT

  • Packaging length

    221MMT

  • Packaging volume

    3026595MMQ

  • Packaging net weight

    0.97KGM

  • Packaging gross weight

    0.965KGM

  • Packaging EAN

    8421053009949
