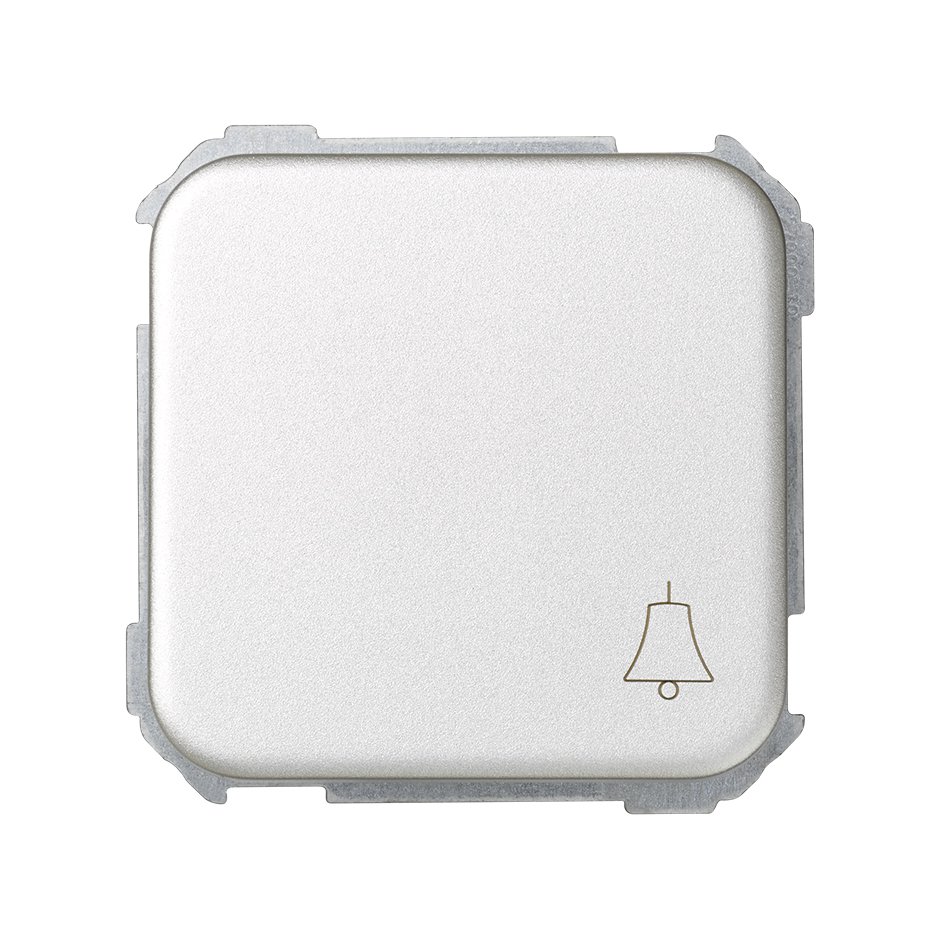

Push-button switch with bell symbol 10A 250V~ Simon 31 aluminium front view

Push-button switch with bell symbol 10A 250V~ Simon 31 aluminium front view

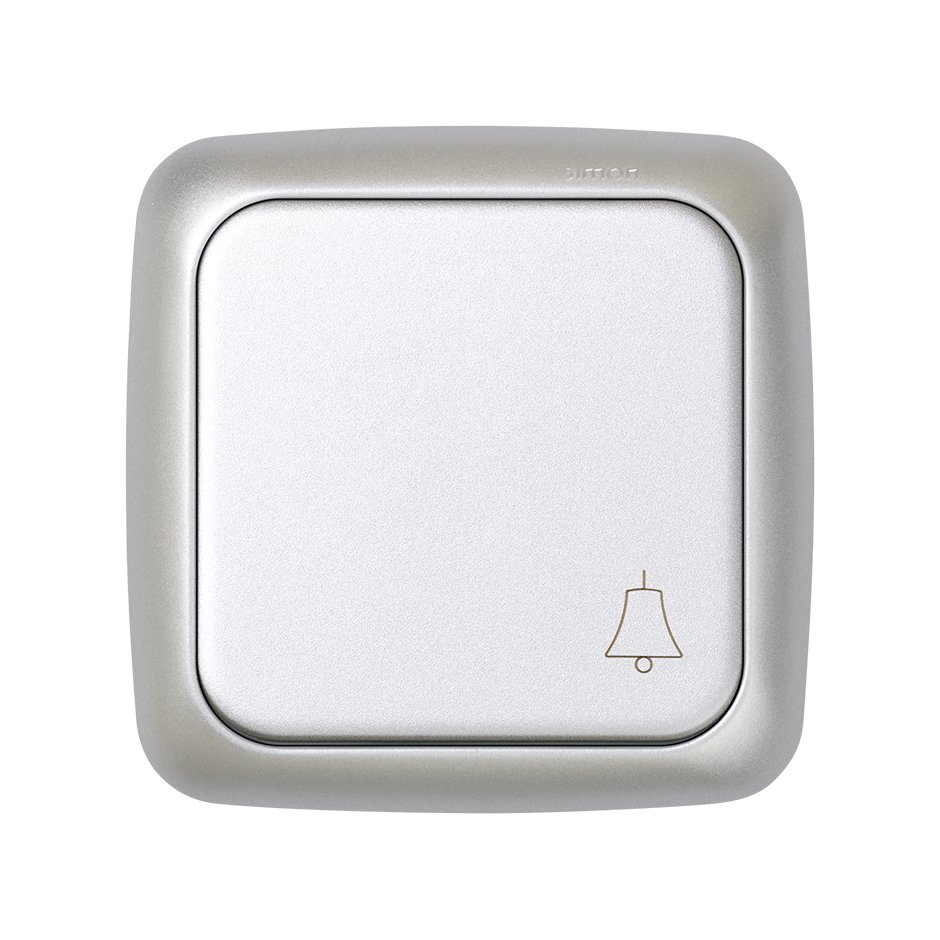

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31650-33

Push-button switch with bell symbol 10A 250V~ and fast terminal connection system aluminium Simon 31

Price/Unit
€14.80
Packaging quantity
10 Units

Available downloads

Data sheet

31650-33.pdf

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

With a discreet bell engraved, the push-button switch of the collection Simon 31 with finishes in stylish aluminium, guaranteeing the integration of the set in spaces, adding a compact sophisticated style with a certain nod original.

Made of metal materials with thermoplastic isolated, protecting the room in case of fire, avoiding the flame spread and toxicity by smoke.

It consists of 2 modules for 1 element, compatible with power supplies of 250 Volt and 10 Amps.

The push-button switch with bell engraving, it includes rocker operation system and is designed for installation with quick terminal connection to minimize the time of the assembly, at the same time to maximize the versatility and functionality of the product.

Once again, the collection Simon 31 becomes synonymous with functionality, innovation and security inside the most practical and stylish design.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    Available in 5 finishes. It is recommended to choose a frame the same colour as the selected rocker.

  • Finish

    Aluminium

  • Packaging contents

    Mechanism with rocker

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    From 1,5 to 2,5 mm

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Type of mechanism

    Pivoting

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    11 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE-EN 60669-1:2002 + A1:2003 + A2:2009

Logistics Information
  • Product net weight

    0.079 KGM

  • Product gross weight

    0.079 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3.027 DMQ

  • Packaging net weight

    0.79 KGM

  • Packaging gross weight

    0.79 KGM

  • Packaging EAN

    8421053071830
