Ref
31472-60

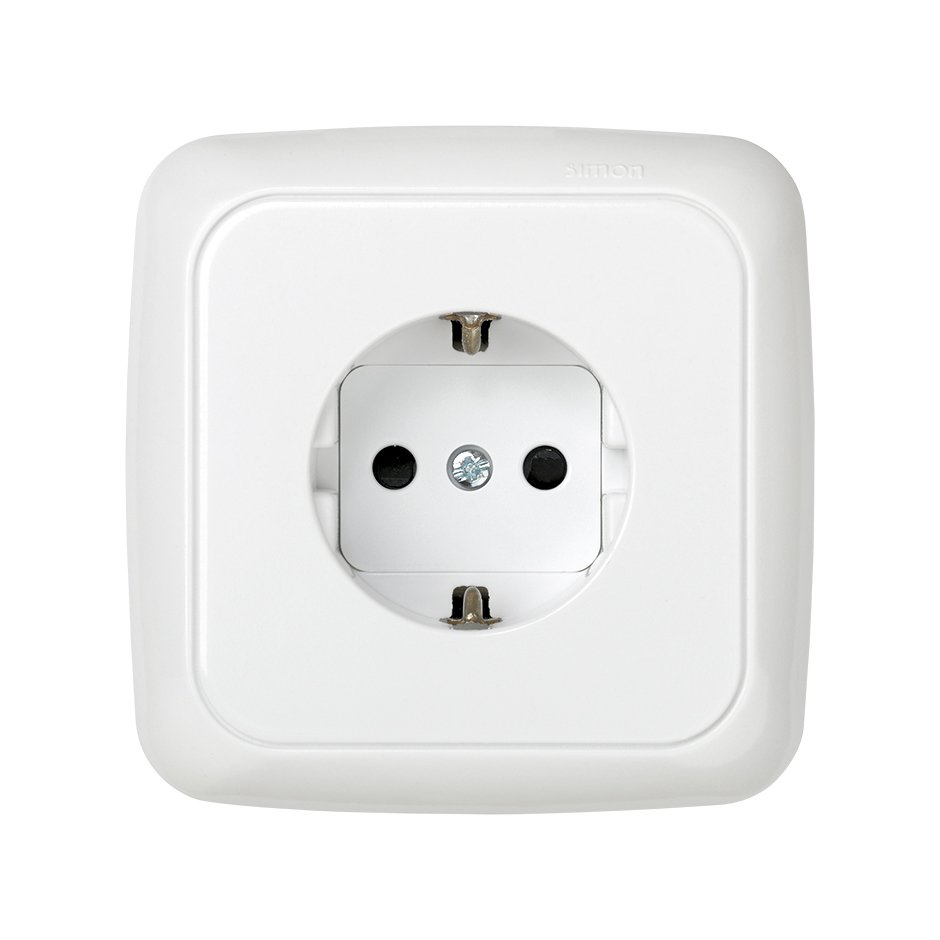

German monoblock socket outlet 16A 250V~ with safety device and screw terminal connection white Simon 31

Price/Unit
Price on request
Packaging quantity
10 Units

Available downloads

Technical specifications
Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Security, functionality and innovation, are the three basic no pillars in the socket-outlet Monoblock Schuko Simon 31. With safety device included, the cover has child protection function for which the security is only expand to all the facets of their room.

Finished in white and a dimension 87 x 87 mm, it consists of 2 modules for 1 element, with a cross-section of wire cross-section of 2.5 mm with a stripped wire 13 mm, it also, thanks to its installation with screw terminal connection, guaranteeing the integration of the set in the space. This socket-outlet is compatible with a voltage of power of 250 Volts, and 16 Amps.

It is made up of halogen-free thermoplastic and Thermoset caps to prevent the flame spread and toxicity by smoke in case of fire. Thanks to its materials on the composition, it can reach maximum temperatures of -25 to 50 ºC.

Basic information
  • Remarks

    The covers include a child-proof protective feature.

  • Finish

    White

  • Packaging contents

    Socket outlet with cover and frame

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    13

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE 20315-1-1:2009, UNE 20315-1-2:2009

Logistics Information
  • Product net weight

    0.12KGM

  • Product gross weight

    0.12KGM

  • Packaging quantity

    10

  • Packaging height

    91MMT

  • Packaging width

    180MMT

  • Packaging length

    225MMT

  • Packaging volume

    3685500MMQ

  • Packaging net weight

    1.2KGM

  • Packaging gross weight

    1.2KGM

  • Packaging EAN

    8421053055731
