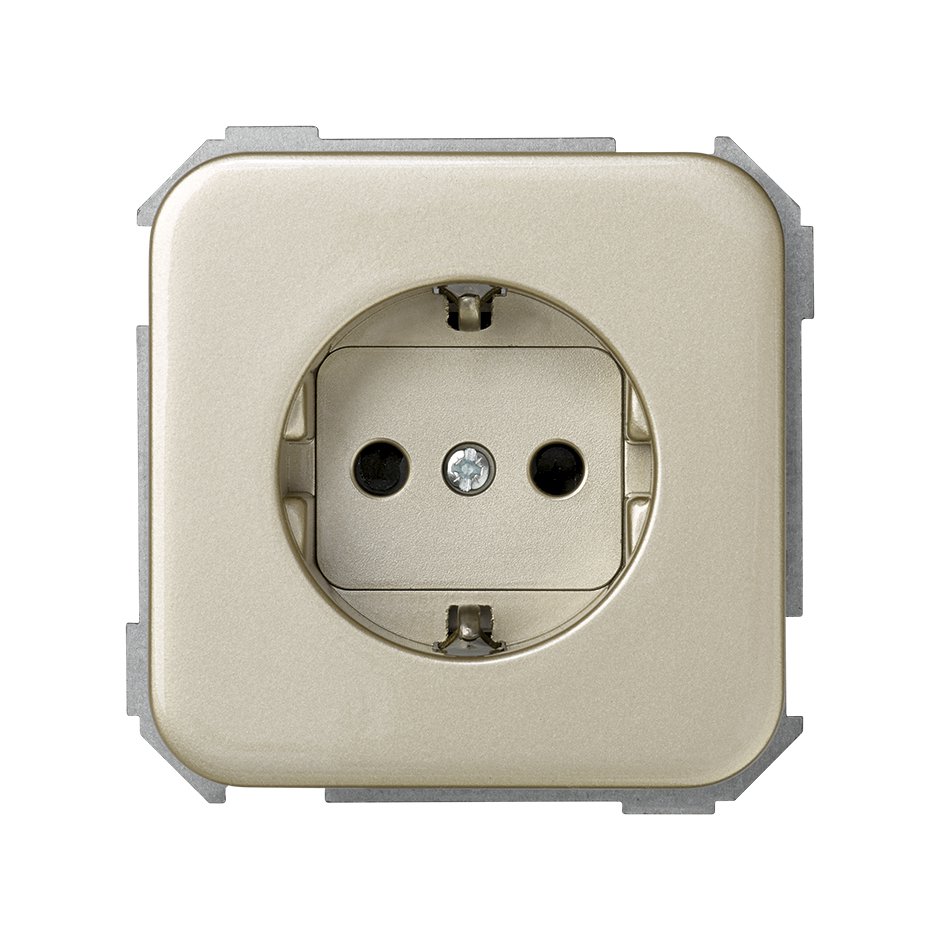

German socket outlet 16A 250V~ Simon 31 champagne front view

German socket outlet 16A 250V~ Simon 31 champagne front view

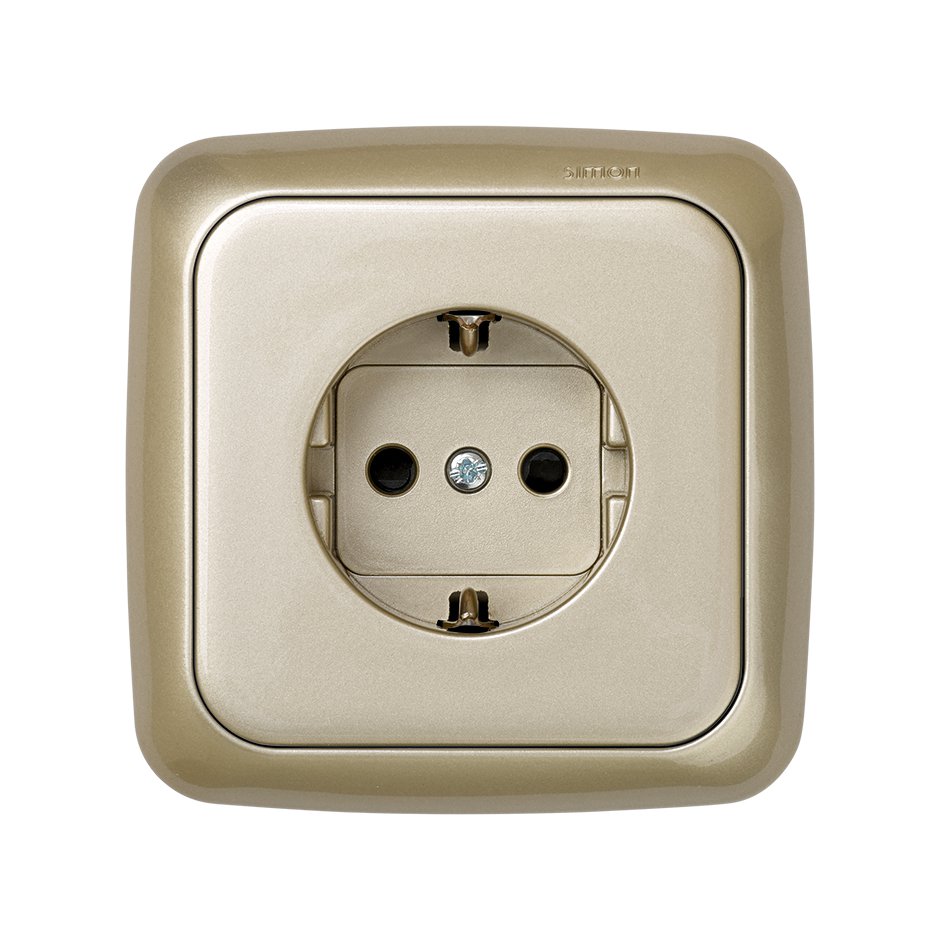

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31464-64

German socket outlet 16A 250V~ with safety device and fast terminal connection champagne Simon 31

Price/Unit
€9.47
While stocks last
Packaging quantity
10 Units

Available downloads

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

Schuko socket outlet with safety device (as the covers include the child protection function) and quick terminal connection, in champagne colour and belonging to the series Simon 31.

This socket-outlet has a current of 16 A and a voltage of 250V, in addition to a operation is by insertion.

It has 2 modules and supports a section of wire 2.5 mm with a stripped 13 mm

Complies with the European standards and regulations UNE 20315-1-1: 2009, UNE 20315-1-2: 2009 and can be installed on surfaces with a temperature located between 5 and 40ºC, approximately, although it ’ s true that can withstand extreme temperatures of -25 to 50ºC, plus or minus.

Its dimensions are 64x65 mm and it is manufactured with metal components with halogen-free insulation and trim metallized thermoplastic.

For a correct maintenance to this realizarle socket-outlet, it will only need to wipe it with a soft and dry cloth, without having to use abrasive cloths or cleaners that contain chlorine in its formula.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    The covers include a child-proof protective feature.

  • Finish

    Champagne

  • Packaging contents

    Socket outlet with cover

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • IP Rating

    IP20

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    13 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Fast

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE 20315-1-1:2009, UNE 20315-1-2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.1 KGM

  • Product gross weight

    0.1 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging gross weight

    0.995 KGM

  • Packaging EAN

    8421053055670
