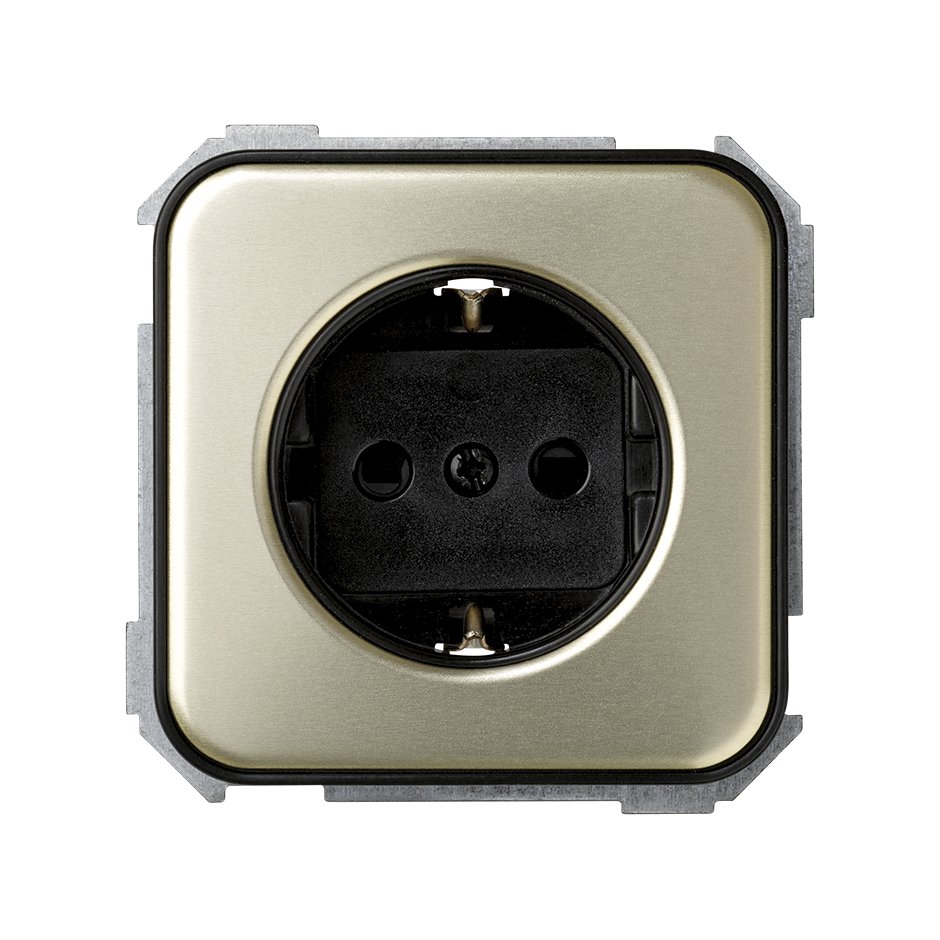

German socket outlet 16A 250V~ Simon 31 decorative brown front view

German socket outlet 16A 250V~ Simon 31 decorative brown front view

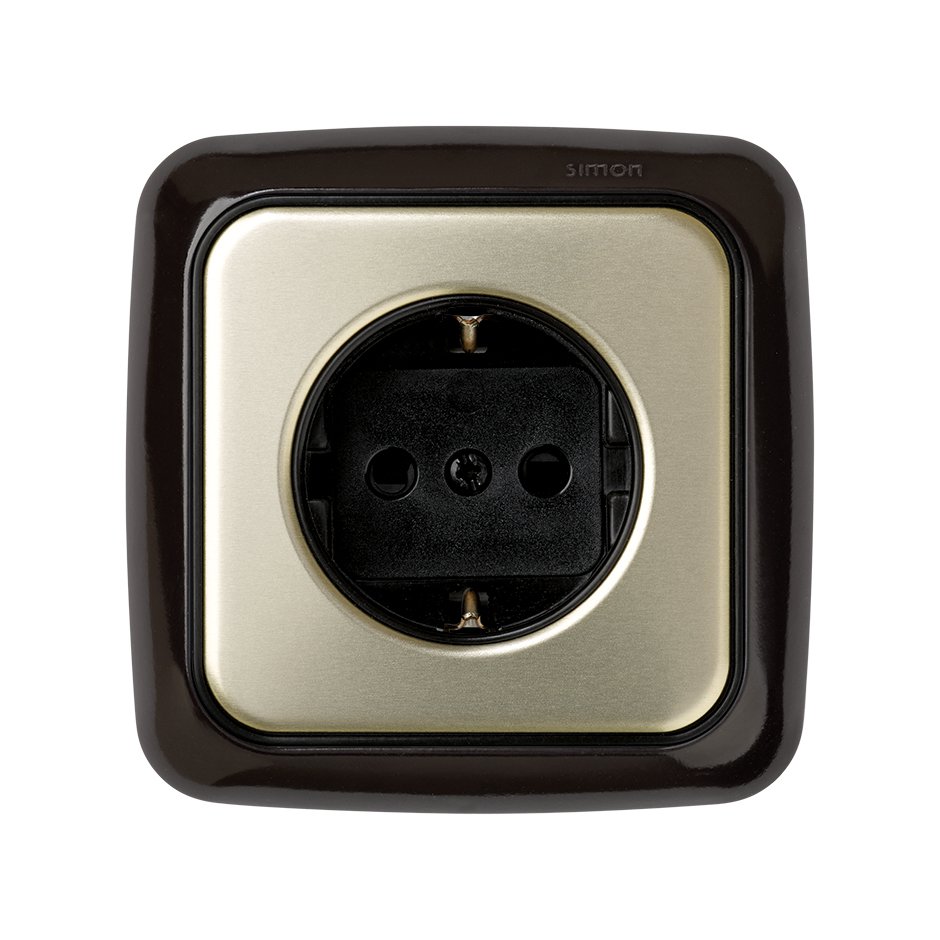

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31432-66

German socket outlet 16A 250V~ with safety device and screw terminal connection decorative brown Simon 31

Price/Unit
€16.04
While stocks last
Packaging quantity
10 Units

Available downloads

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

Chocolate brown Schuko socket outlet from the Simon 31 series. With safety device and screw terminal connection.

Insertion operation and measures64x65 mm. To clean it, you just need a soft, dry cloth without having to use abrasive cloths and / or cleaners containing chlorine, as this socket outlet may become damaged and not operate correctly.

It is made with metal components with halogen-free insulation and thermoplastic trim with metal finish and complies with regulations UNE 20315-1-1:2009 and UNE 20315-1-2:2009.

It can be placed perfectly in places with a temperature of between 5 and 40ºC, although it is capable of withstanding extreme temperatures of -25 to 50ºC, approximately.

This socket outlet supports a cable section of 2.5 mm, with a wire stripping of 13 mm and has 2 modules and 1 element.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    The covers include a child-proof protective feature.

  • Finish

    Decorative brown

  • Packaging contents

    Socket outlet with cover

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    13 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE 20315-1-1:2009, UNE 20315-1-2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.104 KGM

  • Product gross weight

    0.104 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    1.04 KGM

  • Packaging EAN

    8421053055632
