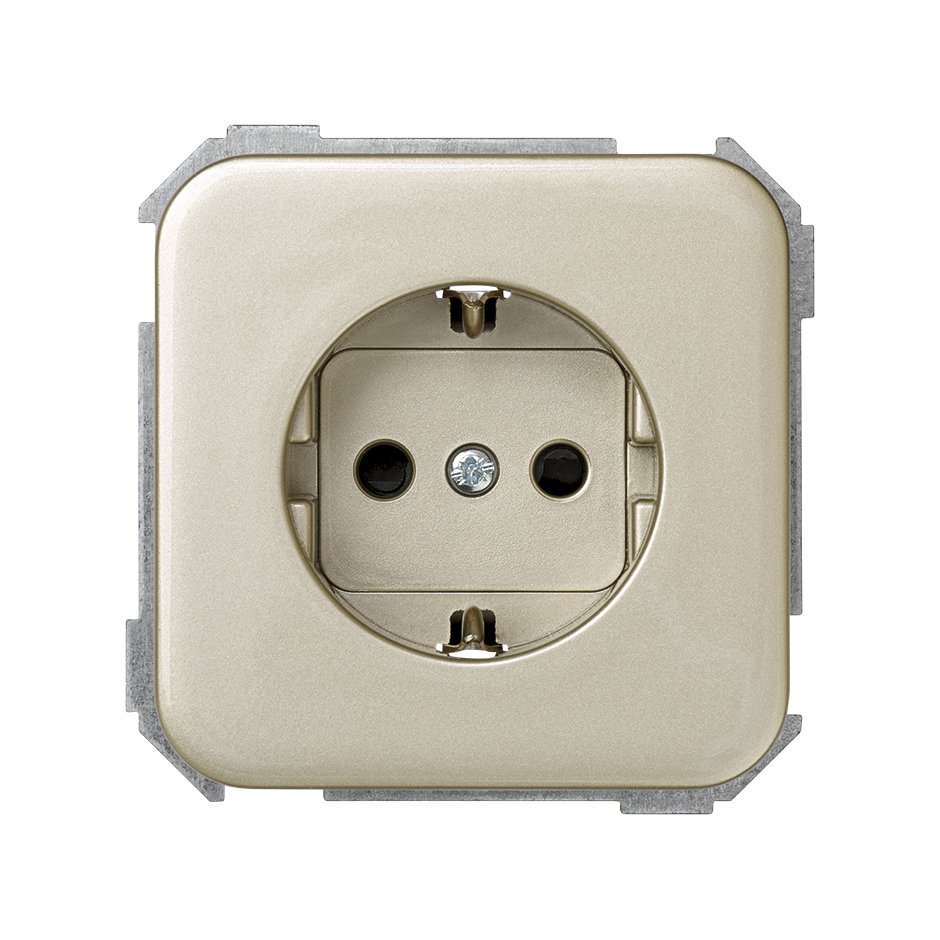

German socket outlet 16A 250V~ Simon 31 champagne front view

German socket outlet 16A 250V~ Simon 31 champagne front view

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31432-64

German socket outlet 16A 250V~ with safety device and screw terminal connection champagne Simon 31

Price/Unit
€10.13
Discontinued
Packaging quantity
10 Units

Available downloads

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

For the plug socket with Schuko format of the Simon 31 series, presents a champagne finish and incorporates a safety device. With a single element in its individual version, with two modules. Its reference is the 31432-64.

It supports a current of up to 16 A and a voltage of 250V~

With a screw rocker operation system and operation is by insertion.

The wire cross-section is 2.5mm and the stripping of wire necessary of x Ø13 mm.

The covers include the child protection function.

It measures 64x65mm.

It is manufactured with several metal components with insulation, halogen-free and with a trim of metallized thermoplastic.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    The covers include a child-proof protective feature.

  • Finish

    Champagne

  • Packaging contents

    Socket outlet with cover

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    13 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE 20315-1-1:2009, UNE 20315-1-2:2009

Logistics Information
  • Product volume

    3026595 MMQ

  • Product net weight

    0.103 KGM

  • Product gross weight

    0.103 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    1.03 KGM

  • Packaging gross weight

    1.03 KGM

  • Packaging EAN

    8421053055625
