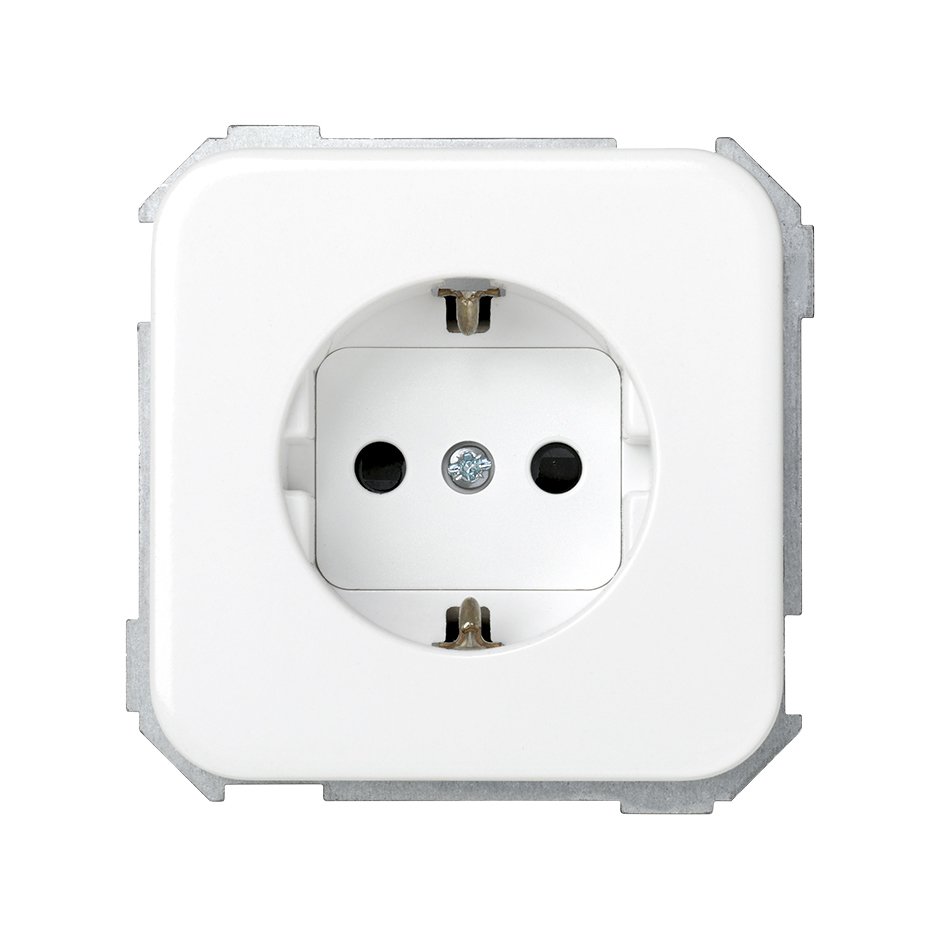

German socket outlet 16A 250V~ Simon 31 white front view

German socket outlet 16A 250V~ Simon 31 white front view

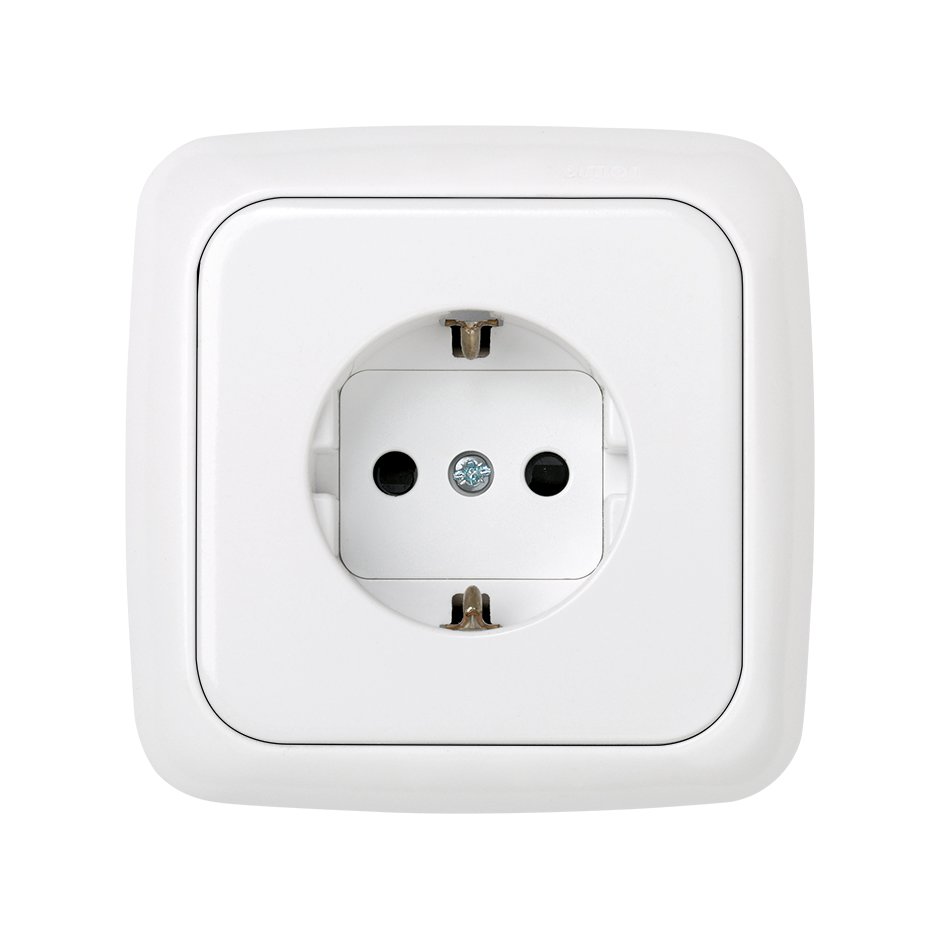

This image represents the combined solution of different references

This image represents the combined solution of different references

Ref
31432-60

German socket outlet 16A 250V~ with safety device and screw terminal connection white Simon 31

Price/Unit
€9.32
Packaging quantity
10 Units

Available downloads

Outstanding Features
Series
Simon 31
Series Compatibility

Simon 31

Product Information

Schuko socket outlet white in colour, with safety device and screw terminal connection of the series Simon 31.

Its voltage is 250 and has a current of 16 A and works by insertion.

The covers of this socket-outlet include the child protection function and has 2 modules and 1 element.

Its dimensions are 64x65mm and supports a section of wire 2.5 mm with a stripped x Ø13 mm.

It works, perfectly in rooms with a temperature located between 5 and 40ºC, although it can withstand extreme temperatures of -25 to 50ºC, approximately.

It is made of metal components with halogen-free thermoplastic insulation and thermoset trim and in compliance with the regulations UNE 20315-1-1: 2009, UNE 20315-1-2: 2009.

Its maintenance is quite simple, as it will only need a soft cloth slightly moistened in soapy water, without resorting to never use cloths or abrasive cleaners containing chlorine.

Basic information
  • Compatibility

    Simon 31 frames

  • Remarks

    The covers include a child-proof protective feature.

  • Finish

    White

  • Packaging contents

    Socket outlet with cover

Technical information
  • Market available

    CE

  • Cable section admitted (mm)

    2,5 mm

  • Format

    German socket outlet

  • Intensity (A)

    16 A

  • IP Rating

    IP21

  • Number of possible elements

    1 element

  • Operating temperature range (ºC)

    5 - 40 ºC

  • Storage temperature range (ºC)

    -25 - 50 ºC

  • Type of mechanism

    Insertion

  • Version

    Single

  • Voltage (V~)

    250 V~

Installation and maintenance
  • Cable stripping necessary (mm)

    13 mm

  • Installable in flush mount junction box

    Universal

  • Installation type

    Suitable for surface and flush mounting

  • Type of terminal connection

    Screw

  • Maintenance

    Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation
  • Regulations

    UNE 20315-1-1:2009, UNE 20315-1-2:2009

Logistics Information
  • Product net weight

    0.103 KGM

  • Product gross weight

    0.103 KGM

  • Packaging quantity

    10

  • Packaging height

    83 MMT

  • Packaging width

    165 MMT

  • Packaging length

    221 MMT

  • Packaging volume

    3026595 MMQ

  • Packaging net weight

    1.03 KGM

  • Packaging gross weight

    1.03 KGM

  • Packaging EAN

    8421053055588
