Set of 2 switches 10AX 250V~ with fast terminal connection system champagne Simon 31

REFERENCE NO.: 31398-34

R.P.: Price on request

PACKAGING: 10 Units

Variables de unidades de obras ---> -false-false

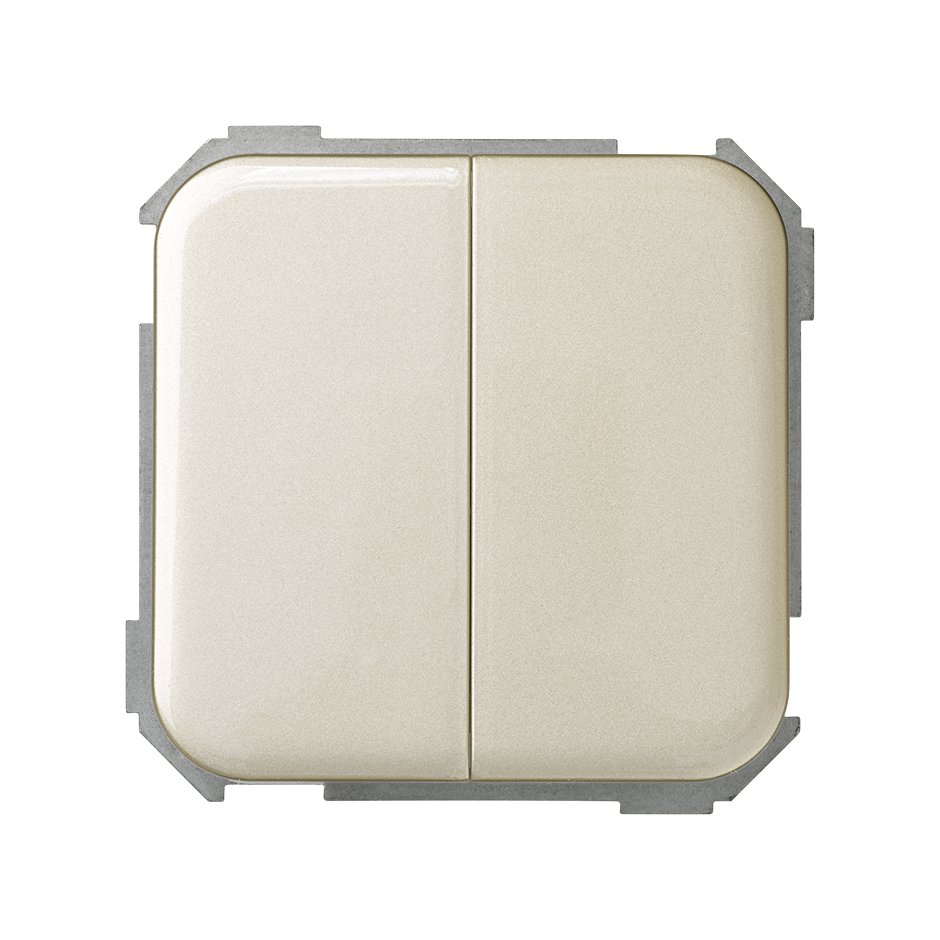

Set 2 switches 10AX 250V~ Simon 31 champagne front view

This image represents the combination of different references

Set 2 switches 10AX 250V~ Simon 31 champagne packaging

SERIES: Simon 31 INTENSITY: 10 AX TYPE OF TERMINAL CONNECTION: Fast TYPE OF MECHANISM: Pivoting FINISH: Champagne

Product description

Group of 2 switches in champagne colour and belonging to the series Simon 31. It offers a current of 10 AX and a voltage of 250V, quick terminal connection and its operation is tilting type. This group of 2 switches is available in 5 finishes and is always recommended to choose the frame in the same colour as the rocker selected. Its dimensions are 64 x 65 mm and supports a wire cross section of 1.5 to 2.5 mm, with a stripping of 11 mm and can be position, place in rooms with a temperature of between 5 and 40ºC, reaching to withstand extreme temperatures of -25 to 50ºC, approximately. Complies with the European standards and regulations UNE -s 60669-1: 2002 + A1: 2003 + A2: 2009 and is manufactured with metal components with halogen-free insulation and trim metallized thermoplastic. Its cleaning is quite simple to perform as it will only need to use a soft and dry cloth, without resorting to never use cloths or abrasive cleaners containing chlorine.

BASIC INFORMATION

Finish: Champagne

Indicator function: No

No. of possible elements: 1 element

Claw: Simon 27

Compatibility: Simon 31 frames

Packaging contents: Mechanism with rocker

Remarks: Available in 5 finishes. It is recommended to choose a frame the same colour as the selected rocker.

Series: Simon 31

Version: Double

Voltage: 250 V~

Type of terminal connection: Fast

Type of mechanism: Pivoting

TECHNICAL INFORMATION

Cable section admitted: From 1.5 to 2.5 mm

Cable stripping necessary: 11 mm

IP rating: 21

RAL: Does not have

Manufacturing material: Metal components with halogen-free insulation and metalised thermoplastic trim

Type of product: Standard

Market available: CE

REGULATIONS

Regulations: UNE-EN 60669-1:2002 + A1:2003 + A2:2009

INSTALLATION AND MAINTENANCE

Installation type: Suitable for surface and flush mounting

Installable in flush mount junction box: Universal

Operating temperature range: 5 to 40 ºC

Storage temperature range: -25 to 50 ºC

Maintenance: Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

LOGISTIC DATA

Available in display box: Yes

Packaging quantity: 10

Box measurement unit: MM

Height: 83.000

Wide: 165.000

Depth: 221.000

Box volume: 3026595.000

Box volume measurement unit: MMQ

Net weight of box: 0.940

Unit weight of box: KGM

EAN code: 8421053008836

Available in multiple box: No

Available on pallet: No
